CONNECT SERIES SERVICE MANUAL
3
ENGLISH

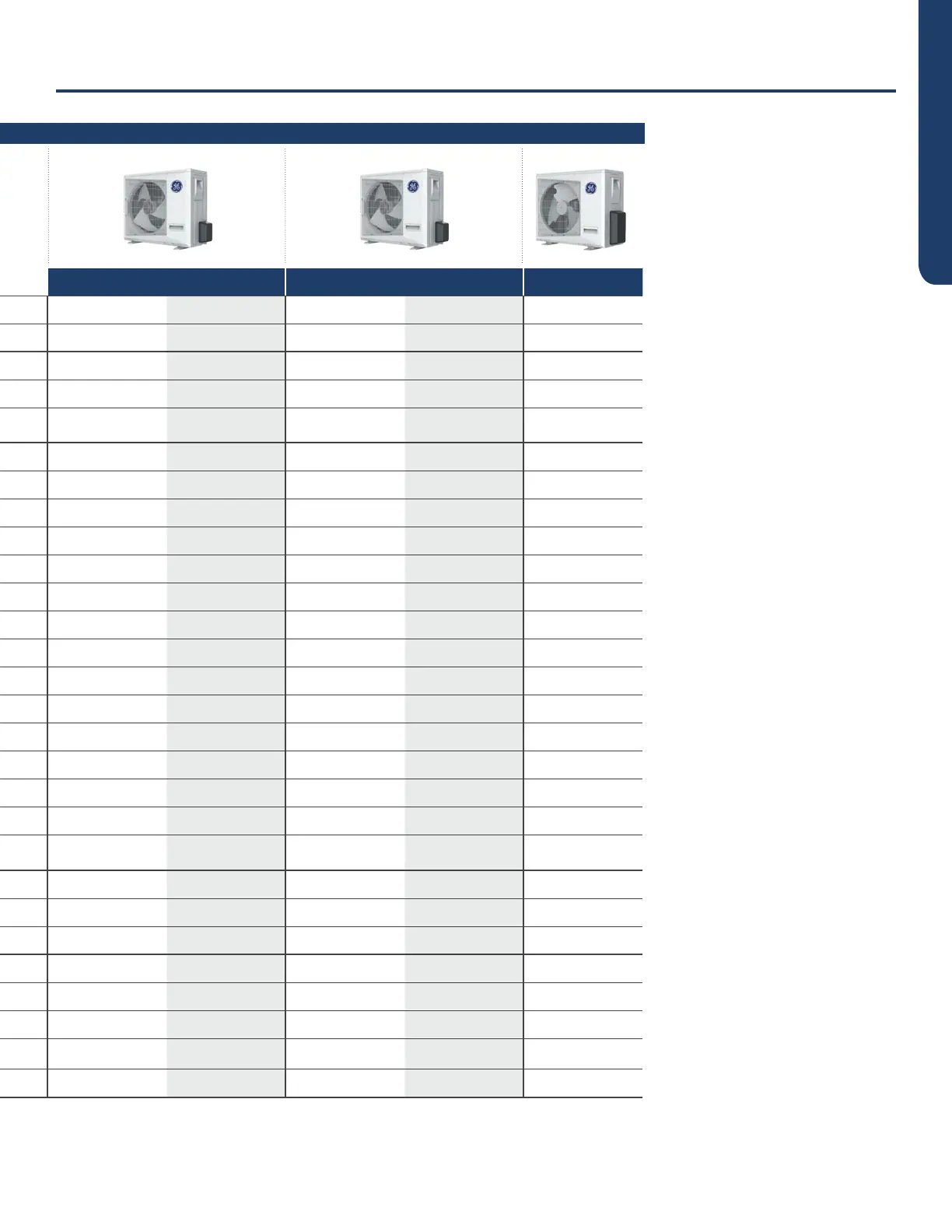

Specifications
12k* 18k** 24k** 30k** 36k** 48k**
Outdoor Unit UUC112WCDA UUC118WCDA UUC118WCDBA UUC124WCDA UUC124WCDBA UUC130WCDA UUC130WCDBA UUC136WCDA UUC136WCDBA UUC148WCDA
UPC 0-84691-85479-1 0-84691-85480-7 0-84691-86338-0 0-84691-85481-4 0-84691-86339-7 0-84691-85483-8 0-84691-86340-3 0-84691-85484-5 0-84691-86341-0 0-84691-85486-9
Cooling
Rated Capacity Btu/hr 12,000 17,500 18,000 23,500 24,000 30,000 30,000 34,000 35,000 46,000
SEER/EER 14/12 14.5/12 14.2/12.2 14.5/12 14.5/12.2 14.5/12 14.5/12.2 14.5/12 14.2/12.2 14/11.7
Operating Range 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C) 50~115°F (10~46°C)
Outdoor
Unit
Voltage/Cycle/Phase 115/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
Maximum Fuse Size A 15 15 15 15 15 20 20 25 25 40
Minimum Circuit Amp A 11 10 10 12 11.4 14 14 16 16 26
Outdoor Noise Level dB 52 55 55 58 59 58 59 58 59 60
Fan Speed RPM 820 890 890 880 880 880 880 890 900 900
Outdoor Airflow CFM 1220 2012 2012 2492 2492 2324 2324 2300 2300 2600
Compressor Type Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Scroll
TXV Bleed Bleed Bleed Bleed Bleed Bleed Bleed Bleed Bleed Bleed
Dimension: H in. (mm) 21.9 (555) 27.6 (702) 27.6 (702) 31.9 (810) 31.9 (810) 31.9 (810) 31.9 (810) 31.9 (810) 31.9 (810) 34.25 (870)
Dimension: W in. (mm) 33.5 (850) 36.0 (914) 36.0 (914) 40.0 (1015) 40 (1015) 40.0 (1015) 40 (1015) 40.0 (1015) 40 (1015) 43.31 (1100)
Dimension: D in. (mm) 13.6 (345) 15.0 (382) 15.0 (382) 17.5 (445) 17.5 (445) 17.5 (445) 17.5 (445) 17.5 (445) 17.5 (445) 20.79 (528)
Ship Dimension: H in. (mm) 24.5 (622) 30.8 (782) 30.8 (782) 38.4 (975) 38.4 (975) 38.4 (975) 38.4 (975) 38.4 (975) 38.4 (975) 40.6 (1030)
Ship Dimension: W in. (mm) 36.0 (915) 38.4 (975) 38.4 (975) 42.3 (1075) 42.3 (1075) 42.3 (1075) 42.3 (1075) 42.3 (1075) 42.3 (1075) 45.0 (1145)
Ship Dimension: D in. (mm) 15.0 (380) 16.5 (420) 16.5 (420) 19.5 (495) 19.5 (495) 19.5 (495) 19.5 (495) 19.5 (495) 19.5 (495) 21.5 (545)
Weight (Net/Gross)
lbs (kg)
86/90.4
(39/41)
106/117
(48/53)
106/117
(48/53)
141/152
(64/69)
141/152
(64/69)
143/154
(65/70)
143/154
(65/70)
145/156
(66/71)
145/156
(66/71)
218/238
(99/108)
AHRI
Matching
Indoor Coil
Aspen Model
C(A,C,E)24A24+TDR C(A,C,E)24B44+TDR - C(A,C,E)24B44+TDR - C(A,C,E)36B44+TDR - C(A,C,E)48C34+TDR - C(A,C,E)48C34+TDR
ADP Model
- - HE81(6,9)36+TDR - HE81(6,9)36+TDR - HE81(6,9)36+TDR - HE35(6,9)48+TDR -
CFM with rated coils 445 620 650 727 780 1050 1080 1025 1150 1325
Refrigerant
Lines
Liquid | Suction O.D. in 1/4 | 1/2 1/4 | 1/2 1/4 | 1/2 3/8 | 5/8 3/8 | 5/8 3/8 | 3/4 3/8 | 3/4 3/8 | 3/4 3/8 | 3/4 3/8 | 3/4
Refrigerant R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Factory Charge lbs 4.2 4.7 5.1 6.1 6.3 7.3 7.5 7. 3 7.7 8.8
Maximum Line Length
Ft / m
82/25 82/25 82/25 82/25 82/25 82/25 82/25 82/25 82/25 98/30
Maximum Height Ft / m 33/10 33/10 33/10 33/10 33/10 33/10 33/10 33/10 33/10 50/15
208-230V
