49-2000894 Rev. 3 11
Installation Preparation
PLAN THE INSTALLATION
CAUTION
To reduce risk of fire and to
properly exhaust air, be sure to duct the air
outside – Do not vent exhaust air into spaces
within walls or ceilings or into attics, crawl
spaces, or garages.
WARNING
PERSONAL INJURY HAZARD
It is recommended that 2 people are used to
install the range hood. Failure to properly
lift rangehood could result in damage to the
product or personal injury.
NOTE: This rangehood can be installed as either
ducted or recirculation. In a ducted application,
this rangehood can be vented through the wall
or ceiling. When installed for recirculation, the
rangehood vents back into the room.
REMOVE THE PACKAGING
CAUTION
Wear gloves to protect against
sharp edges.
Ŷ Remove the hardware bag, literature package
and other boxed parts.
Ŷ Remove and properly discard the protective
plastic wrapping and other packaging materials.

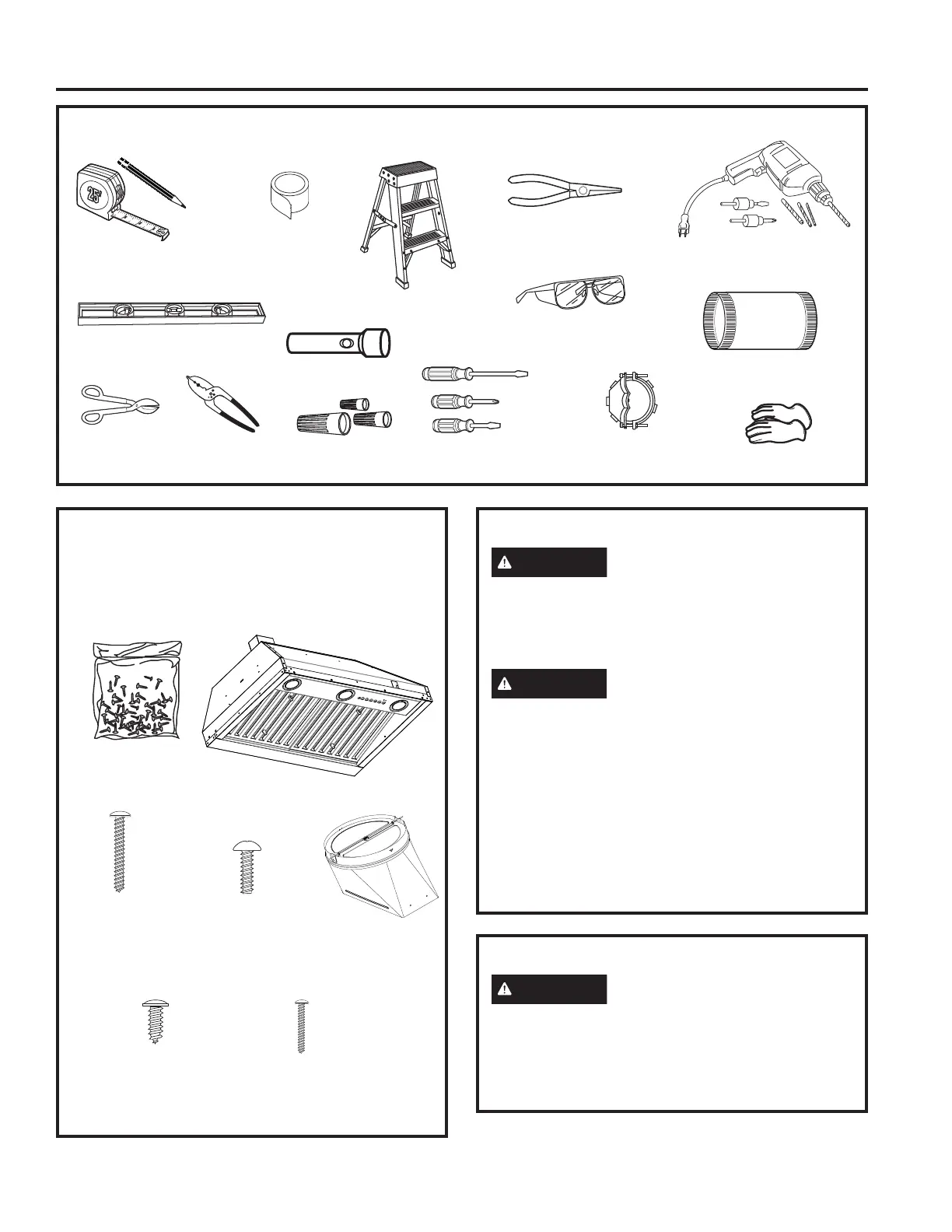

TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED)
Pencil and tape measure
Step ladder
Phillips and flat-blade
screwdrivers
Level
Safety glasses
8" ducting and
caps as needed
Aluminized
duct tape
Electric drill and
appropriate bits
Gloves
Flashlight
Needle-nose pliers
Tin snips
Wire cutter/
stripper
INSTALLATION PREPARATION
Strain relief for
junction box
UL listed wire nuts
PARTS PROVIDED
Locate the parts packed with the hood.
NOTE: The hardware bag may contain extra pieces
to accommodate a variety of installation methods
for various models.
Damper
Assembly
Hardware Bag
Phillips Head
Wood Screws
3/16" x 1-1/2"
(QTY: 4)
Philips Head
Machine Screw
1/8" X 3/8"
(QTY: 16)
Phillips Head
Wood Screws
1/8" X 3/8" (QTY: 4)
A
B
D
Hood
Phillips Head
Wood Screws
3/16" x 1"
(QTY: 8)
L
1" = 2.5 cm
