29-6326 11
INSTALLATION PREPARATION
Installation Preparation
PLAN THE INSTALLATION
CAUTION
To reduce risk of fire and to
properly exhaust air, be sure to duct the air outside.
Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces, or garages.
PARTS SUPPLIED FOR INSTALLATION
1 Hardware Package
1 Literature Package
Recirculation Duct (for recirculation install only)
Charcoal filters (recirculation mode)
PARTS NEEDED FOR INSTALLATION
1 Strain Relief
1 Wall or Roof Cap (for ducted venting only)
All Metal Ductwork (for ducted venting only)
WARNING
PERSONAL INJURY HAZARD
Because of the weight and size of the rangehood
canopy. It is recommended that 2 people are used
to install the range hood. Failure to properly lift
rangehood could result in damage to the product or
personal injury.
NOTE: This rangehood can be installed as either
ducted or recirculation. In a ducted application,
this rangehood can be vented through the wall
or ceiling. When installed for recirculation, the
rangehood vents out the sides of the duct cover.
NOTE: Before making any cuts or holes for
installation, determine which venting method will be
used and carefully calculate all measurements.

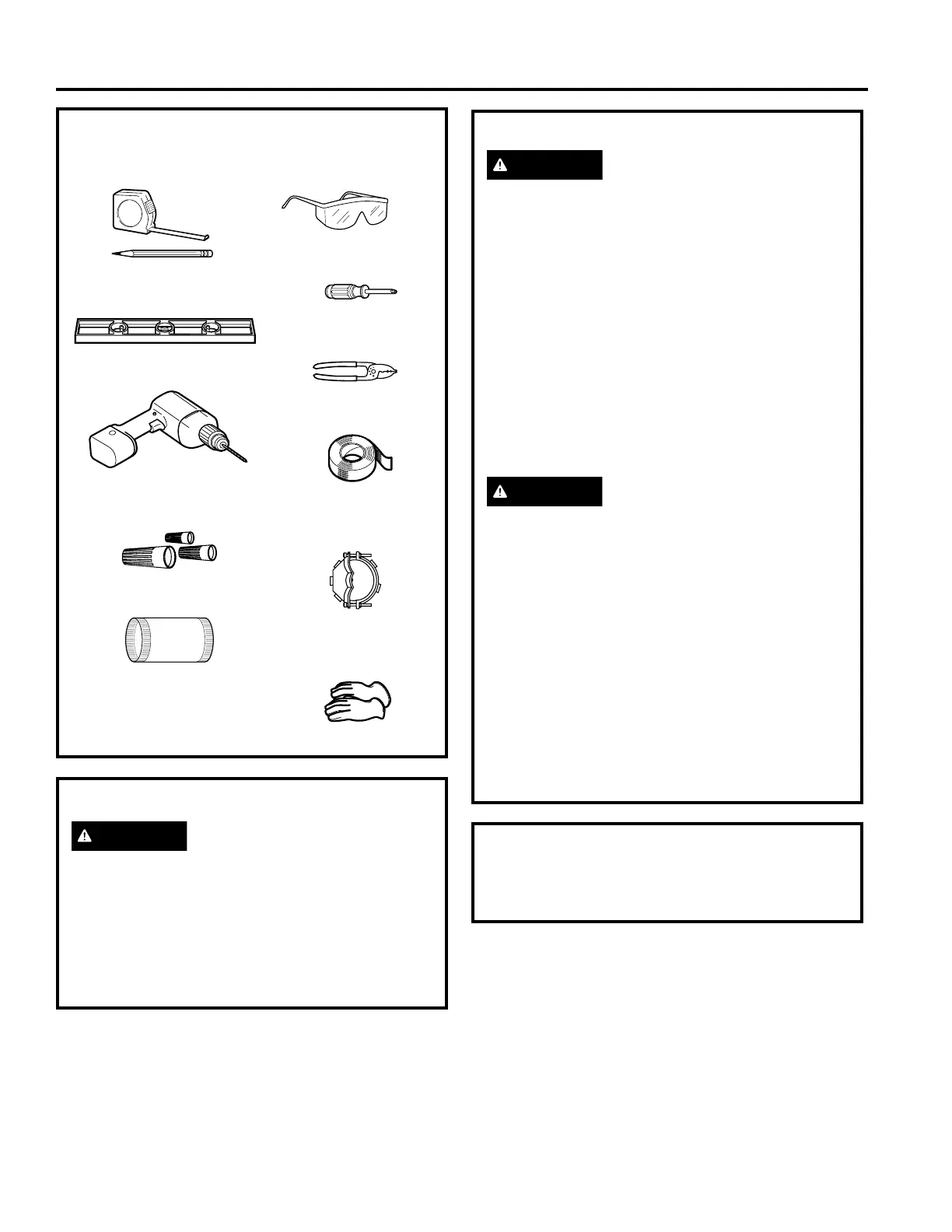

TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
REMOVE THE PACKAGING
CAUTION
Wear gloves to protect against
sharp edges.
Remove the duct covers.
Remove the hardware bag, literature package
and other boxed parts.
Remove and properly discard the protective
plastic wrapping and other packaging materials.
Wire cutter/stripper
Level
Aluminized
duct tape
Safety glasses
Phillips screwdriver
Strain relief for
junction box
Strain Relief I
Electric drill with #2 Phillips
and 1/8" drill bits
UL listed wire nuts
8" round duct
(length will vary)
Wire Nuts
Pencil and tape measure
Gloves
USE ONLY WITH RANGE HOOD CORD
CONNECTION KITS THAT HAVE BEEN
INVESTIGATED AND FOUND ACCEPTABLE FOR
USE WITH THIS MODEL RANGE HOOD.
1" = 2.5 cm
