GE Vivid E95 Technical Publication

Electrical safety tests
Ultrasound System – Common Service Information 4-43
Direction 5444964-100 English Rev. 5
Mains on applied part (continued)

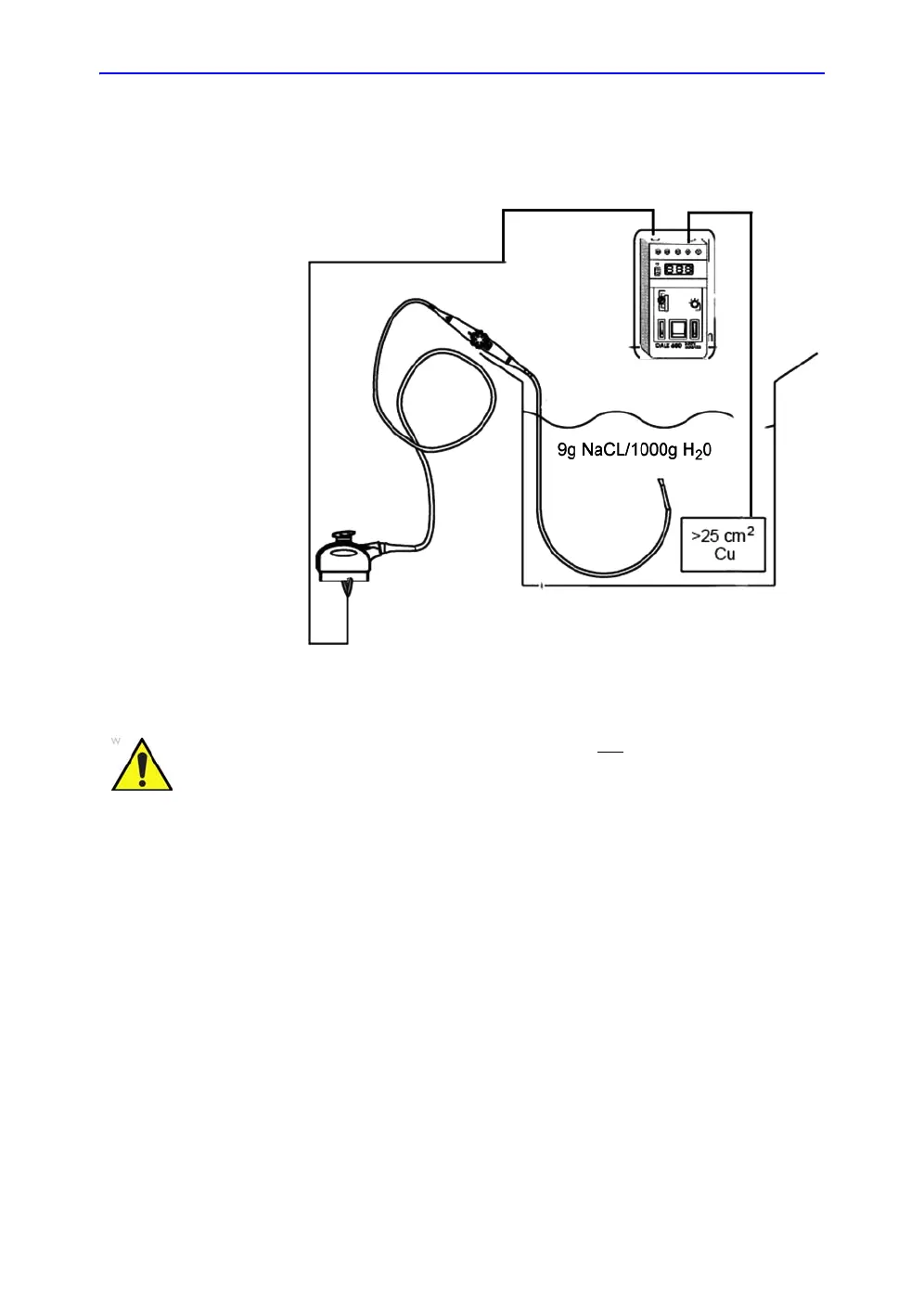

A typical test setup for TEE probes could be as indicated below:
Figure 4-6. TEE probe leakage isolation (sink) current test
NOTE: Where applicable, a typical test setup of non-TEE Probes can
be as illustrated in: Figure 4-4 on page 4-36.
The test passes when the reading measure less than the values
in:
• Table 4-8 on page 4-21.
WARNING
The handle of the TEE probes must not
be immersed.
For immersion levels, please refer to the User Manual.

GE Vivid E95 Specifications

General

Type	Cardiovascular Ultrasound System
Transducers	2D, 3D, 4D
Display	22-inch high-resolution OLED monitor
Portability	Cart-based
Imaging Modes	2D, 3D, 4D, Color Doppler
Advanced Features	cSound Architecture
Connectivity	DICOM, USB, Ethernet
Applications	Cardiology, Vascular, Abdominal
