GE HEALTHCARE - KRETZTECHNIK VOLUSON® 730EXPERT (BT03)
D
IRECTION 105899, REVISION 3 DRAFT (APRIL 29, 2008) SERVICE MANUAL
5-2 Section 5-2 - General Information
Section 5-2
General Information
Voluson® 730Expert is a digital beamforming curved-, linear- and phased array ultrasound imaging
system. It has provisions for analog input sources like ECG and Phono.
A CW-Doppler probe may also be connected and used.
The system can be used for:
• 2D Mode Imaging and additional Operating Modes (B-Flow, XTD-View)
• Color Doppler Imaging (CFM, PD and TD)
• M Mode Imaging
• Doppler (PW, CW)
• 3D Mode and Real Time 4D Imaging
• Different combinations of the above modes

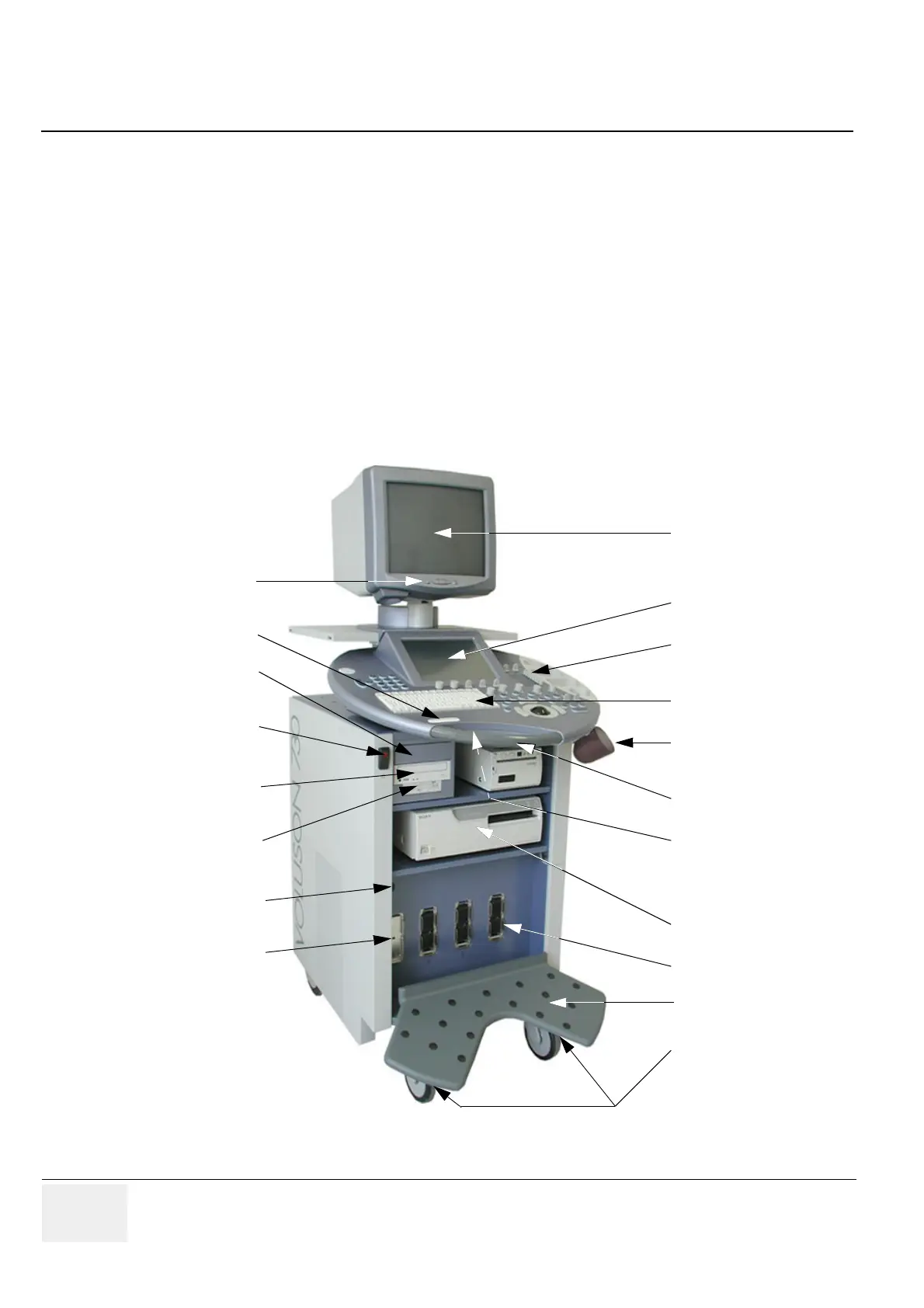

Figure 5-1 Voluson® 730Expert Major Components
Monitor
Touch Panel/Display
TGC - Slider Controls
Monitor Controls
Control Console
Front Grip
Lever to rotate and lock
the Control Console
(mounted at the front
below the Console)
Probe Connectors
Foot rest
Brakes to block the
front wheels
(under the foot rest)
Probe storage Connector
(not active for scanning)
Name Plate
Place for ECG Module
Stand By switch
3.5” MOD Drive (optional)
DVD/CD+(R)W Drive
Color Printer
CW Connector
Gel Holder
