Chapter 5 - Components and Functions (Theory) 5-9

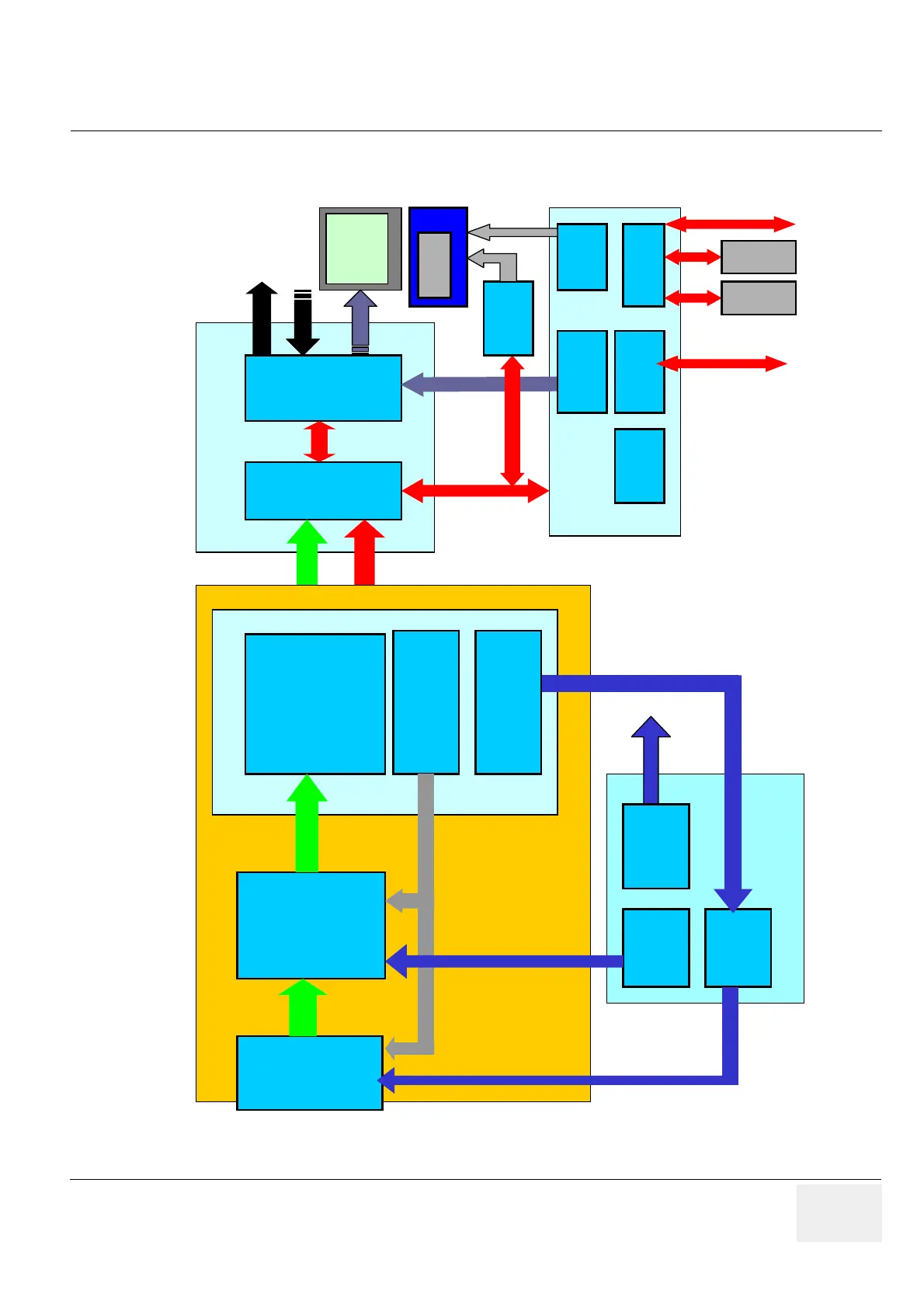

5-2-3 Block diagram Voluson® 730Expert
Figure 5-4 Top Level Architecture
PCI to
Local I/F
DMA
IPC–Pentium 4
3.06 GHz
768 MB
PCI 32 Bit /
33 MHz
CRT
Monitor
15”
Video
Mgmt
Dig. VGA
Out
USB 2.0
HDD
80 GB
DVD
+RW
MO
Drv
LAN 10/100
MBit
AGP
VGA
RS232
Aux. VGA
User
I/F
PS Unit
Probe
MUX
and
Connectors
Board
CPU
HVPS
Motor
Power
Drive
LVPS
Front End
Board CKV
Board CRS
RFI
Beamformer
Board CPR
System Control
Control
Motor Control
To Next Page
