9-10 Section 9-7 - Disk Drives (GEM)
Section 9-7
Disk Drives (GEM)

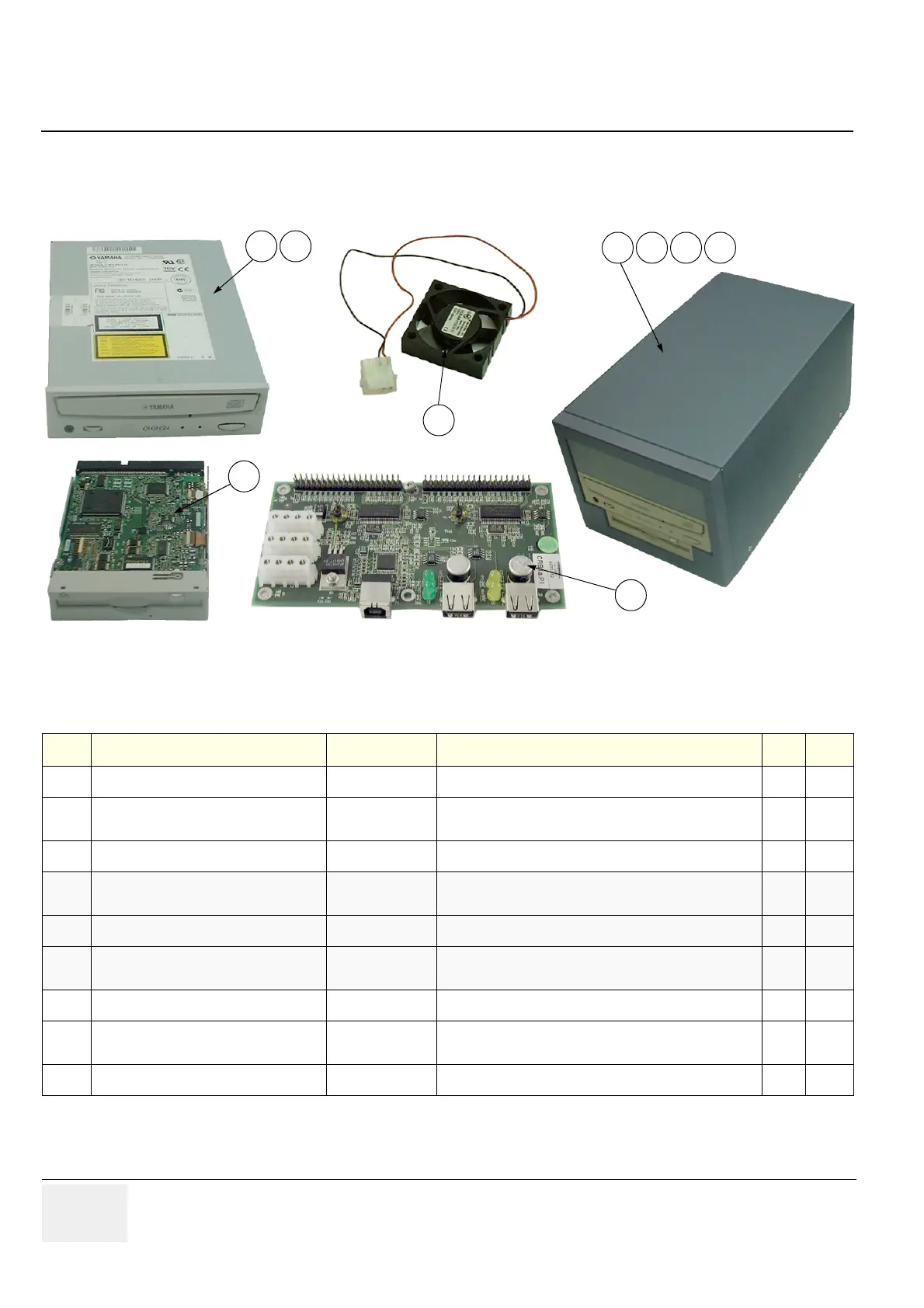

Figure 9-6 Disk Drives (GEM)
Table 9-7 Disk Drives (GEM)
Item Part Name Part Number Description Qty FRU
301
Disk Drive IDE DVD+(R)W
KTZ207256 DVD+(R)W Writer internal (no own cabinet) 1 1
302
Disk Drive IDE DVD+(R)W
KTZ207257
DVD+(R)W Writer internal (no own cabinet);
can replace KTZ207256; (SW3.1.4 or higher is required)
11
303
Fan axial 62 x 62 x 14 mm
KTZ207602 Fan for Air-Cooling of GEM (SCSI-Drive-Module) 1 1
304
Disk Drive IDE MOD 1.3GB internal
KTZ207269
Magneto-Optical-Drive 1.3GB internal
(no own cabinet)
1 1
305
GEM10-10A MO-Drive + DVD+(R)W
KTZ195887 MO-Drive and DVD+(R)W 1 2
306
GEM11-11B MO-Drive + DVD+(R)W
KTZ196000
MO-Drive and DVD+(R)W; can replace GEM10 -
KTZ195887; (SW3.1.4 or higher is required)
1 2
307
GEM 20A DVD+(R)W
KTZ195962 DVD+(R)W (without MO-Drive) 1 2
308
GEM 21-21B DVD+(R)W
KTZ196001
DVD+(R)W (without MO-Drive); can replace GEM20 -
KTZ195962; (SW3.1.4 or higher is required)
12
309
CRB1c.P1 USB to IDE Converter Board
KTZ195891 CRB1c.P1 USB to IDE Converter Board 1 1
301 302
303
304
305 306 307 308
309
