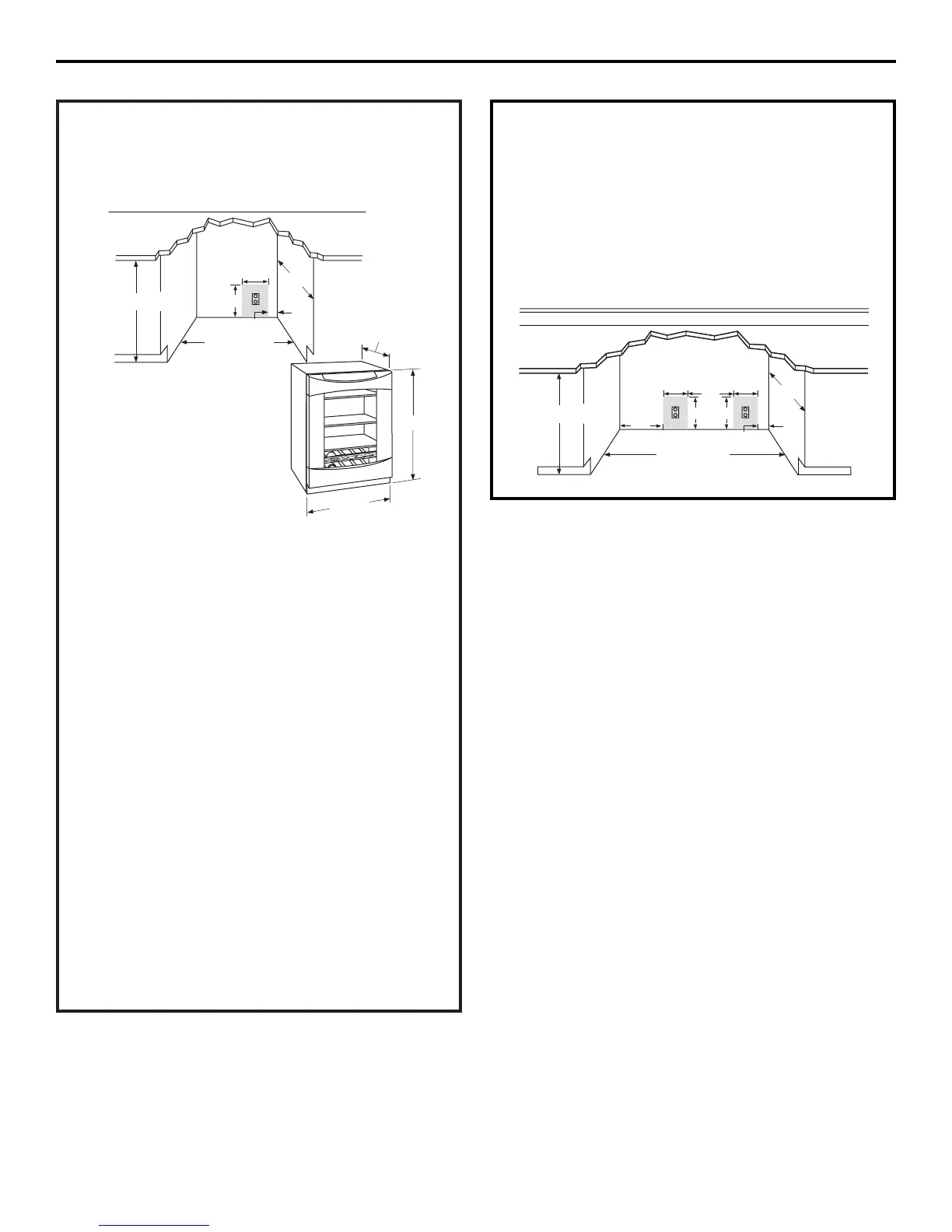

THE INSTALLATION SPACE
The cutout depth should be 24″
The cutout dimensions shown allow for a full door swing and
access to the pull-out racks when installed as a built-in in
standard 24″ deep cabinets.
• The door should protrude 2-1/4″ beyond the surrounding
cabinets. For easy reference, the back edge of the pocket
handle should protrude a minimum of 5/8″ beyond the
front edge of the countertop.
• If installing between frameless cabinets, a 1/2″ wide
filler strip or side panel may be needed on hinge side.
The filler strip will act as a spacer between the case and
adjacent cabinet door swing. The width of the opening
must include the filler panels. NOTE: The door should
protrude 2-1/4″ beyond the surrounding cabinets.
• The wine chiller and beverage center can be installed
freestanding.
Additional Specifications
• A 120 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
3-prong electrical receptacle recessed into the back
wall as shown. Electrical must be located on rear wall
as shown. NOTE: GFI (ground fault interrupter) is not
recommended.
Installation Instructions
9
Product dimensions:
Height: 34-1/2″ (876 mm)
Width: 23-3/4″ (603 mm)
Depth: 25-1/2″ (647 mm)
Cut-out dimensions:
Height: 34-1/2–35″ (876–889 mm)
Width: 24″ (610 mm) minimum
Depth: 24″ (610 mm) minimum
The wine chiller and beverage center can be a free-standing
model or it can be built in using the cut-out dimensions
below.
Increase storage capacity by installing two beverage centers
or wine chillers together. Or, for a complete refreshment
center, install any two of these units together.
• A side-by-side installation requires at least a 47-1/2″ wide
opening. No trim kits required.
• Products must operate from separate, properly grounded
receptacles.
