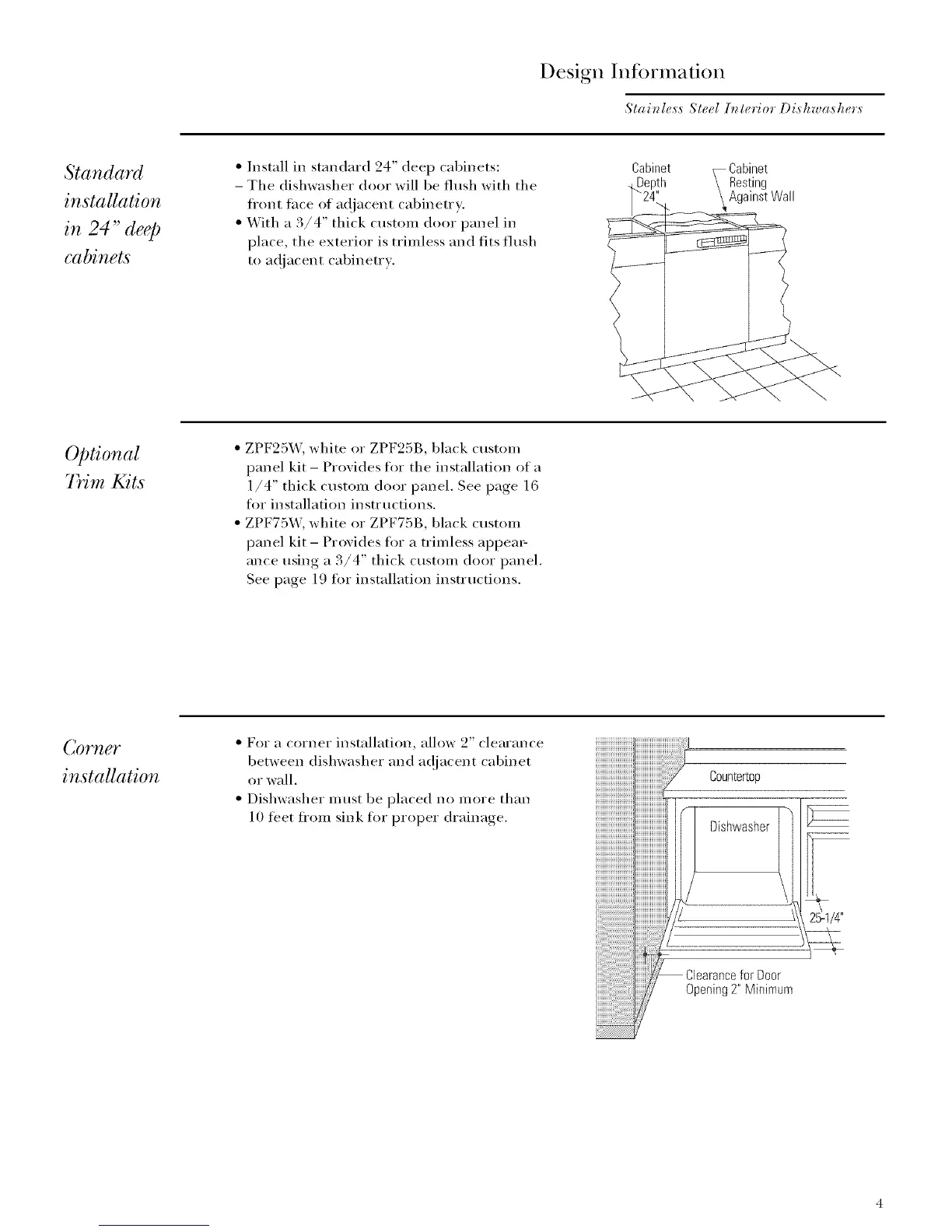

Design Inff)rmation
SlaDde,s,_ Sled l_Herior Di,_hwa,_her,_
Standard
installation
in 24" de@
cabinets
• Install in standard 24" deep cabinets:
- The dishwasher door will be flush with the
front thce of ac!jacent cabinetry.
• With a 3/4" thick custon_ door panel in
place, the exterior is trimless and fits flush
to a(!jacent cabinetry.
Cabinet
Resting
AgainstWall
01btional
7_im Kits
• ZPF25_V, white or ZPF25B, black custom
panel kit - Provides flw the installation of a
1/4" thick custom door panel, See page 16
flw installation instructions.
• ZPF75_. white or ZPF75B, black custom
panel kit - Provides flw a trimless appem_
mace using a 3/4" thick custom door panel.
See page 19 for installation instructions.
COrTler
installation
• For a corner installation, allow 2" clearai'Jce
between dishwasher and ac!jacent cabinet
or wall.
• Dishwasher nltlst be placed no more than
10 feet fl'om sink fl)i" proper drainage.
Countertop
Dishwasher
Door
Opening2" Minimum
