28
GPF475 Trim Kit
3/4" Custom Panels

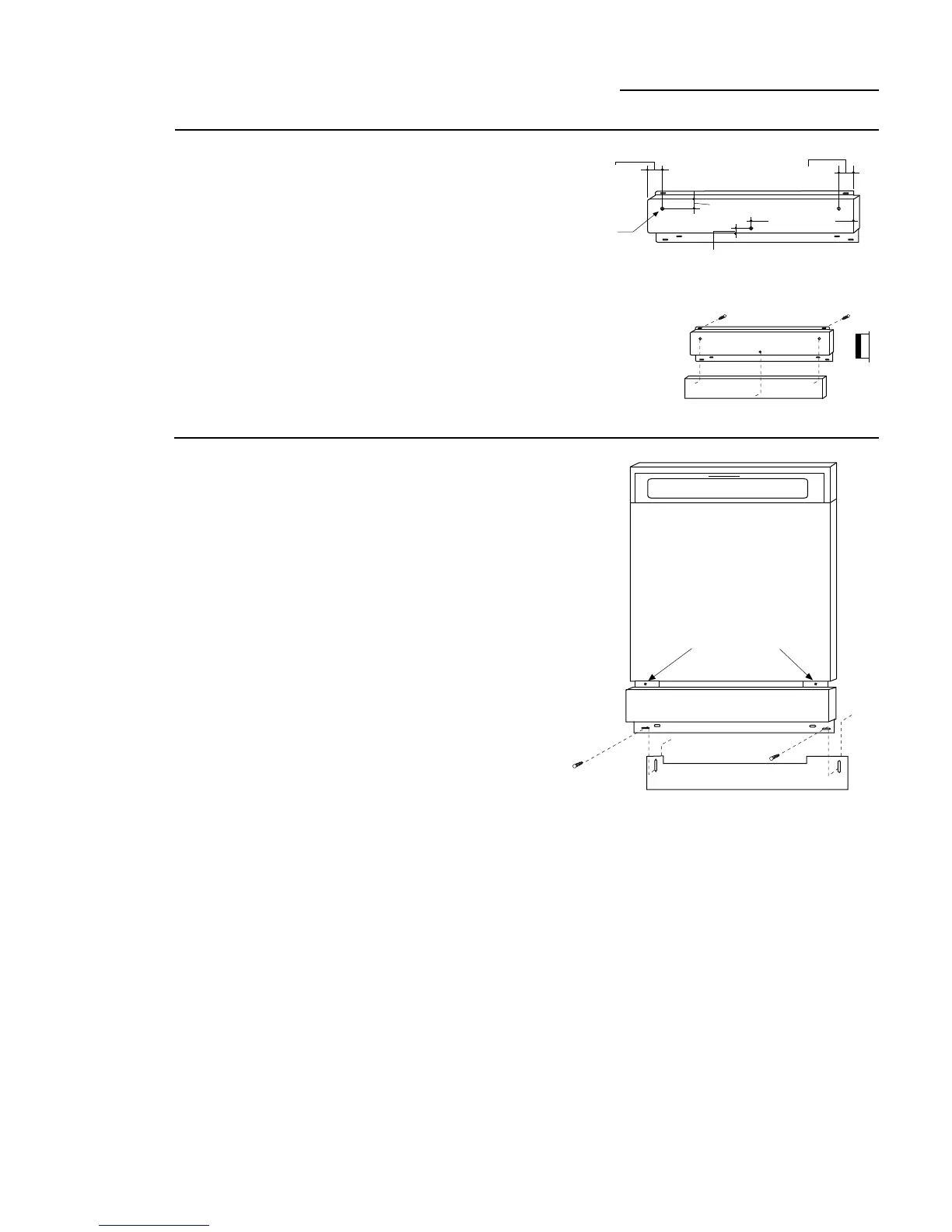

•Drill 3 holes 3/16" dia. into the access panel
as shown.
•Place the custom panel onto the access
assembly and mark hole locations.
•Drill 3 holes, 1/8" dia. holes, 5/8" deep into
the custom panel.
•Align the custom panel with screw holes and
drive 3 screws into the back side of the
assembly panel and through the custom
panel. The top edges should align evenly.
Caution:
Do not drill pilot holes too deeply to avoid damaging
the appearance side of the panel.
Step 5
Install Custom
Panel To
Access Assembly
Step 6
Install Access
Panel Assembly
And Toekick
•Place the toekick against the bottom of the
dishwasher.
•Place the access panel assembly against the
dishwasher and tighten the attached screws.
•Re-install two original bottom screws loosely.
Adjust the toekick up or down and tighten
screws.
1/2" to 2"
3/16" Dia.
Three Places
1/2" to 2"
1/2" to 2"
Center Line
1/2" to 2"
Tighten 2 Screws
To Next Page
