Design Information
CleanSensor Dishwashers
Side-by-side
Installation

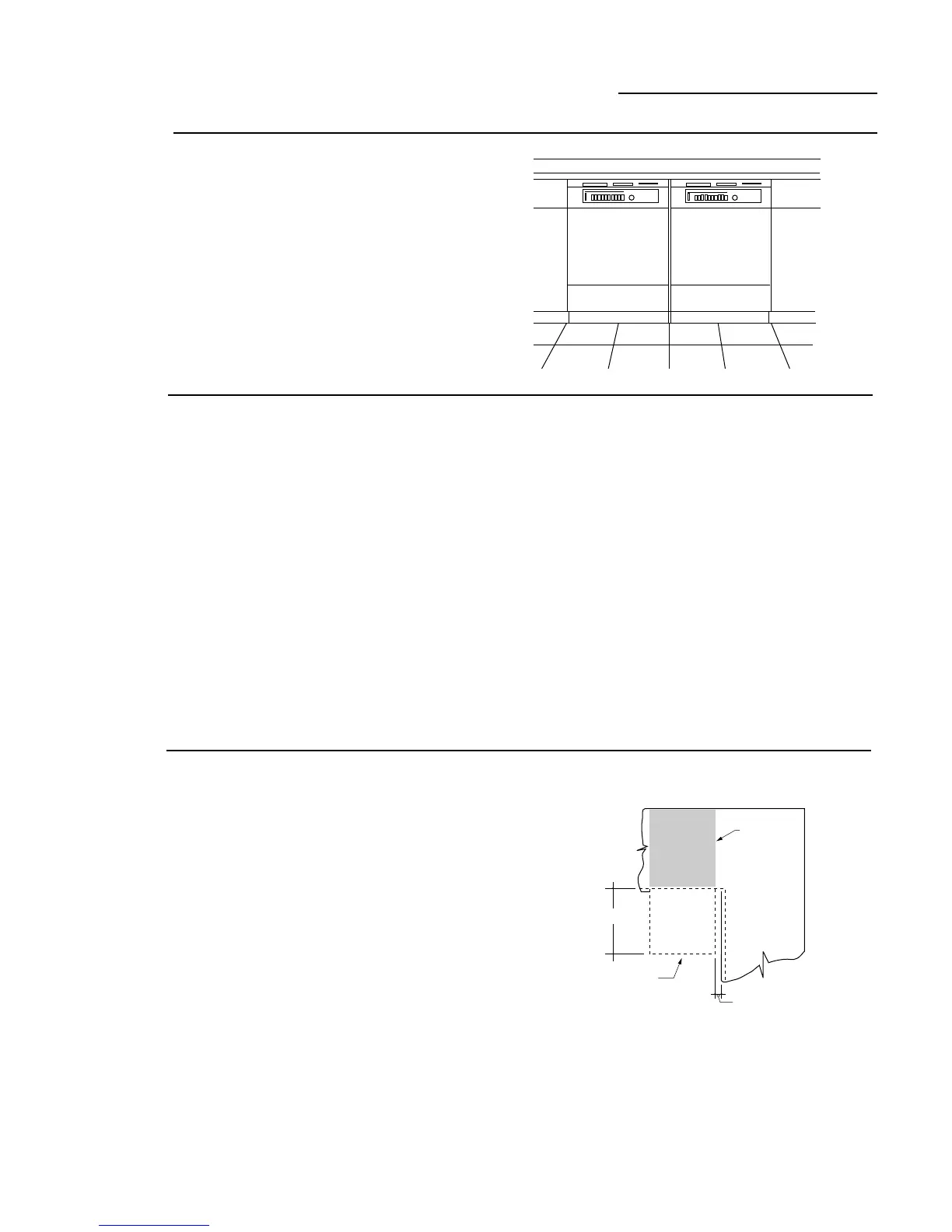

•Two Monogram dishwashers may be
installed side-by-side for greater capacity.
Optional
Panel and
Custom
Panel Kits
Custom Panel Kits
•GPF425 Trim Kit – Provides for the installa-
tion of 1/4" thick custom door and access
panels.
•GPF475 Trim Kit – Provides for the installa-
tion of 3/4" thick custom door and access
panels. This kit includes GPF100 heavy
springs kit for panels that weigh over 4
pounds.
Panel Kits
•GPF400S Trim Kit – Stainless steel door and
access panels.
•GPF400B, GPF400W Trim Kits – Black or
white color change or replacement door
and access panel.
•GPF600B, GPF600W Trim Kits – Black or
white replacement door panel only.
•GPF700B, GPF700W, Trim Kits – Black or
white replacement access panel only.
Installation Kits
•GPF100 Heavy Spring Kit – Heavy duty
springs for custom door panels weighing 4
to 8 pounds. This spring kit is included with
the GPF475 trim kit for 3/4" thick panels
and the GPF400S stainless steel panel kit.
•GPF53 Mounting Kit – Special brackets for
installing dishwasher beneath countertops
of stone or other materials that will not
accept screws.
Corner
Installation
•For a corner installation, allow 2" clearance
between dishwasher and adjacent cabinet or
wall.
•Dishwasher must be placed no more than
10 feet from sink for proper drainage.
24-3/4"
Door
in Open
Position
2" Minimum
To Clear Drawer
or Door Handles
Countertop
Dishwasher
Top View–Corner Installation
