Design Information

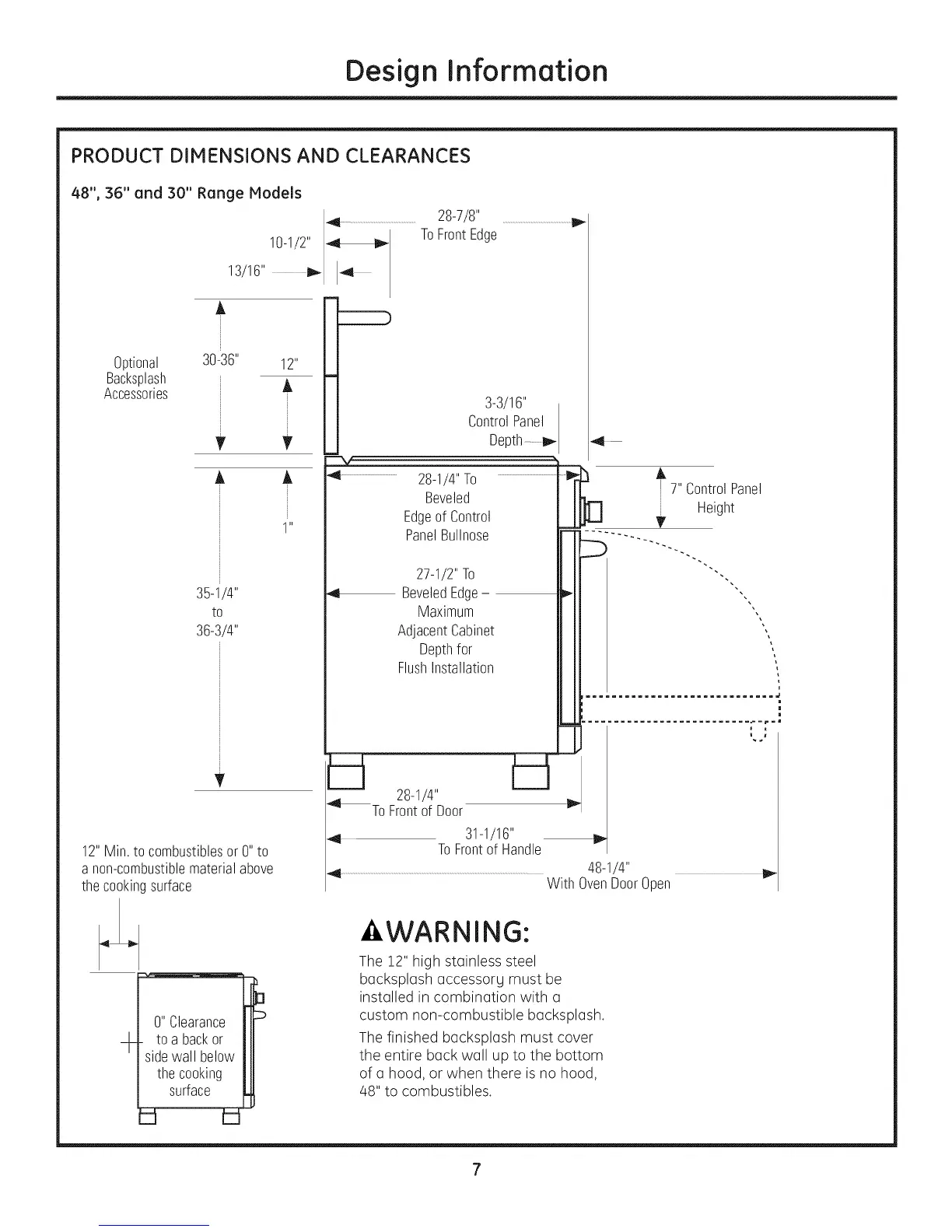

PRODUCT DIMENSIONS AND CLEARANCES
48", 36" and 30" Range Models
10-1/2" _
13/16" _ 4
A
Optional
Backsplash
Accessories
30-36"
,,
A
.
35-1/4"
to
36-3/4"
v
12"Min.to combustiblesor 0" to
a non-combustiblematerialabove
thecookingsurface
28-7/8" ............................................................
ToFrontEdge
3-3/16"
ControlPanel
Depth I_-
-='v_
,4 28-1/4"To
Beveled
Edgeof Control
PanelBullnose
,4t
27-1/2"To
BeveledEdge
Maximum
AdjacentCabinet
Depthfor
FlushInstallation
bl b1
28-1/4"
4 ToFrontof Door
4 31-1/16"
ToFrontof Handle
4
7" ControlPanel
Height
V
u
u
u
48-1/4"
With OvenDoorOpen
0" Clearance
- toabackor
sidewall below
thecooking
surface
WARNING:
The 12" high stainless steel
backsplash accessorg must be
installed in combination with a
custom non-combustible backsplash.
The finished backsplash must cover
the entire back wall up to the bottom
of a hood, or when there is no hood,
48" to combustibles.
