GE ZISS420DXASS

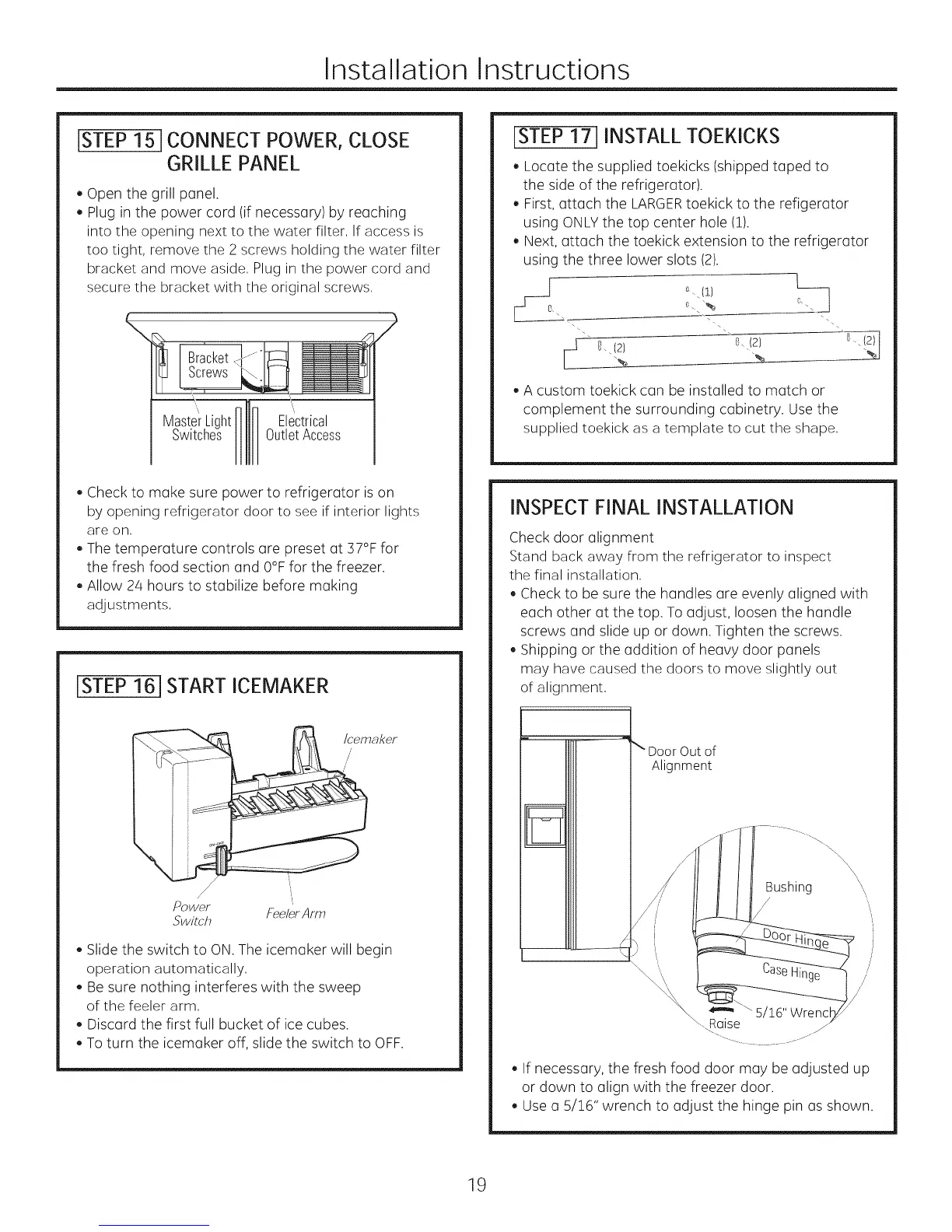

Installation Instructions
ISTEP151CONNECT POWER, CLOSE
GRILLE PANEL
. Open the grill panel.
. Plug in the power cord (if necessary) by reaching
into the opening next to the water filter, If access is
too tight, remove the 2 screws holding the water filter
bracket and move aside, Plug in the power cord and
secure the bracket with the original screws,
\
Maste'iLight
Switches
Electrical
OutletAccess
. Check to make sure power to refrigerator is on
by opening refrigerator door to see if interior lights
are on,
. The temperature controls are preset at 37°F for
the fresh food section and 0°F for the freezer.
. Allow 24 hours to stabilize before making
adjustments,
ISTEP 161 START ICEMAKER
Power
Switch
Fee/er Arm
/cernc_ker
/
. Slide the switch to ON. The icemaker will begin
operation automatically,
. Be sure nothing interferes with the sweep
of the feeler arm,
. Discard the first full bucket of ice cubes.
. To turn the icemaker off, slide the switch to OFF.
ISTEP171 INSTALL TOEKICKS
. Locate the supplied toekicks (shipped taped to
the side of the refrigerator).
. First, attach the LARGERtoekick to the refigerator
using ONLYthe top center hole (1).
. Next, attach the toekick extension to the refrigerator
using the three lower slots (2).
ij_% o../1/ 1-- t
. A custom toekick can be installed to match or
complement the surrounding cabinetry. Usethe
supplied toekick as a template to cut the shape,
INSPECTFINAL INSTALLATION
Check door alignment
Stand back away from the refrigerator to inspect
the final installation,
. Check to be sure the handles are evenly aligned with
each other at the top. To adjust, loosen the handle
screws and slide up or down. Tighten the screws.
. Shipping or the addition of heavy door panels
may have caused the doors to move slightly out
of alignment,
IIh--_:_-€l
Door Out of
Alignment
z
/
_\\\\\\\
Bushing
/
/
5/16"Wrencl\
\..Raise
. If necessary, the fresh food door may be adjusted up
or down to align with the freezer door.
. Use a 5/16" wrench to adjust the hinge pin as shown.
19
