GE ZISS420DXASS

Design Guide

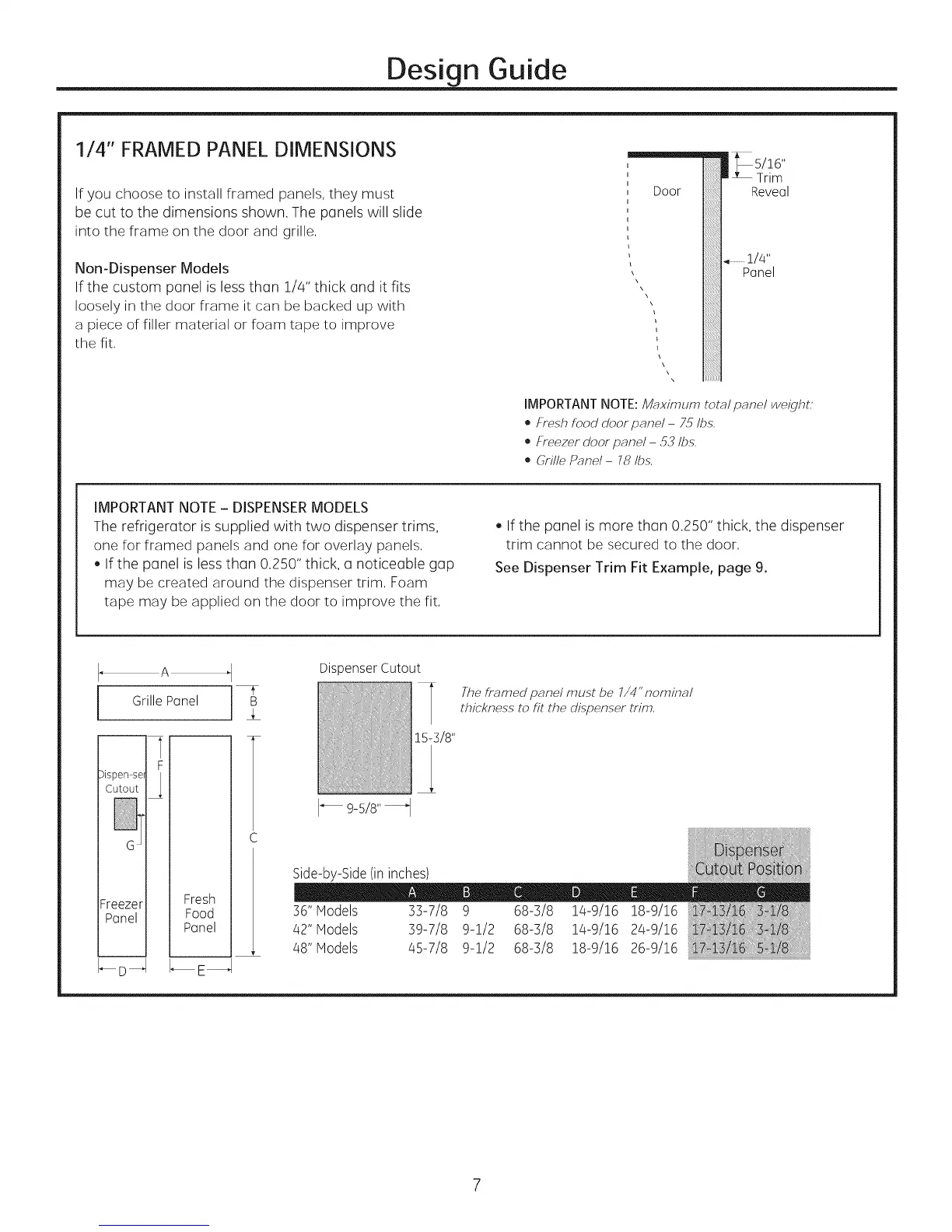

1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must
be cut to the dimensions shown. The panels will slide
into the frame on the door and grille,
Non-Dispenser Models
If the custom panel is less than 1/4" thick and it fits
loosely in the door frame it can be backed up with
a piece of filler material or foam tape to improve
the fit,
Door
"'!75!!6"
Reveal
..............1!4"
Panel
IMPORTANT NOTE: M_ximum tariff panel weight;
Fresh food door panel - 75 Ibs,
t Freezer door panel - 53 Ibs,
t Grille P_nel - 78 Ibs,
IMPORTANT NOTE- DISPENSERMODELS
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
, If the panel is less than 0.250" thick, a noticeable gap
may be created around the dispenser trim. Foam
tape may be applied on the door to improve the fit.
, If the panel is more than 0.250" thick, the dispenser
trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
Grille Panel
U
F
)ispen se L
Cutout
Freezer Fresh
Panel Food
Panel
_D -_ _E_
Dispenser Cutout
The #amed panel must be 7/4" nominal
thickness to fit the dispenser trim,
Side-by-Side (in inches)
!
36" Models 33-7/8 9 68-3/8 14-9/16 18-9/16
42" Models 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16
48" Models 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16 ............
