I
INSTALLATION INSTRUCTIONS
(contln.e,)
POWER
CONNEC70N(continue@
230/208 Volt
Wall Plug
Heater Wattage
Line Cord Kits
Configuration
Circuit Protective Device
@
230/208 Volts
RAK315 Tandem
15 Amp
TD Fuse or Breaker
2.55/2.09
KW
RAK320
Perpendicular
20 Amp
TD fuse or Breaker
3.45/2.82
KW
RAK330*
Large Tandem
30 Amp Fuse or Breaker
5.00/4.10
KW
230/208 Volt
Permanent
Heater Wattage
Connection Kits
Circuit Protective Device
@
230/208 Volts
RAK41 5/415L
15 Amp
TD Fuse or Breaker
2.55/2.09
KW
RAK420/420L
20 Amp TD Fuse or Breaker
3.45/2.82
KW
RAK430/430L*
30 Amp TD Fuse or Breaker
5.00/4.10
KW
Kits ending in “L” have flexible conduit to reach from the kit to the knockout hole (above right side inspection
plate) in the RAK 203 Sub-Base.
265 Volt
Permanent
Heater Wattage
Connection Kits
Circuit Protective Device
@
265 Volts
RAK51 5/515LF
15 Amp
TD Fuse
1.70
KW
RAK517/517LF 15 Amp TD Fuse
3.00
KW
RAK520/520LF
20 Amp TD Fuse
3.70
KW
RAK530/530LF*
30 Amp TD Fuse 5.00
KW
Kits ending in
“LF”
have flexible conduit to reach from the kit to the knockout hole (above right side inspection
plate) in the
RAK203
Sub-Base and have an Integral Fuse.
*Not recommended for use on 6000
BTUH Units. (If this connection kit is used it will provide a maximum heat
of 3.45
KW
at 230 volts and 3.7
KW
at 265 volts.)

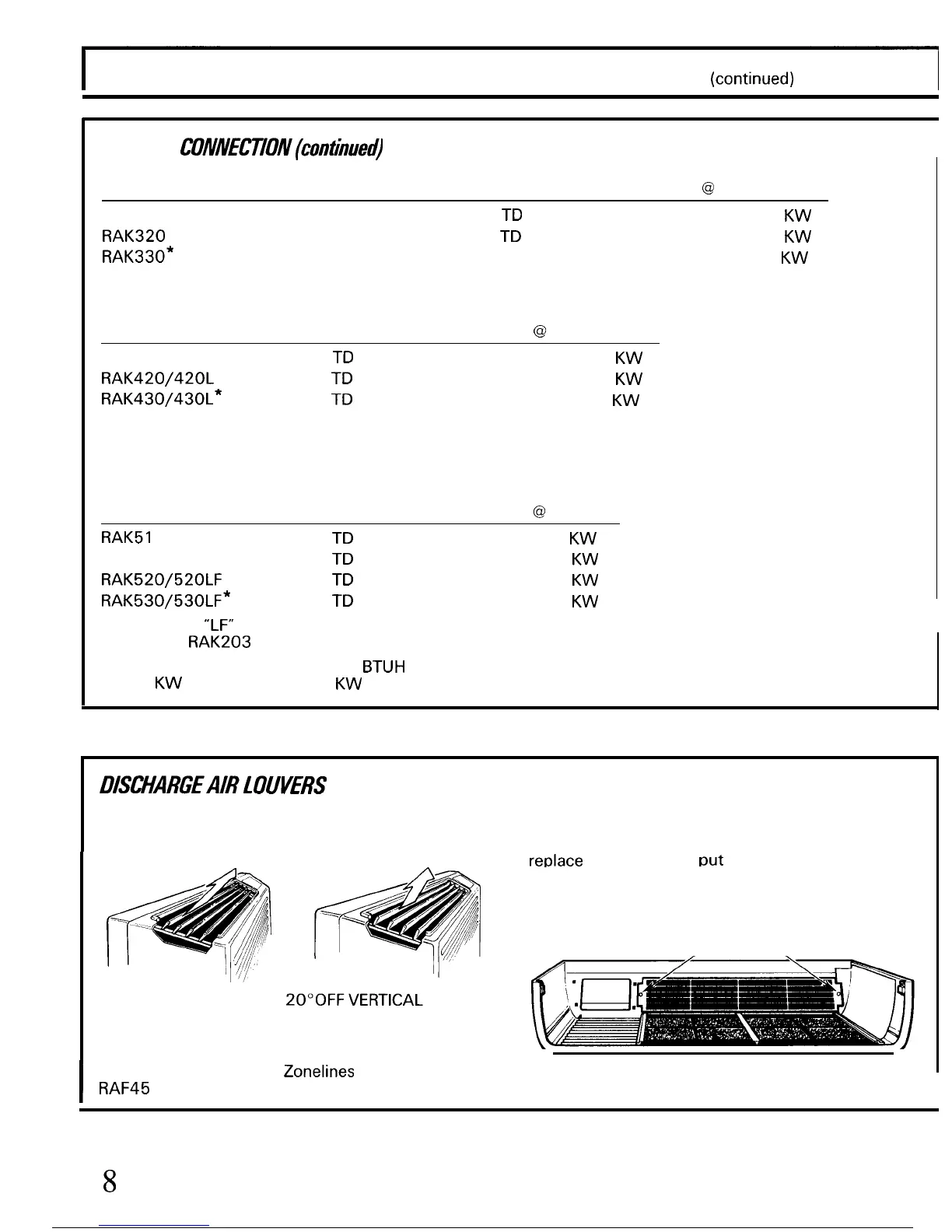

ADJUSTMENTS AND AUXILIARY CONTROLS AVAILABLE WITH THE ROOM CABINET REMOVED
DISCHARGEAIRLOUVERS
The angling of the discharge air maybe adjusted from
To reposition the louvers, remove the room cabinet
the factory setting of 37° off vertical, to a setting 20°
and remove the 2 screws that hold the louver section
off vertical.
in place, rotate the louver section 180° (end for end),
37 ‘OFF VERTICAL
re~lace the screws and ~ut the room cabinet back on
the air conditioner. Textured face of louver section
must be toward the room side.
LOUVER SCREWS
/\
20:OFFVERTICAL””
‘
I
NOTE: For high mounted Zonelines where greater room cabinet louver adjustments are required, order the
RAF45
Room Cabinet.
