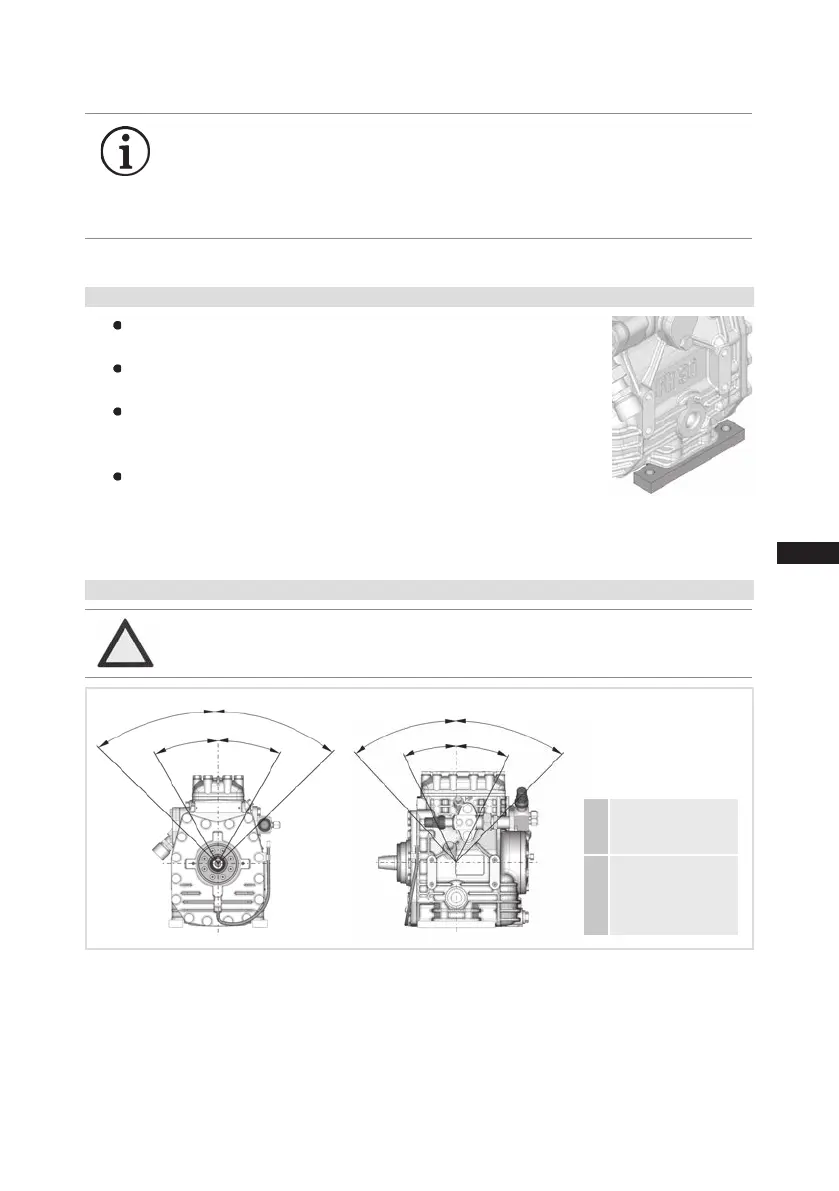

4 | Compressor assembly
4.1 Setting up
4.2 Maximum permissible inclination
Fig. 8
Fig. 9
Fittings (e.g. pipe holders, additional units etc.) on the compressor are
permissible only following consultation with GEA.
Setup on an even surface or frame with sufcient load-bearing capac-
ity. Use all 4 fastening points.
Correct setup of the compressor and mounting of the belt drive are
decisive for running comfort, operating safety and the service life of
the compressor.
In the condition on delivery the compressor is provided with installa-
tion feet (see Fig. 8). Alternatively the compressor can also be bolted
directly, without installation feet, on the substructure.
A
a
A
a
A
max. 30°,
max. 2 minutes
a
max. 15°,
continuous
operation
INFO Newcompressorsarefactory-lledwithinertgas.Leavethisser-
vice charge in the compressor for as long as possible and prevent
the ingress of air.
Check the compressor for transport damage before starting any
work.
ATTENTION Poor lubrication can damage the compressor. Respect the stated
values.
