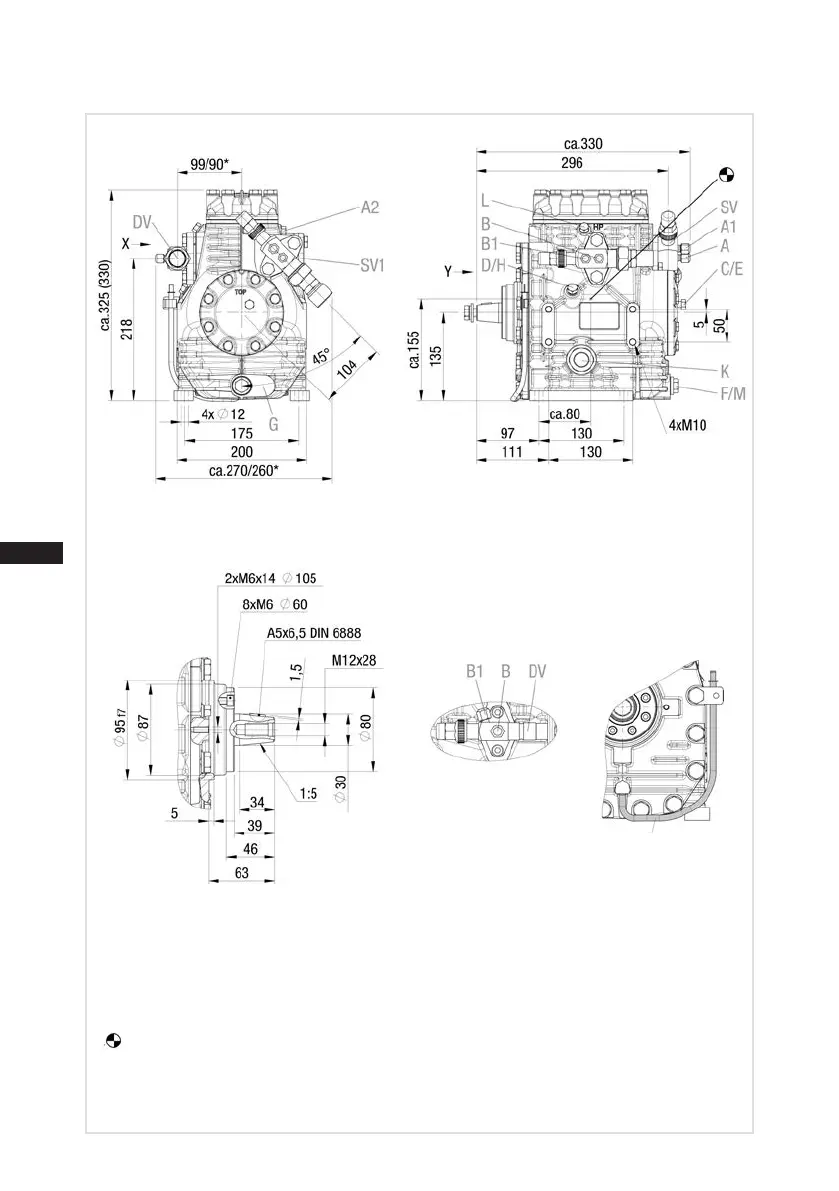

9 | Dimensions and connections
Shaft end
Centre of gravity
Fig. 19
Dimensions in
()
= K - Design
* = FK30/235
Dimensions in mm
only FK30/235
Leak oil drain hose
both sides
