Inlet Valves
7

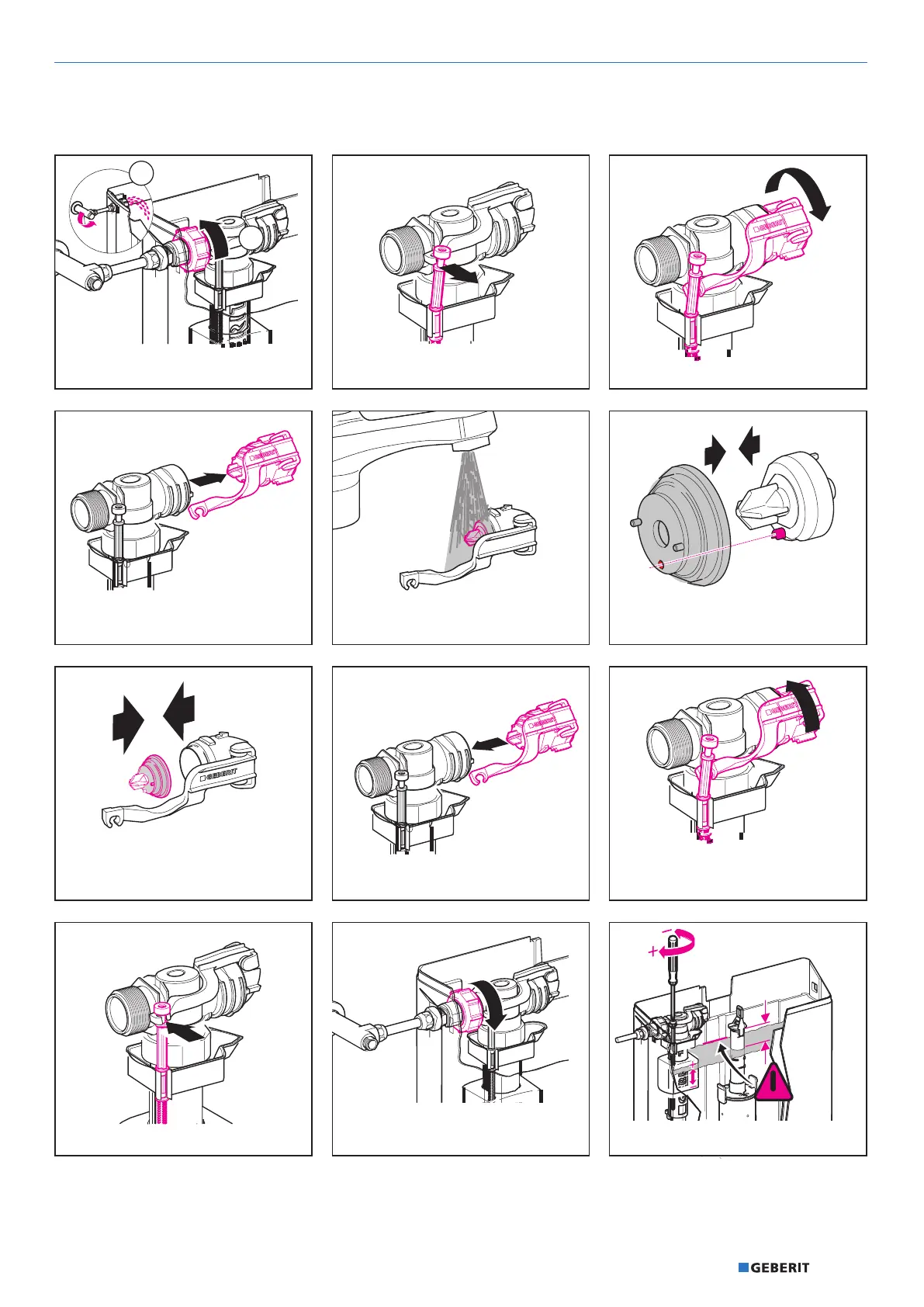

Close stop valve (1) & remove valve (2).
Remove diaphragm cover.
Assemble diaphragm insert and cover
Note: This membrane assembly is only suitable for
Impuls380 inlet valves.
Click spindle into lever.
Unclip spindle from lever.
Wash diaphragm and cover with clean water.
Insert assembly into housing.
Re-install inlet valve. Open stop valve.
Undo diaphragm cover (1/4 turn).
Align diaphragm with insert.
Lock assembly into housing 1/4 turn.
Check and adjust the filling level.
WARNING! Upon maintenance or replacement of filling valve, the installer must ensure the cistern fill and spill level is correctly
adjusted and complies with AS 1172.2 and AS/NZS 3500.1.
