Geberit Drainage Systems
Jointing methods
4.3 Ring-seal sockets
Available from Ø 40 to 160mm.
Connection properties
a Non-rigid, removable.
b Non-tension-resistant.
c Simple push-fit connection.
Application
Ring-seal socket joints can be used to provide a
connection between various prefabricated parts for ease
of assembly.
Assembly
May be used either vertically or horizontally. The small
overall dimensions provide an advantage where space is
limited. Can easily be assembled or released even where
access is difficult.

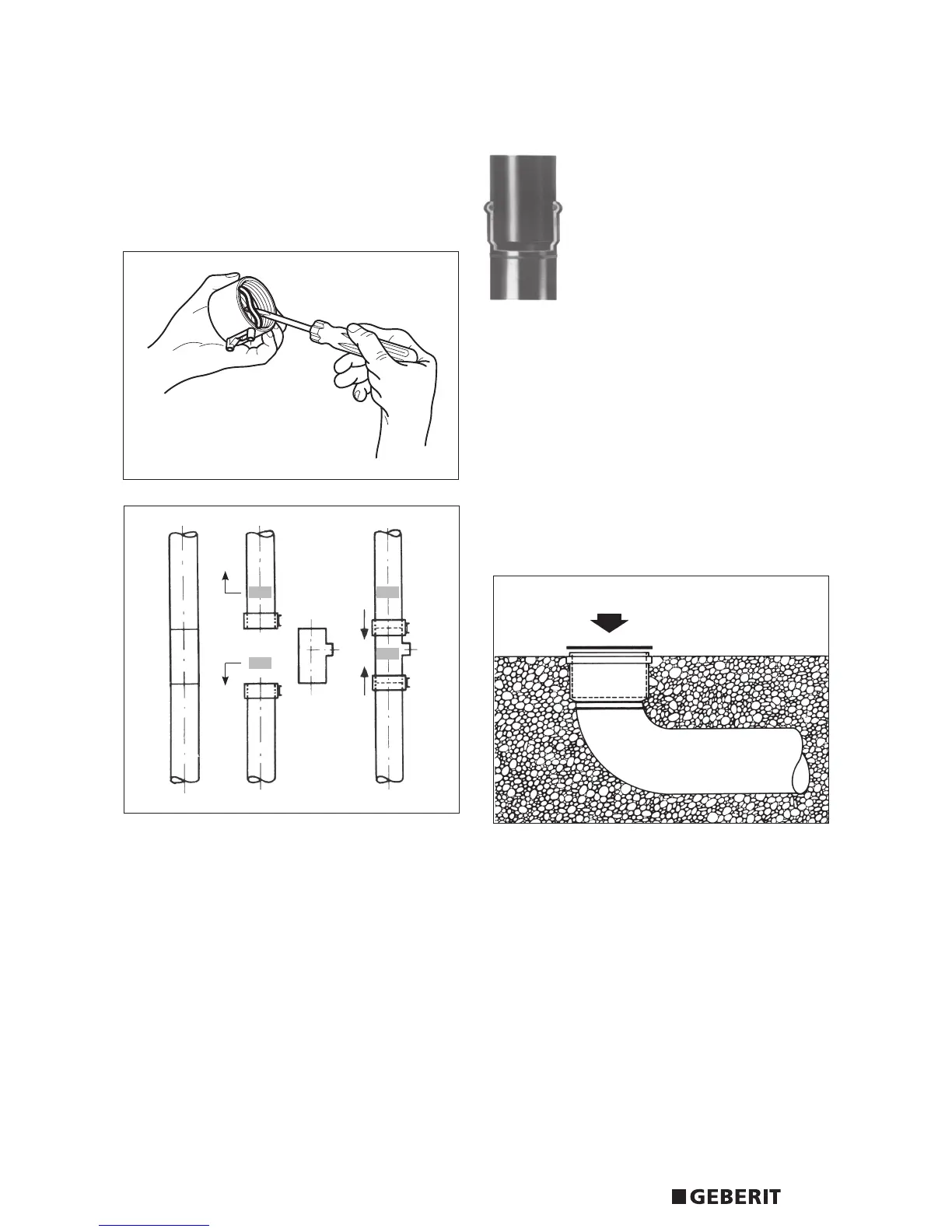

Ring-seal sockets are provided with a yellow protection
cap to prevent the ingress of debris during installation.
Protection cap
4.2.3 Conversion to a
slip coupling
To turn the coupling into a slip coupling, the central ring
can be removed as shown below.
