CONNECTION OF MULTI-PLATE COVER
Secure the bottom ground of the chronotermostat LIRICO as (Fig.3) on the
wall, with the screws included, fastens the semi-cover by connecting the
hooks on the part below in the cracking area part.
Subsequently by bringing the semi-cover up with a rotating movement, with
attention insert the contact of the semi-cover receptacle on the base.
Then fit in the screws (A) on the suitable connections by fastens the base
with the semi-cover as (Fig. 3A).
Per il fissaggio della base al-
la parete, usare le viti “B” con
gli appositi tasselli.
For the installation, use the
Screws in Fig.B with the
Opposite plugs.
Per il fissaggio della base al-
la scatola incasso 3 moduli
usare le viti “C”.
For the installation of the ca-
ses with three modulations
box, by using screw “C”.
Per il fissaggio del semicoperchio alla base,
usare le viti “A”
For the fixing installation of
The half cover, use the screws in Fig.A.

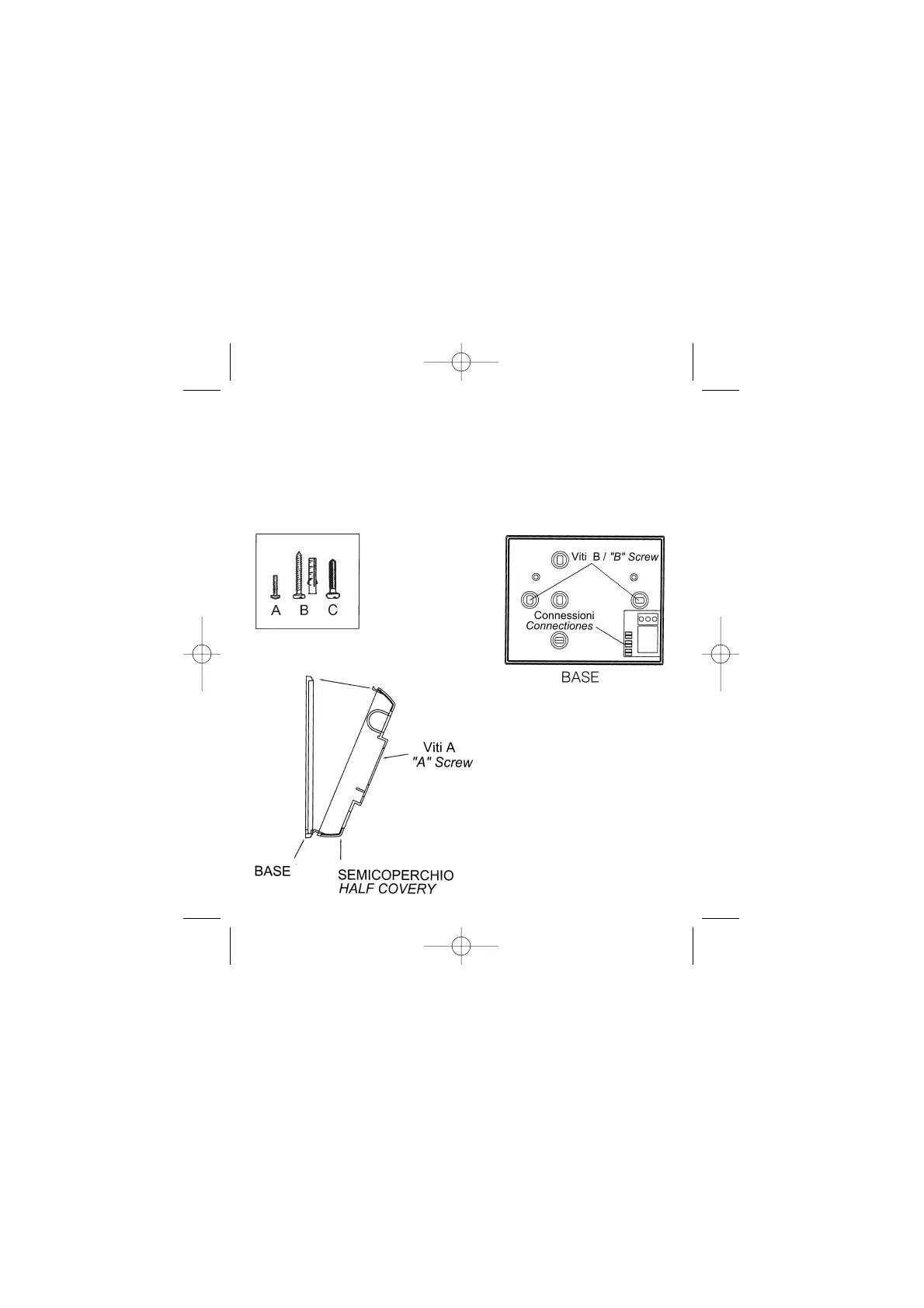

Fig.3
Fig.3 A
N.B. Durante questa operazione pre-
stare molta attenzione all’inserimen-
to delle connessioni tra base e semi-
coperchio
N.B. Make attention during this ope-
ration by matching the connections
with the base and the semi-cover.
