Gecen SF-790G User Manual

3 / 13
Chapter 2 Introduction of panel function

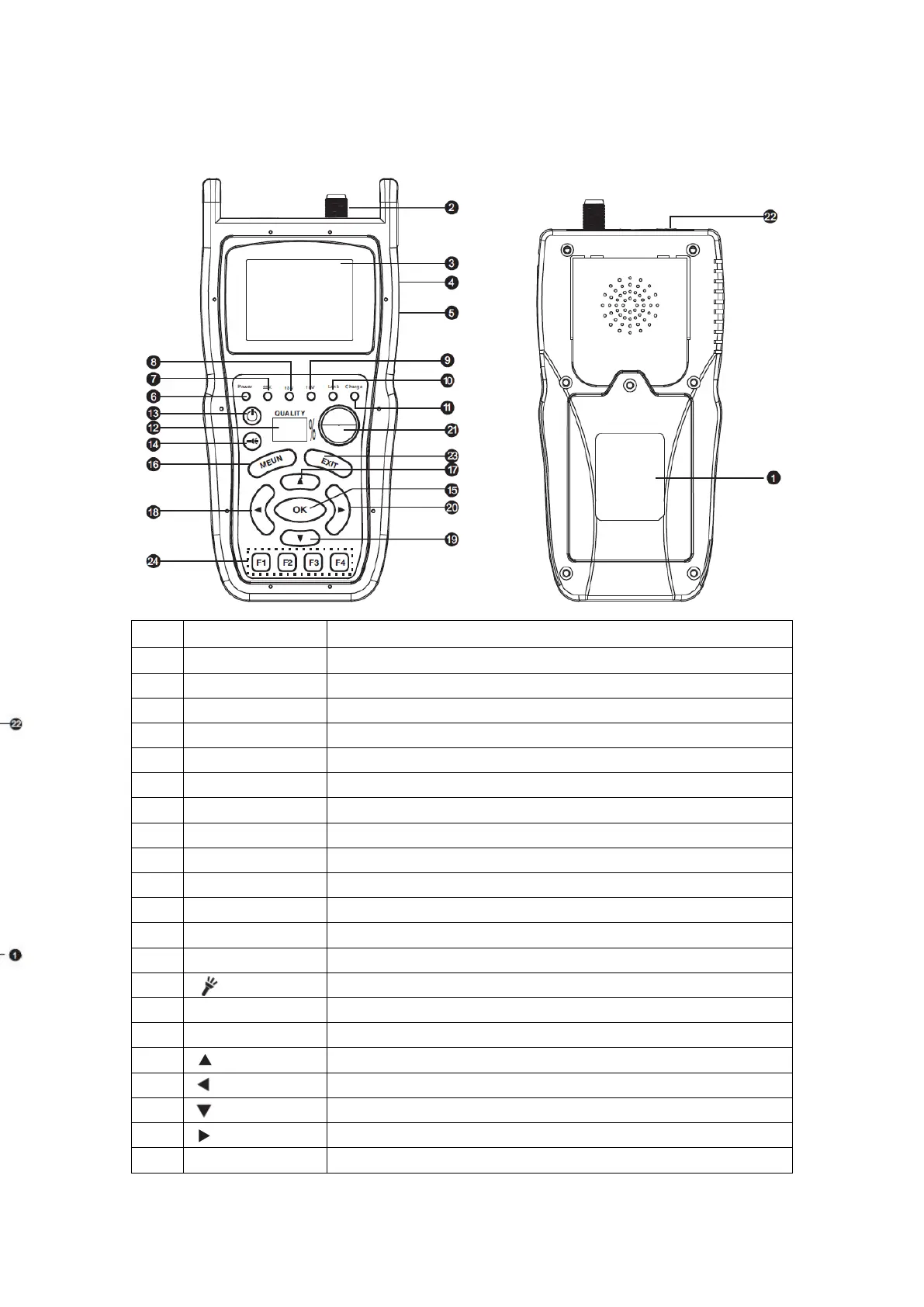

2.1 Panel introduction
No
Description
Function
1
Cover
The battery cover
2
LNB IN
Connect to satellite antenna cable
3
LCD Screen
Video display
4
USB Port
Connect to USB flash disk
5
DC Slot
Connect to Adapter Input
6
Power
Power indicator light
7
22KHz
22KHz indicator light
8
13V
Vertical polarization voltage output light
9
18V
Horizontal polarization voltage output light
10
LOCK
Signal lock indicator light
11
Charger
Charging indicator. Red is charging status, green is charging completed.
12
Digital tube
Quality shows
13
Power Switch
Turn on/off meter
14
Torch Switch
15
OK
OK KEY
16
MEUN
MEUN KEY
17
Up KEY
18
Left KEY
19
DOWN KEY
20
Right KEY
21
Compass
Mechanical Compass

Gecen SF-790G Specifications

General

Brand	Gecen
Model	SF-790G
Category	Measuring Instruments
Language	English
