8

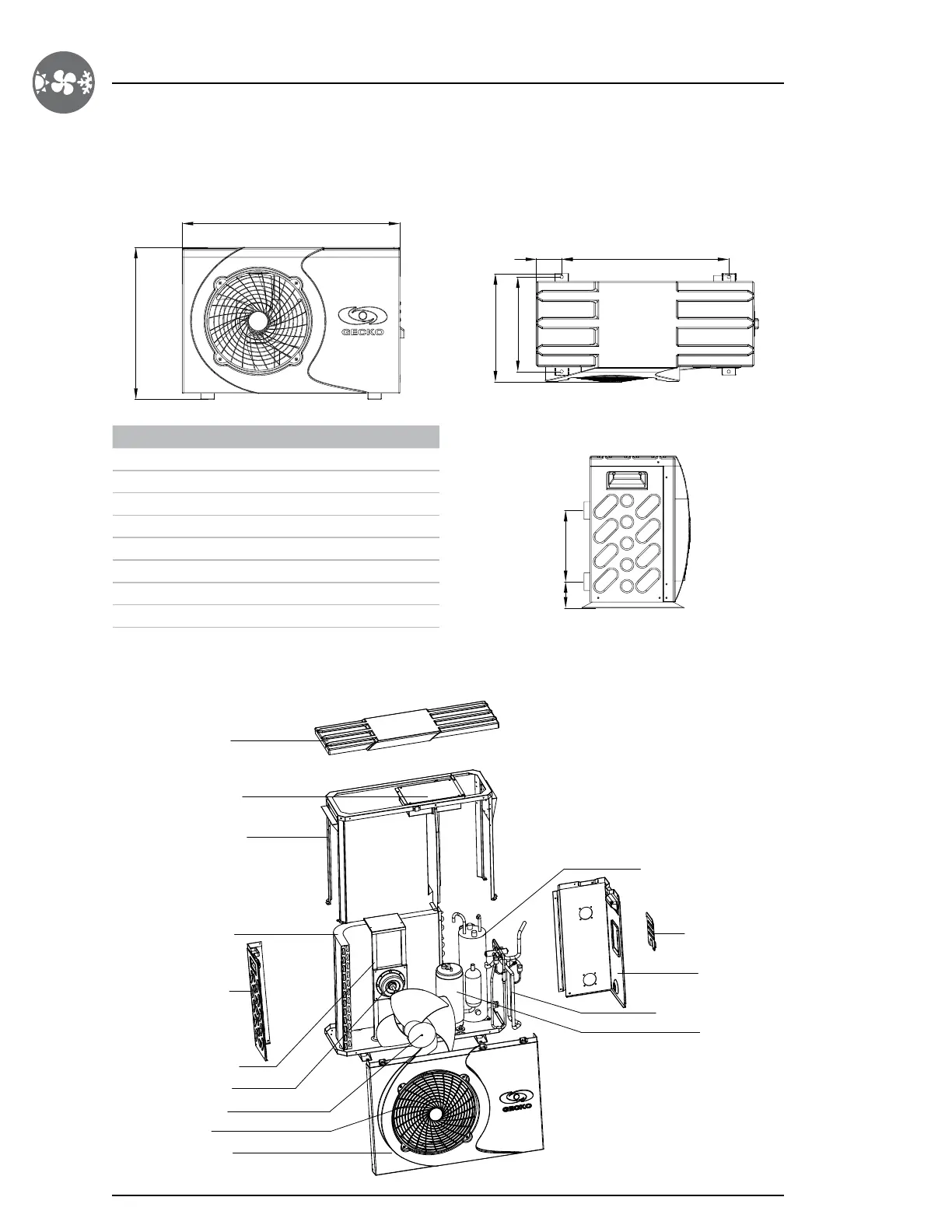

Overview
Exploded view
Top cover
Electrical box
Support frame
Evaporator
Left panel
Fan bracket
Terminal cover
Titanium heat exchanger
Fan motor
Fan blade
Right panel
Grill
4-way valve assembly
Front panel
Compressor
B
A
FE
C
D
GH
in.temp dimensions
Gecko-5kW Gecko-7.5kW
A 555 mm (21,85 in) 661 mm (26,02 in)
B 794 mm (31,26 in) 902 mm (35,51 in)
C 395 mm (15,55 in) 423 mm (16,65 in)
D 346 mm (13,62 in) 356 mm (14,02 in)
E 92 mm (3,62 in) 141 mm (5,55 in)
F 610 mm (24,02 in) 620 mm (24,41 in)
G 260 mm (10,24 in) 370 mm (14,57 in)
H 96 mm (3,78 in) 96 mm (3,78 in)
