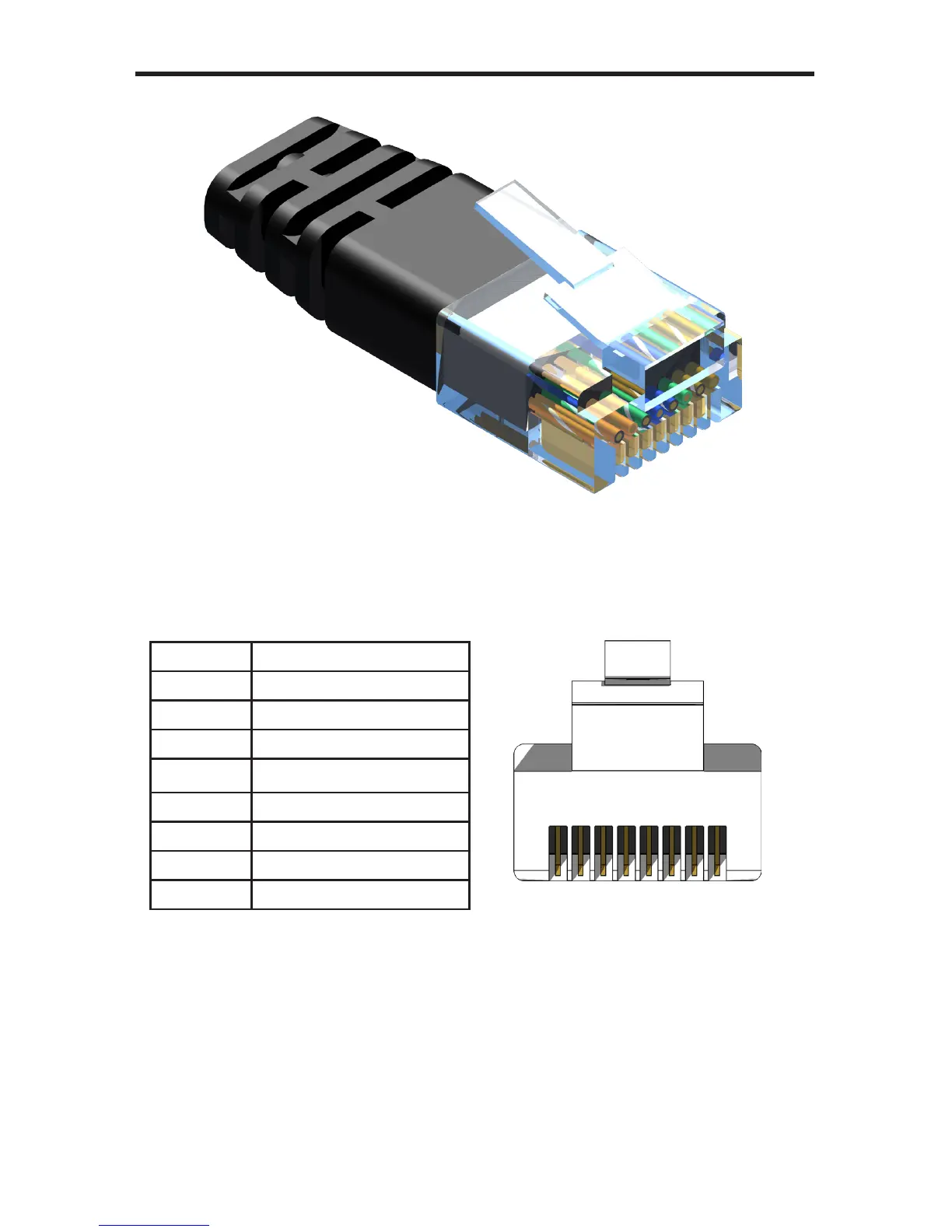

Gefen EXT-USB-MINI2N - Network Cable Wiring Diagram

1 2 3 4 5 6 7 8
GefenhasspecicallyengineeredtheirproductstoworkwiththeTIA/EIA-568-B
specication.Pleaseadheretothetablebelowwheneldterminatingcablefor
use with Gefen products. Failure to do so may produce unexpected results and
reduced performance.
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling.
Each cable run must be one continuous run from one end to the other. No splices
or use of punch down blocks.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
9
NETWORK CABLE WIRING DIAGRAM
