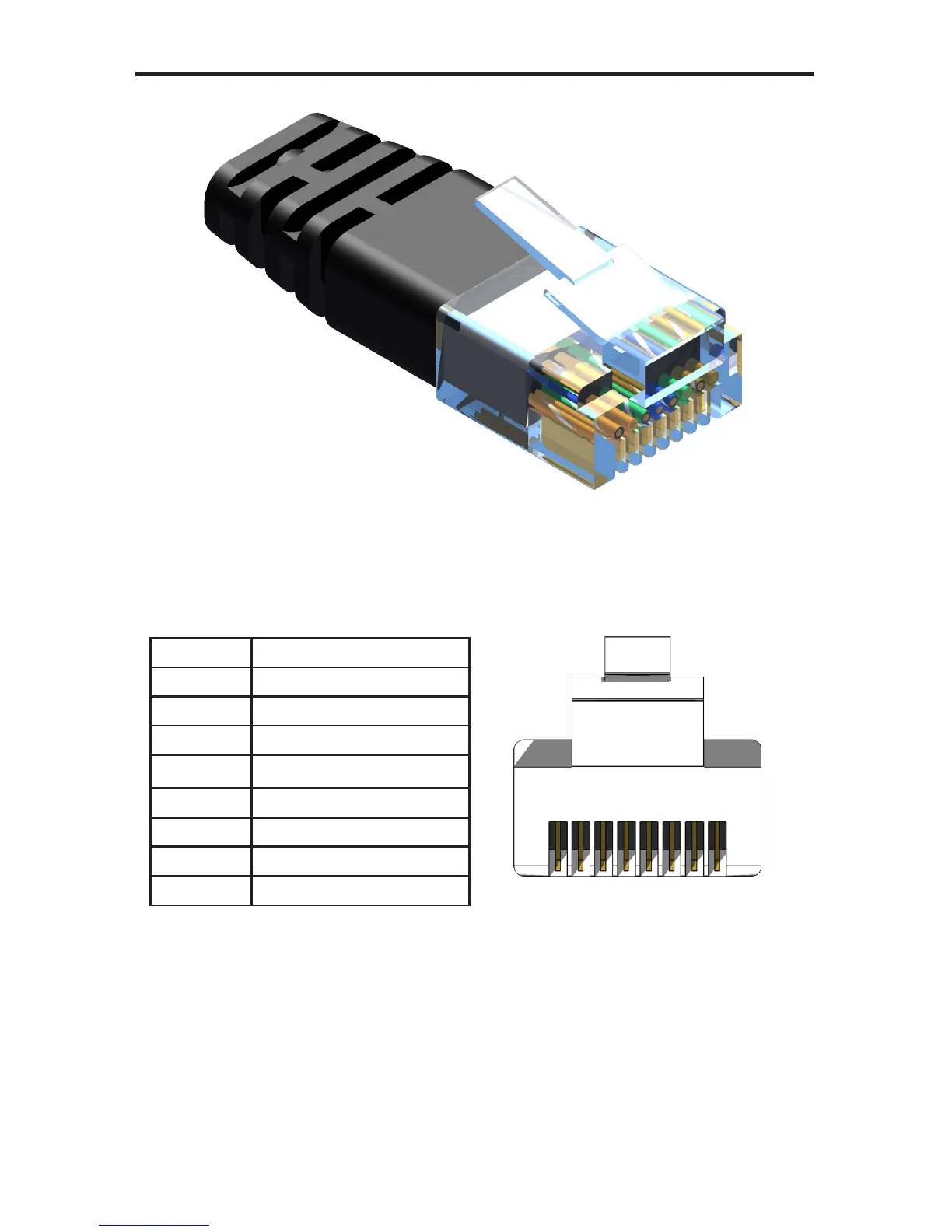

NETWORK CABLE WIRING DIAGRAM
1 2 3 4 5 6 7 8
Gefen has specically engineered their products to work with the TIA/EIA-568-B
specication. Please adhere to the table below when eld terminating cable for
use with Gefen products. Failure to do so may produce unexpected results and
reduced performance.
Category 5 cabling comes in stranded and solid core types. Gefen recommends
using solid core cabling.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
