gefran 1600 User Manual

DESCRIZIONE PONTICELLI
DESCRIPTION JUMPERS
BESCHREIBUNG BRÜCKEN
Abilitazione configurazione (stagno) S3 (chiuso)
Enable configuration (Tin) S3 (closed)
Freigabe der Konfiguration (Lötzinn) S3 (geschlossen)
Abilitazione configurazione (jumper) S14 (chiuso) *
Enable configuration (jumper) S14 (closed) *
Freigabe der Konfiguration (jumper) S14 (geschlossen) *
Abilitazione calibrazione S4 (chiuso)
Enable calibration S4 (closed)
Freigabe der Kalibration S4 (geschlossen)
Abilitazione autoconfigurazione istantanea S8 (assieme a S3+S4) (chiusi)
Enable instantaneous self-configuration S8 (with S3+S4) (closed)
Freigabe sofortige automatische Konfigurierung S8 (mit S3+S4) (geschlossen)
Non utilizzato S7
Not used S7
Nicht verwendet S7
Abilitazione sonda PTC S17 (aperto)
Enable PTC probe S17 (open)
Freigabe Fühler PTC S17 (geöffnet)
Abilitazione sonda PT100 (standard) S17 (chiuso)
Enable PT100 probe (standard) S17 (closed)
Freigabe Fühler PT100 (standard) S17 (geschlossen)
HB.F = 0, 1, 2 S18 (chiuso)
HB.F = 0, 1, 2 S18 (closed)
HB.F = 0, 1, 2 S18 (geschlossen)
HB.F = 3, 7 S18 (aperto)
HB.F = 3, 7 S18 (open)
HB.F = 3, 7 S18 (geöffnet)
Non utilizzato S21
Not used S21
Nicht verwendet S21
Non utilizzato S22
Not used S22
Nicht verwendet S22
Non utilizzato S23
Not used S23
Nicht verwendet S23
OUT4 relè diseccitato power ON S2 (posizione A)
OUT4 relay OFF at power ON S2 (position A)
Ausgang 4; Relais angezogen = Kontakt geöffnet S2 (Stellung A)
OUT4 relè eccitato power ON S2 (posizione B)
OUT4 relay ON at power ON S2 (position B)
Ausgang 4; Relais angezogen = Kontakt geschlossen S2 (Stellung B)
(*) LC
S7
S4
S3
S2
S5
S6
S8
S22 S23 S21
S19
S13
S1
S12
S15
S18
S16
S11
S17
S20
S9
S10
LS
A
B
B
A
B
A
A
B
A
D
ON
ON
S14

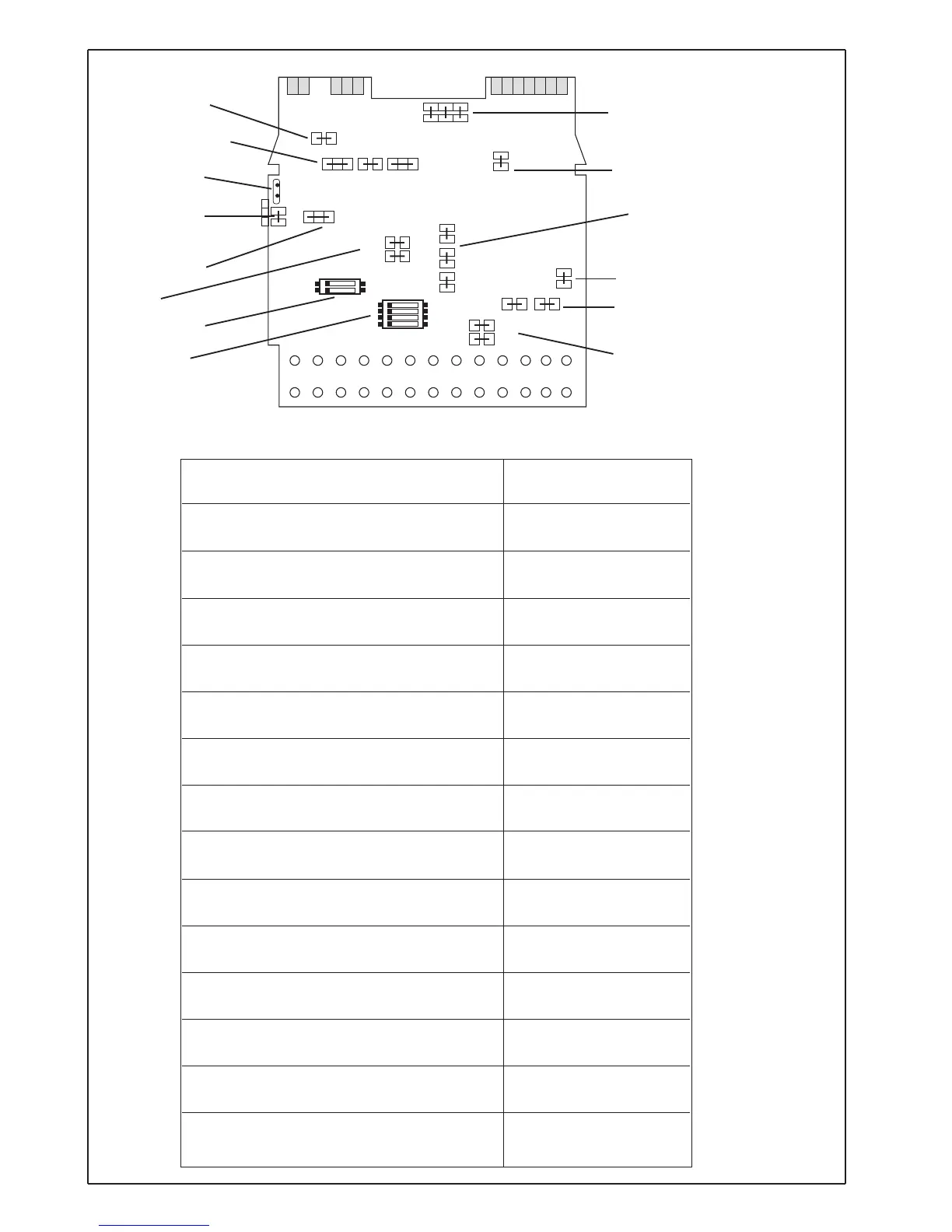

Fig. 2
S19
S8
S17 - S20
S9
S10
S18
S16
S11
S4 - S5 - S6
S7
S22 - S23 - S21
S1
S13
S12
S15
S14
S3
S2
SCHEDA CPU
CPU BOARD
CPU-KARTE
CARTE CPU
FICHA CPU
PLACA CPU
2
80080D_MHW_1600-1800_0308_APPENDIX
