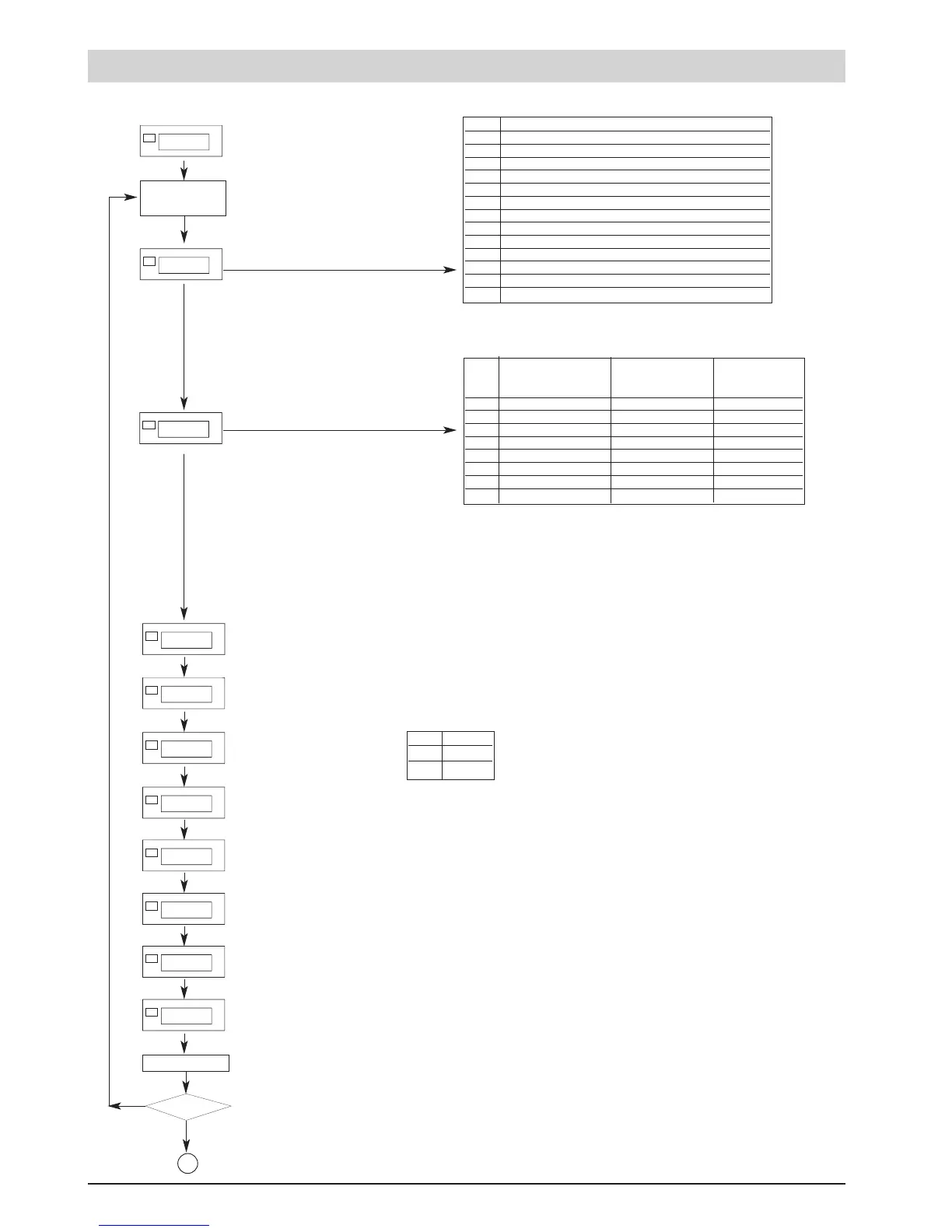

Setting Alarms
This menu lets you configure parameters for the alarm functions.
Select reference quantities
Alarm n
Alarm n type
Reference quantity
0 IN1
1 IN2
2 IN3
3 IN4
4 Fin.A (math function A)
5 Fin.b (math function b)
12 Value acquired from serial line
13 Input 1 maximum peak
14 Input 1 minimum peak
15 Input 1 peak - peak
16 Input 2 maximum peak
17 Input 2 minimum peak
18 Input 2 peak - peak
Direct Normal
(maximum) Symmetrical
Inverse (minimum) Absolute/Relative (window)
0 Direct Absolute Normal
1 Inverse Absolute Normal
2 Direct Relative Normal
3 Inverse Relative Normal
4 Direct Absolute Symmetrical
5 Inverse Absolute Symmetrical
6 Direct Relative Symmetrical
7 Inverse Relative Symmetrical
Alarm 1 is only absolute
The deviation alarm refers to the previous absolute.
by adding the following numbers to the value shown in the table, you can ena-
ble a series of supplemental functions:
+8: disable power-on until first trip point.
+16: enable memory latch.
+32: change color of PV display in case of active alarm
+64: deviation alarm refers to input IN3 (except code Ar.n = 2)
+128: deviation alarm refers to input IN3 (except code Ar.n = 3)
+256: change color of PV display if limit is exceeded
(only for alarms with timed delay)
+512: enable string if alarm is active
+1024: enable string if limit is exceeded (only for alarms with timed delay)
Hysteresis for alarm n
[±9999] scale points
Alarm n activation time
[0 ... 999] min/sec/msec
(see bt.n parameter)
Time base for Alarm n
SV activation time
0 msec
1sec
2 min
A
n. alarm
n = 1
PV
ALL
PV
Ar.n
PV
At.n
PV
xy.n
PV
rA.n
PV
bt.n
PV
Sda.n
PV
SdB.n
PV
Sd(n
PV
Sdd.n
PV
SdE.n
Character A alarm n string
[0 ... 255]
Character B alarm n string
[0 ... 255]
Character C alarm n string
[0 ... 255]
Character D alarm n string
[0 ... 255]
Character E alarm n string
[0 ... 255]
n = n + 1
n > AL.n
SI
NO
AL.n (number of enabled alarms) is selecta-
ble in Hrd menu
+32 only for AL1 and AL2 : deviation alarm limit In.3 and In.4 from digital
input (diG.1,2 codes: 4, 5, 6)
N.B.:
For deviation alarms, reference quantities must have the
same decimal resolution
