Every 500 Hours
engine whenever necessary, while the other
person installs/removes the lift arm stop (2)
and adjusts the bucket stopper.
1. Park the machine on solid flat ground,
and remove the bucket.
2. Lower the lift arm to its lowest position,
and stop the engine.
3. Hook the lift arm stop (2) on the steel
bar (4) of the lift arm, and place it on the
cylinder.
Adjusting or Replacing the Bucket
Stoppers (bolts / nuts)
DANGER
If you must work beneath the raised
lift arms, securely engage the lift arm
stop.
Never get under the lift arms and bucket
if they are not sufficiently supported.
Service the lift arm stop if damaged or
if parts are missing. Using a damaged
lift arm stop or with missing parts can
cause the lift arms to drop, causing
injury or death.
WARNING
Park the machine on solid flat ground
for work.
Work as a 2-person team, and stay in
communication with each other.
One person must sit at the operator’s
seat and stop the engine whenever
necessary, and must take care not
to touch the lever or pedal unless
necessary. Set the engine speed to low
when operating the control lever.
The one who performs maintenance
must make sure to keep their body or
clothing away from the moving parts of
the machine.

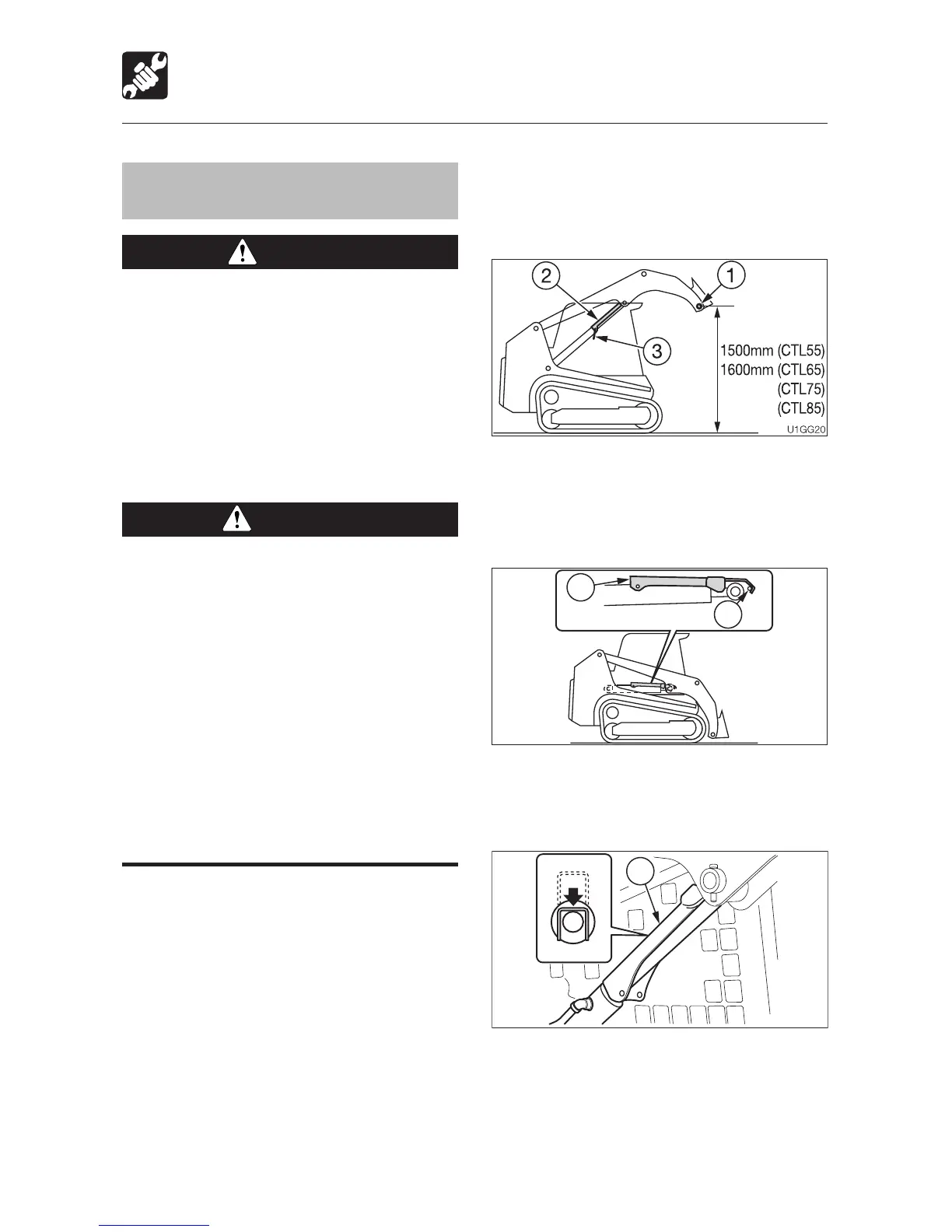

For the adjustment of the bucket stopper,
install the lift arm stop (2) used for the lift arm
adjustment on the lift arm cylinder while the
pin hole (1) of the lift arm should be positioned
at the height of approximately 1500 mm (59.1
in) or 1600 mm (63 in) above the ground, as
shown in the figure on the right. Adjustment
work should be done while maintaining the
machine at this attitude. To perform the
inspection safely, obtain the lift arm stop (2)
and the locking pin (3) in advance. The work
should be done by two people. One of them
must sit at the operator’s seat and stop the
To Next Page
