PRINTED IN U.S.A. 25 50960066/AP0813
Brake Fluid Reservoir: Located in the front of the
frame on the inside left wall under the cover.
Windshield Washer Fluid Reservoir: Located under
the cover on the front of the frame. The fluid level is
visible through the reservoir or by removing the reser-
voir cap.
Hydraulic Restriction Indicator: This indicator is
located on the multi-function display in the operator’s
compartment. (Refer to Checking and Changing
Hydraulic Return Filter Element, page 56.)
Air Filter Restriction Indicator: This indicator is
located on the multi-function display in the operator’s
compartment. (Refer to Checking and Changing Air
Filter Element, page 56.)
Hydraulic Pressure Test Port: Located off the lower
portion of the battery compartment; a gauge can be
attached to this port to check main valve and steering
pressures
Battery: The battery is located under the engine cover
toward the front of the engine compartment directly to
the rear of the air cleaner.
Backup Alarm: Located under the frame above the
rear axle; it produces a loud warning sound whenever
the machine is in reverse.
Right Side Rear View Mirror: Located on the right
side of the machine; it provides the operator a view of
the area on the right side and behind the machine.
Left Side Rear View Mirror (optional): Located on
the left side of the cab; it provides the operator a view
of the area on the left side and behind the machine.
Cab Right Side Window or Panel: Located on the
right side of the cab; this window or panel protects the
operator from coming in contact with the boom.
Cab Rear Window: Located on the rear of the cab;
this window protects the operator from material flying
off the rear wheel.
Operator Station Fuse and Relay Compartment:
Located under the hinged load chart panel; lift the front
of the panel to access the fuses and relays.

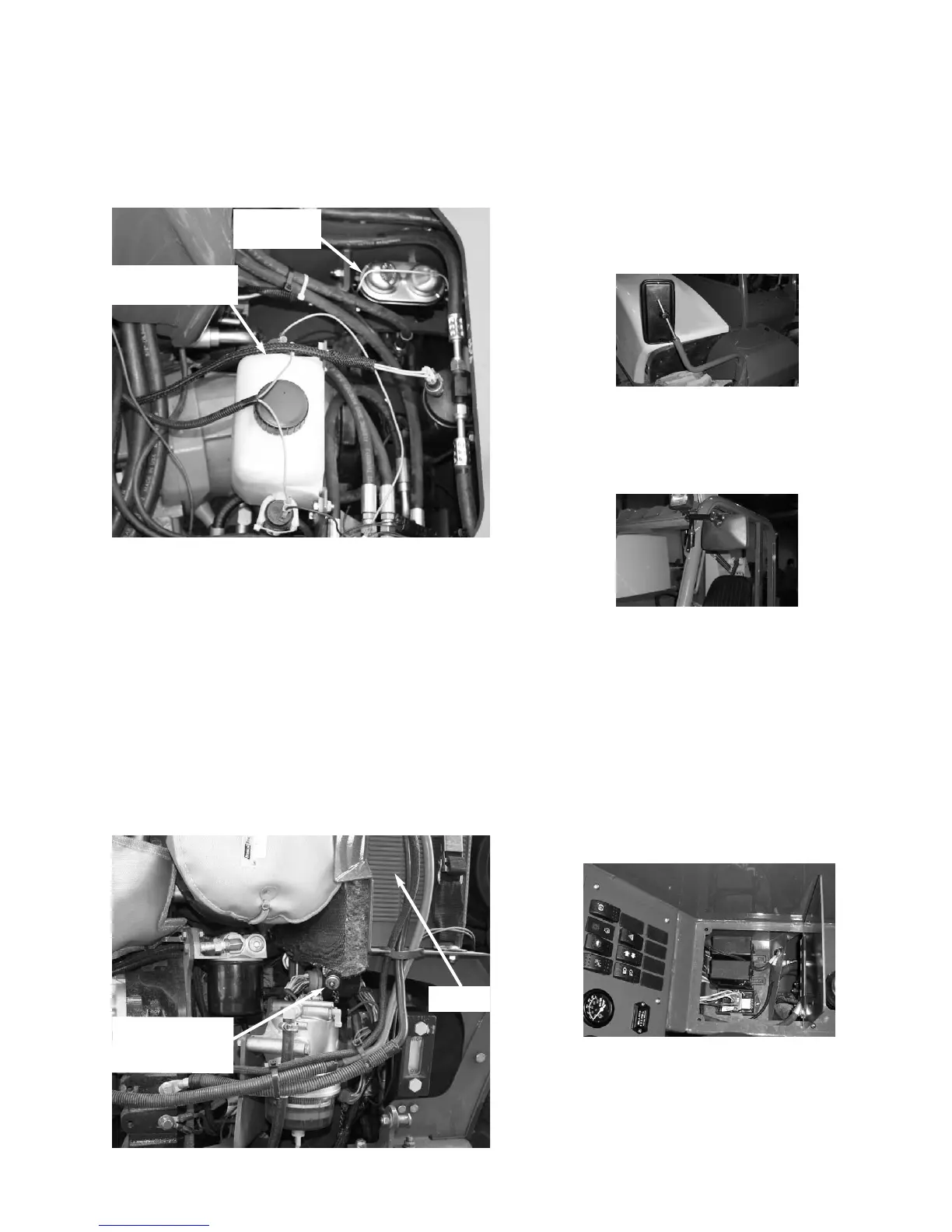

Windshield Washer
Fluid Reservoir
Brake Fluid
Reservoir
Left Side Rear View Mirror
Main Valve and
Steering Pressure
Test Port
Battery
Right Side Rear View Mirror
To Next Page
