50960066/AP0813 32 PRINTED IN U.S.A.
The proper sequence for correct machine operation is
to always engage the parking brake switch before shut-
ting off the engine; and to disengage the parking brake
ONLY after the engine is running. In an EMER-
GENCY, if it becomes necessary to STOP movement,
activate the parking brake switch to “ON.”
CHANGING ATTACHMENT TOOLS
The Telescopic Handler boom nose will accept Gehl
Quick-attach System attachment tools. The Quick-
attach System has a quick-release hookup and locking
mechanism for mounting framing-type or masonry-
type attachment tools to the boom nose.
Attaching
To pick up the attachment tool, proceed as follows:
1. Raise the boom slightly, extend it 2 to 3 feet (600-
900 mm) for better visibility, and tilt the Quick-
attach System forward.
2. Align the Quick-attach System squarely with the
back of the attachment tool.
3. Slowly extend the Quick-attach System and lower
the hooks under the attachment tool hookup bar.
4. Tilt the Quick-attach System back so that the lock
plate engages the attachment tool. This secures the
attachment tool to the Quick-attach System.
5. For an attachment tool with auxiliary hydraulics,
connect hoses to the quick-disconnect connectors
on the boom nose.
Exhaust Filter Cleaning Precautions
When the AUTO Exhaust Filter Cleaning is disabled,
the sytem has 3 levels of notification to advise the
operator to perform the exhaust filter cleaning. The 3
levels are as follows;
1. The Exhaust Filter Indicator
will illuminate, indicating the
the soot level in the filter is
slightly high. If conditions
are safe, the operator should
enable auto exhaust filter
cleaning or perform a manual
exhaust filter cleaning.
2. The Exhaust Filter Indicator and
the Amber Alert Indicator in
the exhaust filter gauge will
illuminate. The engine per-
formace will be reduced by
the ECU because the soot
level in the exhaust filter is
moderately high. If conditions
are safe, the operator should enable auto exhaust
filter cleaning. If conditions are not safe, the oper-
ator should move the machine to a safe location
and either enable the auto exhaust filter cleaning
or perform a manual exhaust filter cleaning.
3. The Exhaust Filter Indicator
and the Red Alert Indicator in
the exhaust filter gauge will
illuminate. The ECU will
further reduce engine per-
formance. Continuing to
operate the machine at this
level will set a “Service Only”
soot condition where the engine cannot clean the
exhaust filter itself. In this condition, contact your
authorized Gehl dealer.
PARKING BRAKE
NOTE: The parking brake mechanism within the
front axle is not designed for, and not intended to
be used as, the primary means of stopping move-
ment of the machine. Hydraulic braking provided
through the service brakes within the front axle is
the primary means for stopping movement.

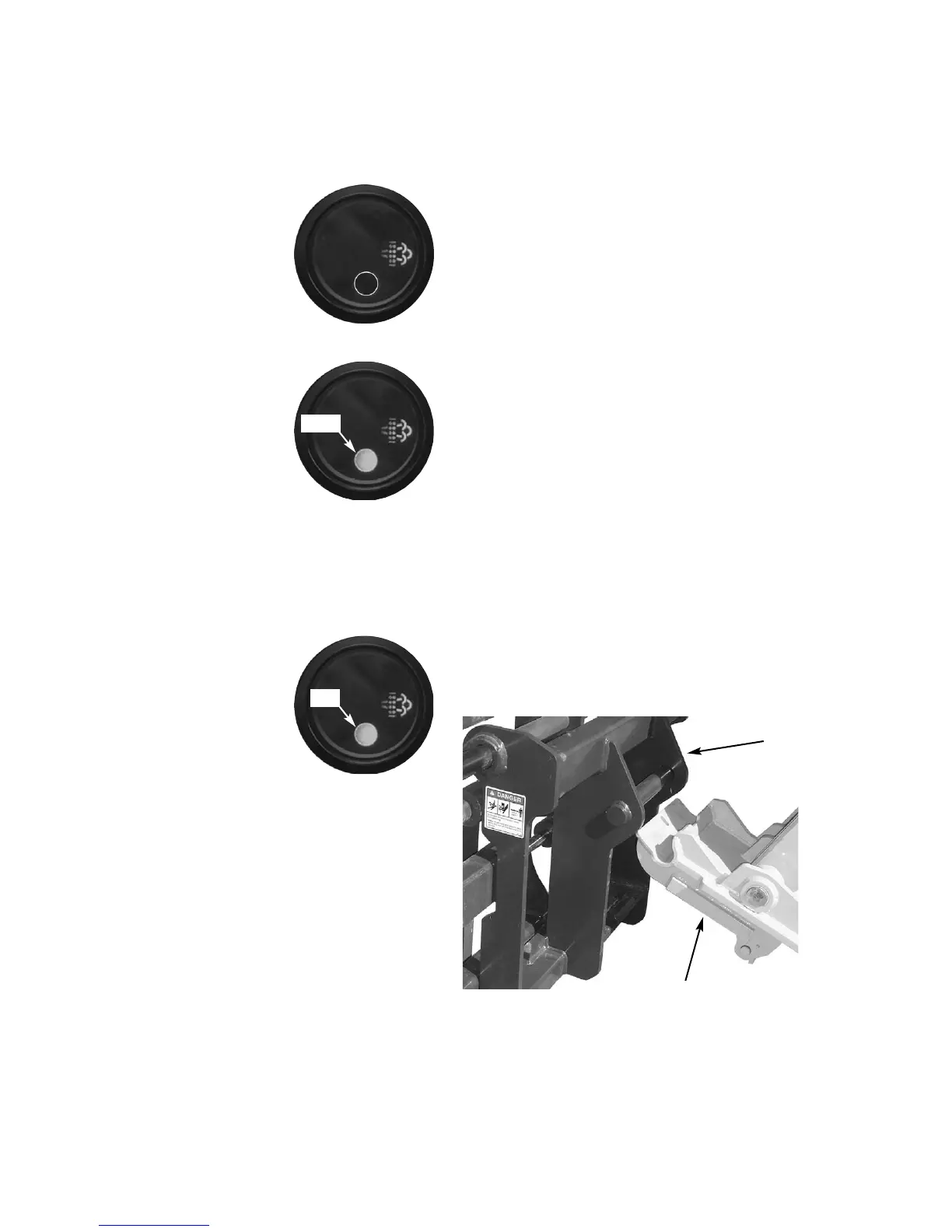

Amber
Red
Quick-attach System Tilted
Forward for Hookup
Attachment
Tool
To Next Page
