GEM 1441 cPos-X Installation, Operating And Maintenance Instructions

28 / 32
1434 µPos

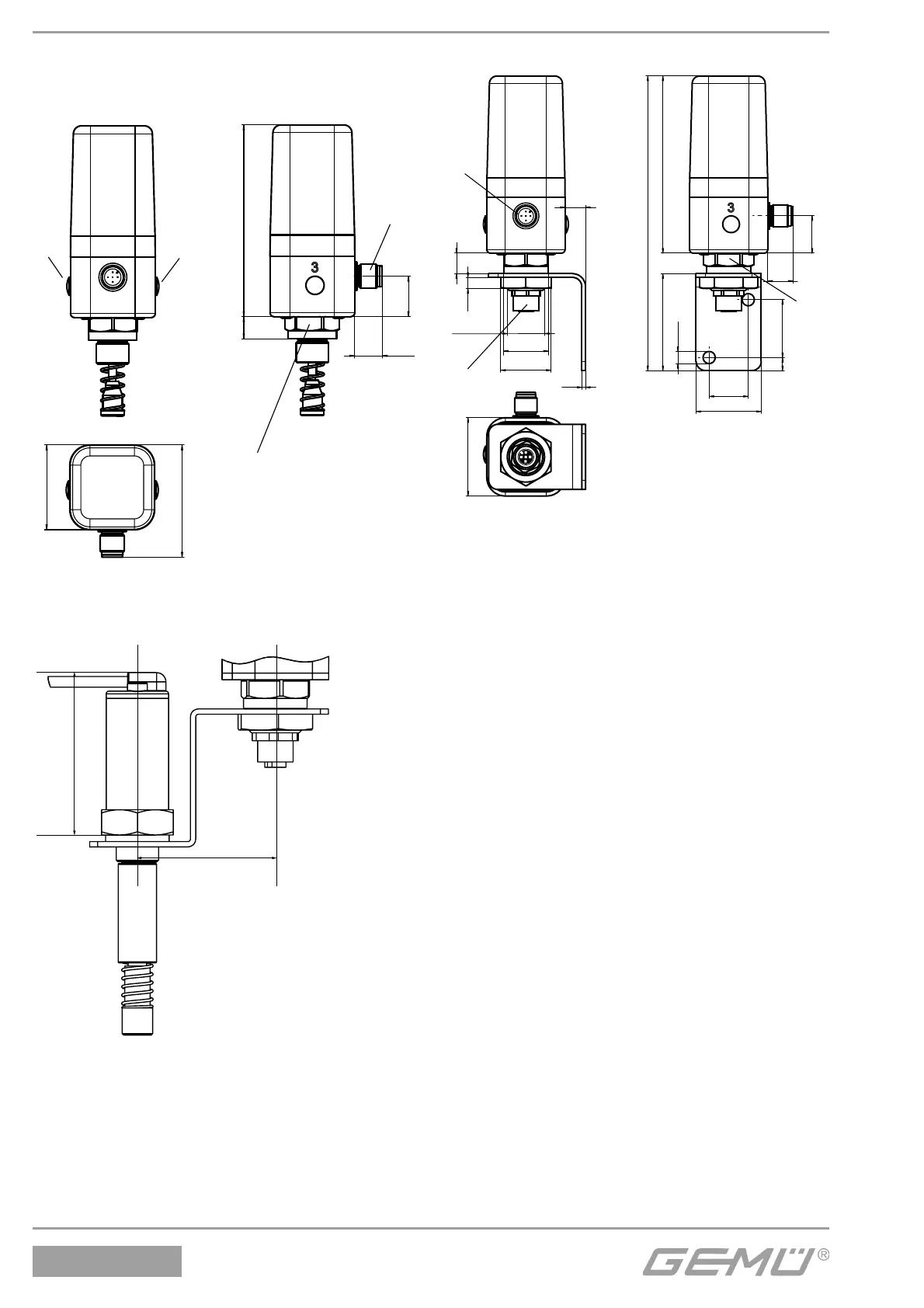

12 Dimensions
Direct mounting [mm]
X1
3
4
X
95
20
13,6
42
55,6
SW 20 for mounting kit
M12 x1, x = 9 mm
SW 24 for mounting kit
M16 x1, x = 11 mm
Mounting bracket [mm]
54
81,2
Remote mounting [mm]
20
42
6
11
M20x1,5
SW27
SW24
11
2
21
35
Ø 6,5
158
52
31
7
13,6
95
X1
X3
SW24

GEM 1441 cPos-X Specifications

General

Brand	GEM
Model	1441 cPos-X
Category	Valve Positioners
Language	English
