TECHNICAL SPECIFICATIONS
3 - LIST OF COMPONENTS
3.1 - EBS-1 models
2
1
3
4
1
2
4
5
1
2
4
13
11
8
6
13
7
12
5
11
10
9
E
B
S
-
0
2
-
3
E
3
16
3
15
14
15
16 18
3
18

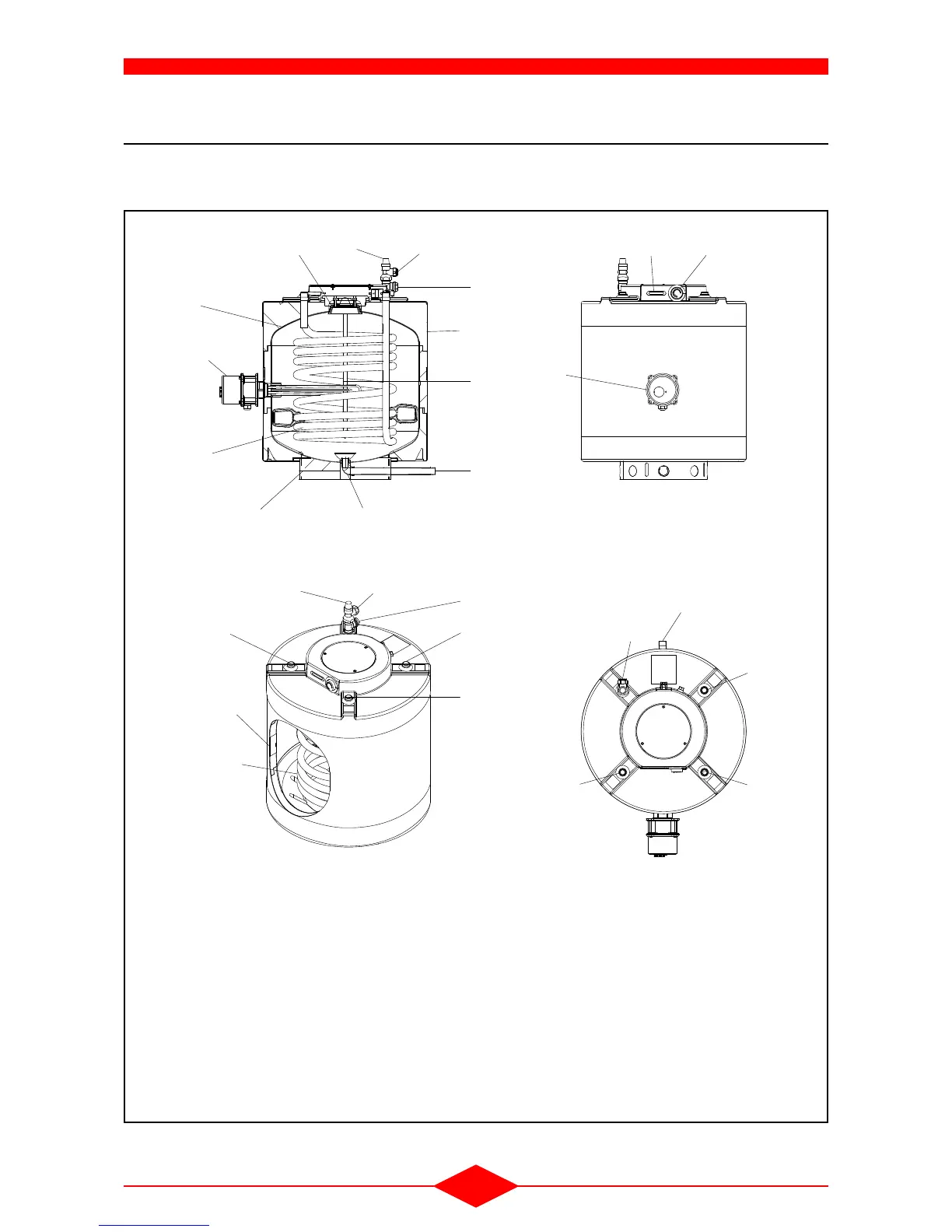

Fig. 2
1) Primary inlet
2) Domestic hot water outlet
3) Domestic hot water recycling
4) Primary outlet
5) Domestic cold water inlet
6) Hot water tank
7) Pocket for domestic hot water setting thermostat
bulb
8) Access flap
9) Domestic hot water temperature setting
thermostat
10)Thermometer
11)Stainless steel coiled pipe
12)Domestic cold water elbow and tube*
13)Polystyrene insulation
14)Base insulation under tank*
15)Immersion heater kit
16)7 bar P&T valve
17)Water overheating safety thermostat (90°C),
18)P&T valve drain
* Accessories to be installed on the tank before it is
put in place

geminox EBS-1 100 Specifications

General

Brand	geminox
Model	EBS-1 100
Category	Boiler
Language	English
