geminox THR 10-50 User Manual


23(5$7,21
  2SHUDWLQJGLDJUDP
3URJUDPPHVHTXHQFH
 3KDVH67$1'%<
The boiler is on standby awaiting a demand for
heat.
A: Start-up instruction.
I is given by the boiler regulator or by the domes-
tic hot water regulator.
 3KDVH)DQVSHHGULVHWLPH
This time ends as soon as the fan motor speed
reaches the load programmed for preventilation.
 3KDVH3UHYHQWLODWLRQWLPH
 3KDVH7DSHULQJWLPH
This time ends as soon as the programmed igni-
tion load is reached.
 3KDVH3UHLJQLWLRQWLPHV
Appearance of the ignition arc prior to opening
the gas valve, which occurs at the start of phase
35.
 3KDVH6DIHW\WLPHV
A flame signal should be present (ionization cur-
rent > 2.8 µA) before the safety time has elapsed.
If this does not occur, another ignition attempt is
made.
 3KDVH%&%XUQHURSHUDWLRQ
Burner operation following a demand for hot wa-
ter (display 6) or heating (display 7).
 3KDVH&'6KXWGRZQ
The change of operating position to standby is re-
ferred to as a “shut-down” and occurs when the
demand for heat disappears. The gas valve clos-
es and the combustion residues are evacuated
by post-ventilation.
 3KDVH%ORFNLQJWLPH
Blocking time, for test purposes (about 2 s).
 3KDVH&ORVXUHWLPH
Time required to arrive at the programmed air
flow rate.
 3KDVH3RVWYHQWLODWLRQWLPHV
The fan remains on during the post-ventilation
phase.
 3KDVH5HWXUQWRLQLWLDOSRVLWLRQ
Obligatory passage from the shut-down position
to standby. This phase is also used to bring the
gas control box to the standby position after ex-
ceptional events such as a reset.

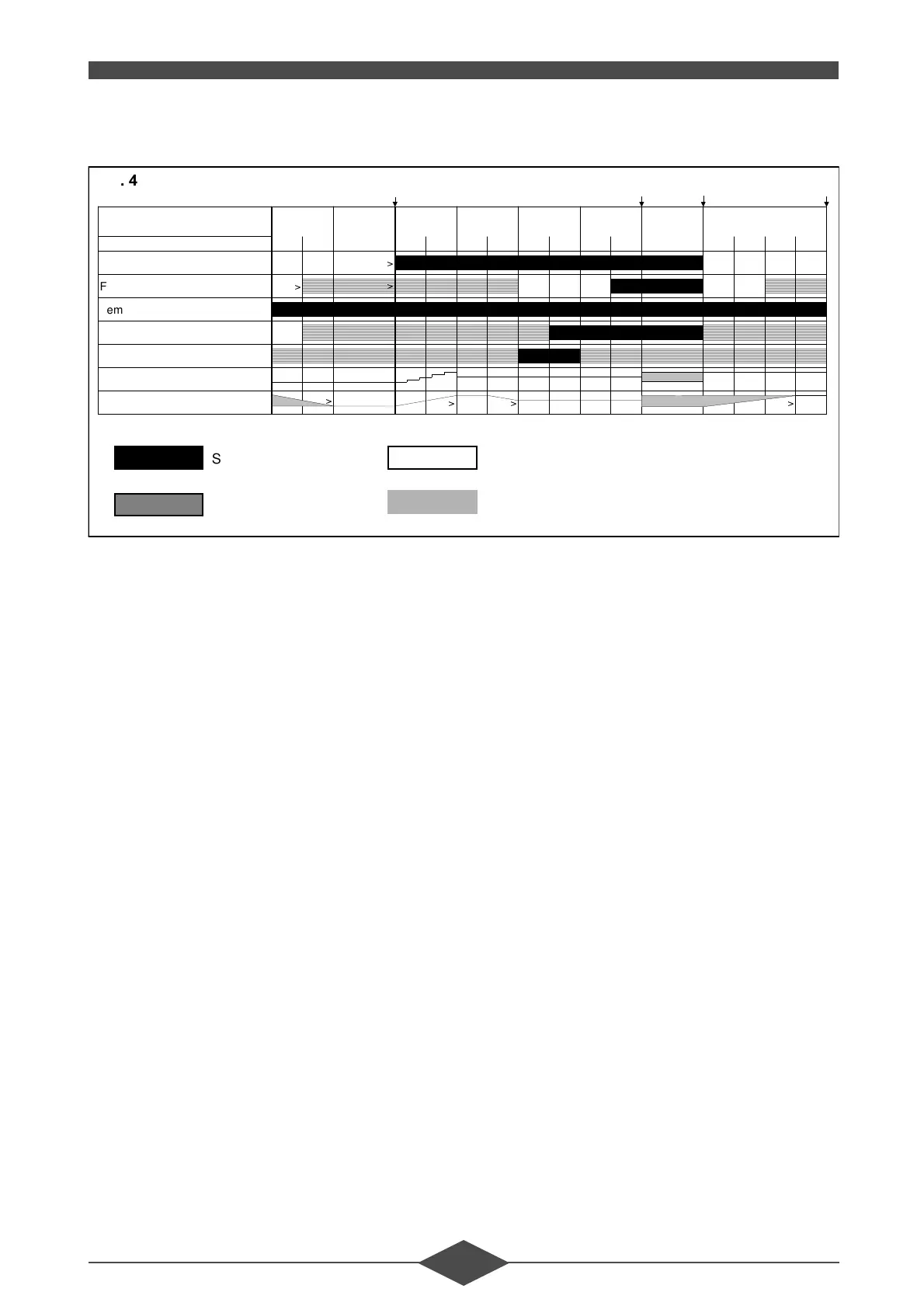

ABCD
Readout
90/123456./7. 8
Phase number 60 61 10 30 31 32 33 34 35 36 37 40 50 51 52 53
Heating demand
!
Flame signal
!
!
Temp. limiting safety device
Gas valve
Ignition
PWM
Fan speed
!
!! !
)LJ
Signal required
Signal unacceptable
> Condition required to move on the next stage
Range of possible speeds
