Installation (Cont.)

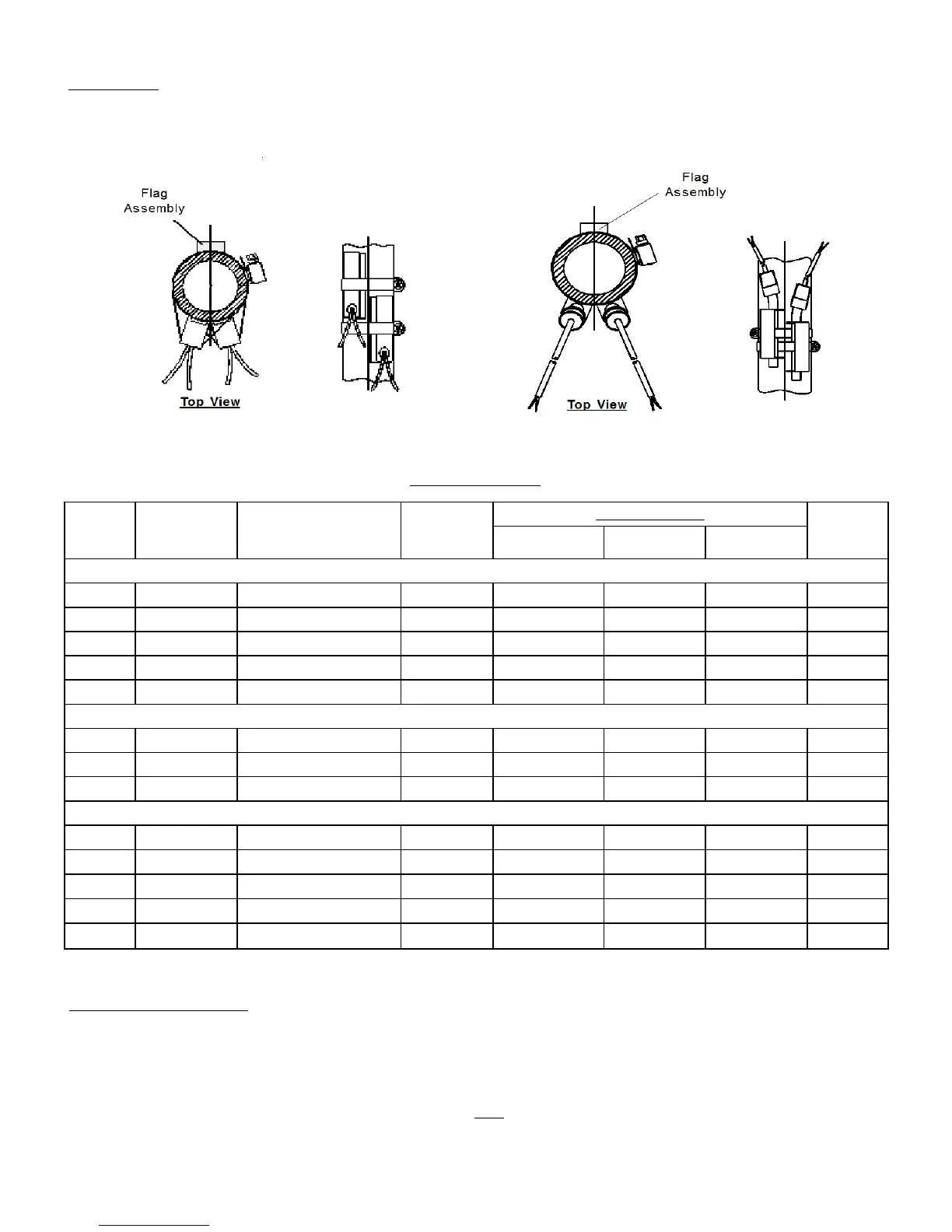

If it is necessary to locate two switch-points close together, two switch modules can be
positioned side-by-side and located 180
o
opposite of the flag assembly, as shown.
Switch Modules
Part
Number
SureSite
Type
Switch Rating/
Configuration
Max. Fluid
Temp (°F / °C)
Mounting Hardware
Switch
Housing
Material
Bracket / Spacer
Block
Clamp J-Box
Standard
85350 Standard 20 VA SPST, N.O. or N.C. 300 / 148 N/A N/A N/A Polysulfone
86435 Standard 20 VA SPST, N.O. or N.C. 300 / 148 N/A Included N/A Polysulfone
86567 Mini 20 VA SPST, N.O. or N.C. 300 / 148 N/A Included N/A Polysulfone
87480 Mini / Plastic 20 VA SPST, N.O. or N.C. 300 / 148 N/A N/A N/A Polysulfone
80469 Plastic 20 VA SPST, N.O. or N.C. 300 / 148 N/A N/A N/A Polysulfone
High Temperature
83140 All 20 VA SPST, N.O. or N.C. 750 / 398 Included N/A N/A 316 SS
83150 All 20 VA SPST, N.O. or N.C. 750 / 398 Included N/A N/A 316 SS
84320 All 20 VA SPDT, N.O. or N.C. 750 / 398 Included N/A N/A 316 SS
Explosion-Proof / High Temperature
83100* All 120 VAC, 10 Amp 750 / 398 Included Included Included 316 SS
83110* All 24 VDC, 10 Amp 750 / 398 Included Included Included 316 SS
83120* All 20 VA SPST, N.O. or N.C. 750 / 398 Included Included Included 316 SS
83130* All 20 VA SPST, N.O. or N.C. 750 / 398 Included Included Included 316 SS
84330 All 20 VA SPDT, N.O. or N.C. 750 / 398 Included Included Included 316 SS
* Factory Mutual approved for:
Explosion-proof for Class 1, Division 1, Groups C & D and Class 1, Division 2, Groups B, C & D; Dust ignition proof per Class 2,
Division 1, Groups E, F & G and suitable for Class 3, Division 1, Hazardous Location, Indoors (Ref. File #J.I. 0A8A3.AE). Also
CSA certified for Class 1, Division 1, Groups B, C & D (Ref. Files LR22666-22 and LR22666-24).
Note
For Standard Unit installation instructions, see Mounting Diagram “A”
For all other part numbers listed above, see Mounting diagram “B”, “C” or “D”
