Wiring Diagrams (Cont.)
Switch Module Troubleshooting
Condition Possible Cause Solution
Intermittent Switching
or
Not Latching
Positioned Incorrectly Reposition Switch Modules
Switch not in Indicating Range Reposition Switch Modules
Incorrect Mounting Hardware See Appropriate Mounting Diagram
Incorrect Wiring Between
Switch & Load
Correct Wiring
(See Wiring Diagrams)
Positioned Incorrectly Reposition Switch Modules
Switch Not in Indicating Range Reposition Switch Modules
Incorrect Mounting Hardware See Appropriate Mounting Diagram
Incorrect Wiring Between
Switch & Load
Correct Wiring
(See Wiring Diagrams)
Switch Rating Exceeded
Replace Switch
(See Appropriate Rating Diagram)
Switch Not Switching
Switch Remains Open
or
Closed At All times
Gems Sensors & Controls | One Cowles Road | Plainville, CT 06062-1198
Telephone: 1-800-378-1600 | Email: info@gemssensors.com | www.GemsSensors.com

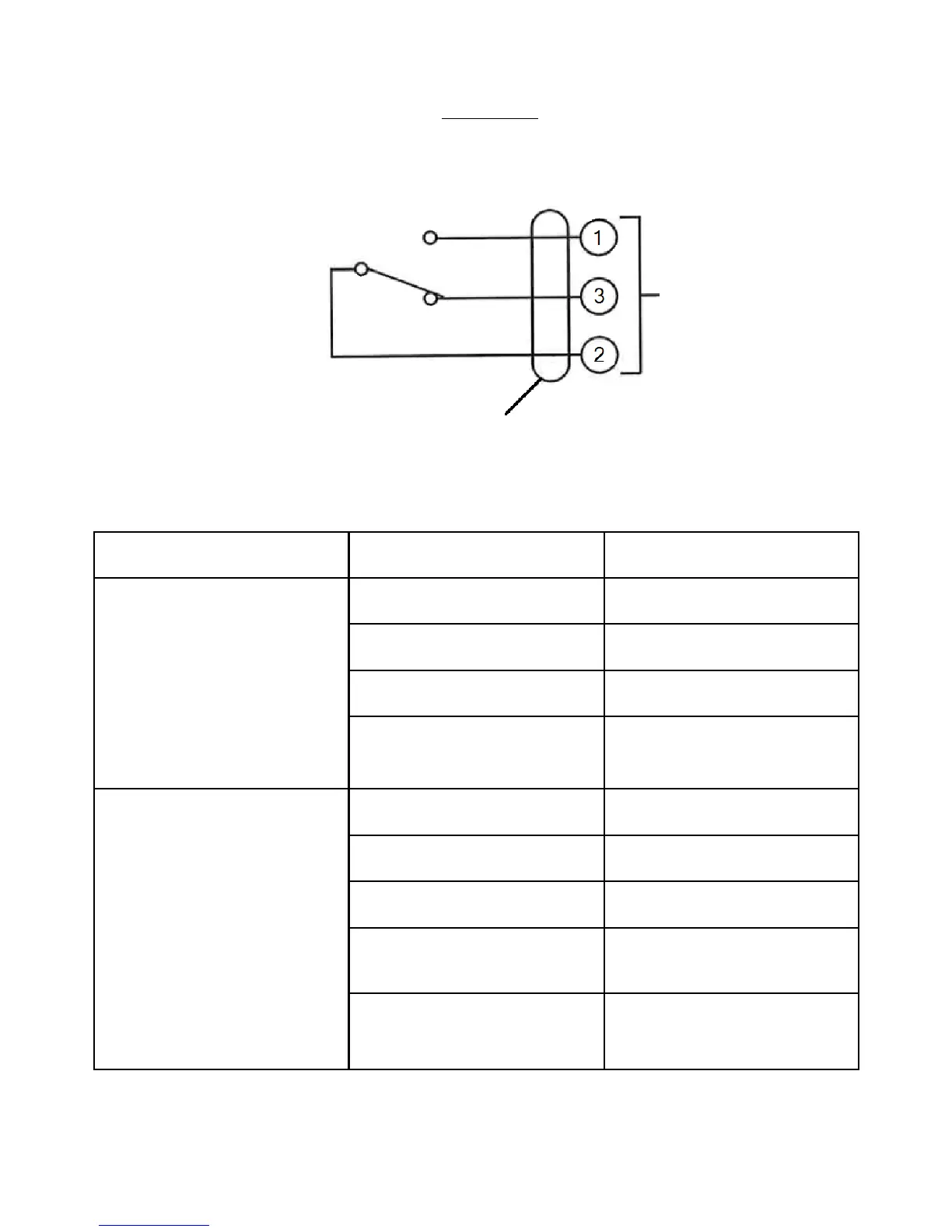

Part Numbers
84320, 84330
- Dry Condition / J-Box at BTM
RED
WHT
BLK
3-PIN
TERM.
3 COND.
CABLE
