8
the gland base from the bracket.

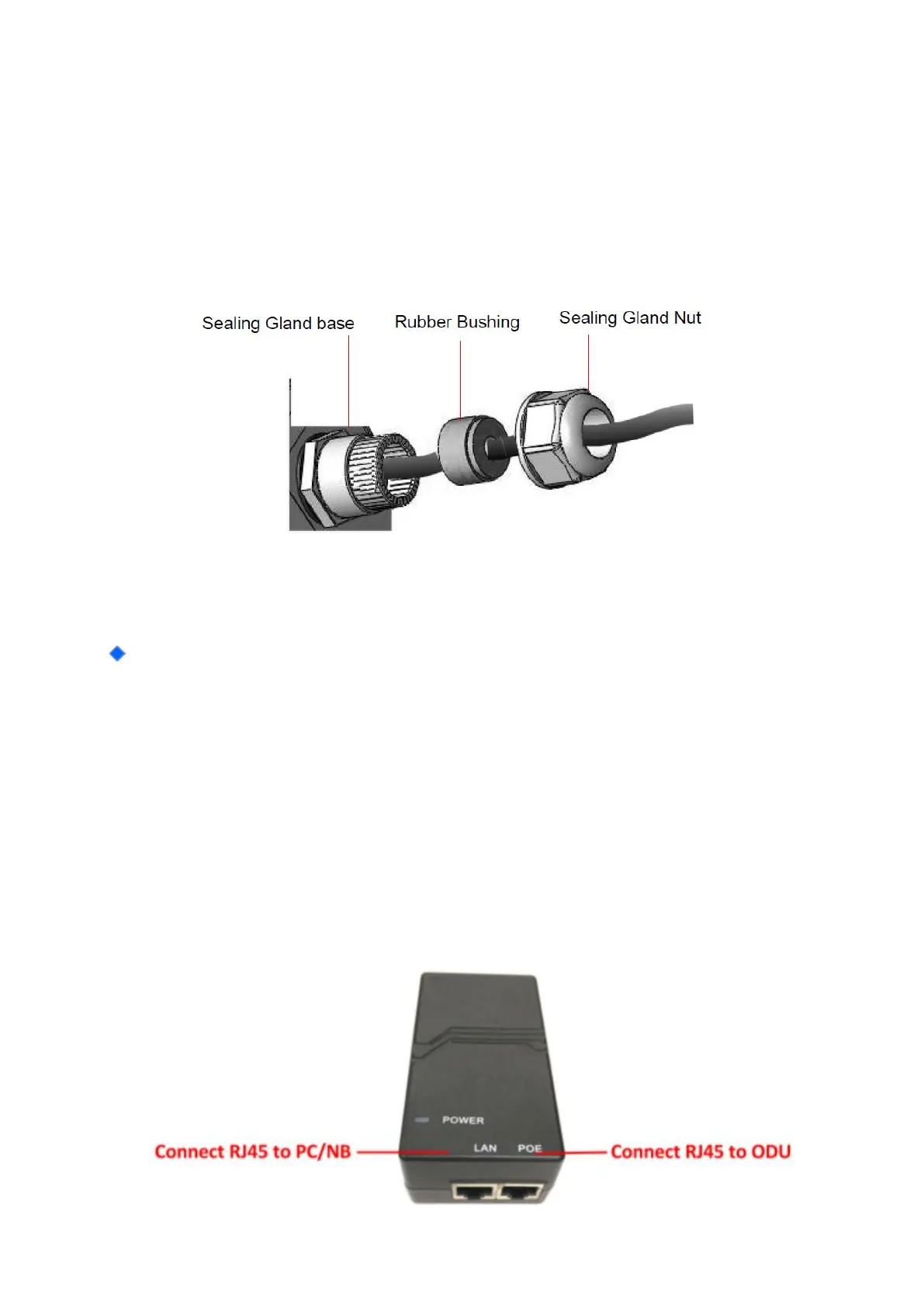

• Insert the cable into the sealing gland base and connect it to the
RJ-45 connector at the bottom of the CPE. Make sure the connector
is completely inserted and tightened.
• Insert the rubber bushing on the cable into the gland base.
• Tighten the gland nut. Use the dedicated tool for fastening the
sealing glands.
PoE Connection
1. It is assumed that the RJ-45 is already connected to the LTE outdoor
CPE. Assemble an RJ-45 connector with a protective cover on the
other end of the LTE outdoor CPE cable.
2. Connect the other end of the RJ-45 cable to the PoE adaptor which
labeled “PoE”.
3. Connect RJ45 cable from PoE adaptor which label “LAN” to a
PC/NB/Hub/Switch.
