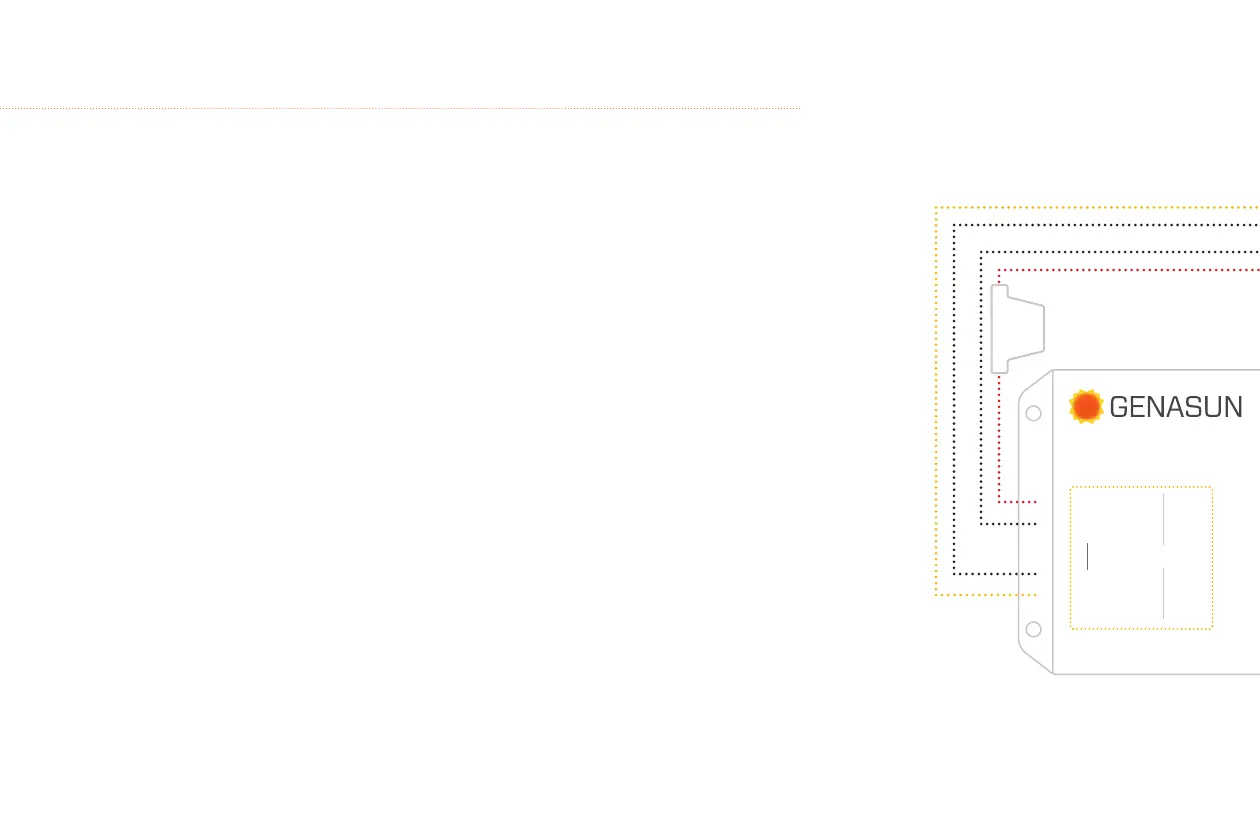

10A IN-LINE
FUSE
VOLTAGE BOOSTING MPPT SOLAR CHARGE CONTROLLER
PANEL
PANEL
BATT
BATT
+
-
-
+
8A
MAX
COMMON
Installation & System Connections:
MOUNTING
Mount the controller near your battery securely using the holes provided on the
enclosure’s flanges or with a means appropriate to the application.
• Mount near battery.
• The GVB-WP can be mounted in any orientation.
• Do not mount in direct sunlight or near a source of heat.
• Allow adequate airflow around the controller to achieve maximum output capability.
e
• Connections should be made according to Article 690 of the National Electrical Code (NFPA 70)
or the standards in force at the installation location.
• Electrical connections may be made in any order; however the
sequence below is recommended.
Note: Make sure to inspect the controller at least once per year to ensure proper
performance. Please see the Inspection & Maintenance section in this guide.
