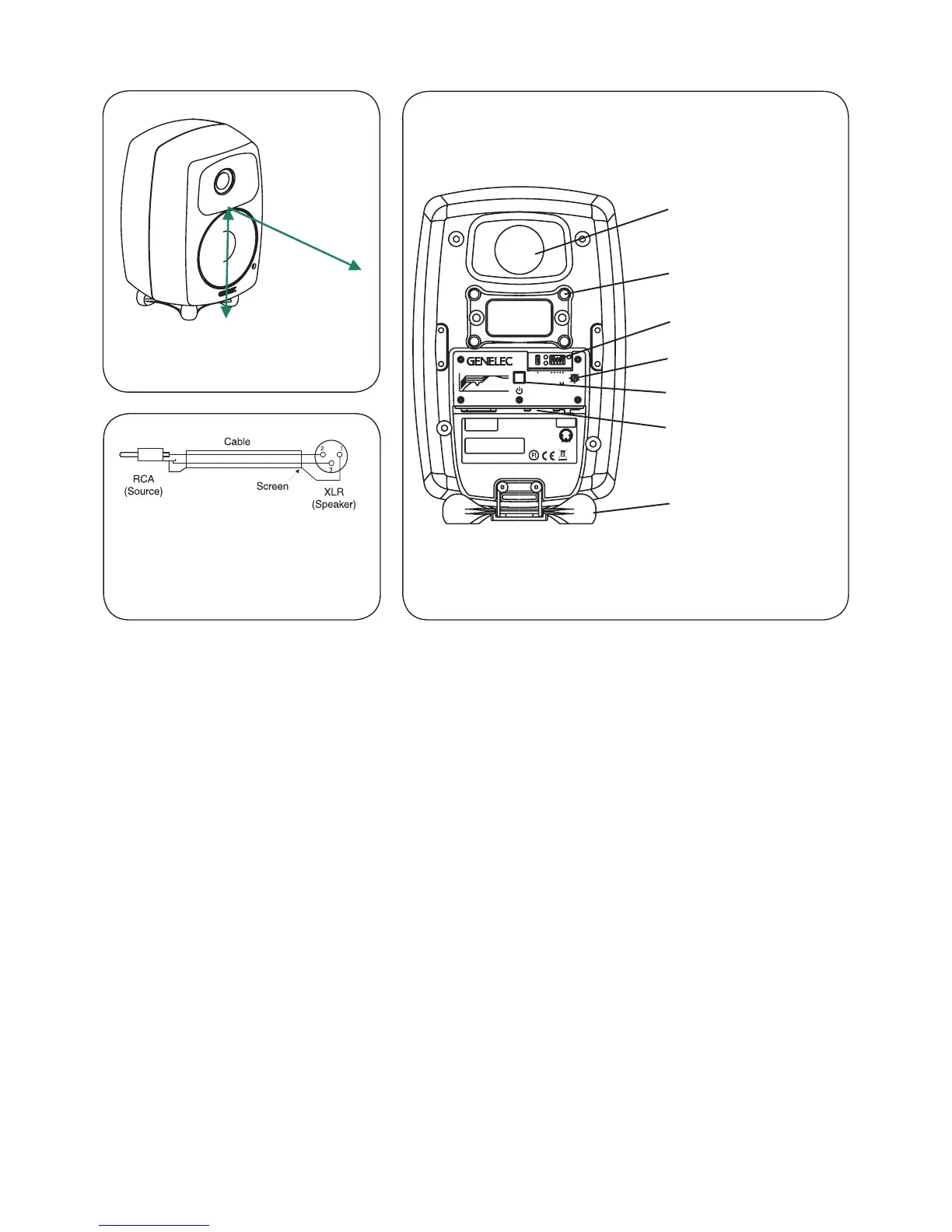

Figure 1: Location of the acoustic
axis
Figure 2: Type of cable needed if
unbalanced source is used (ex-
ample shown is RCA output to the
XLR input)
Figure 3: Control and connector layout on the rear panel
of the 8030C.
Setting the tone controls
The frequency response of the 8030C can be
adjusted to match the acoustic environment by
setting the tone control switches on the rear panel.
The controls are “Desktop”, “Treble Tilt”, “Bass Tilt”
and “Bass Roll-O”. An acoustic measuring system
is recommended for analyzing the eects of the
adjustments, however, careful listening with suitable
test recordings can also lead to good results if a
test system is not available. Table 1 shows some
typical settings in various situations. Figure 4 shows
the eect of the controls on the anechoic response.
Desktop
The desktop low frequency control (Switch 1)
attenuates the bass frequencies around 160 Hz by
4 dB. This feature is designed to compensate for
the boost often occurring at this frequency range
when the loudspeaker is placed upon a meter
bridge, table or similar reective surface.
Treble Tilt
Treble Tilt (switch 2) attenuates the treble response
above 4 kHz by 2 dB, which can be used for
smoothening down an excessively bright sounding
system.
Bass Roll-O
Bass Roll-O (switch 3) activates a -4 dB lter to
the lowest bass frequencies (55 Hz). This can be
used for compensating excessively heavy bass
reproduction typically caused by loudspeaker
placement near room boundaries.
