Genelec 8030C User Manual

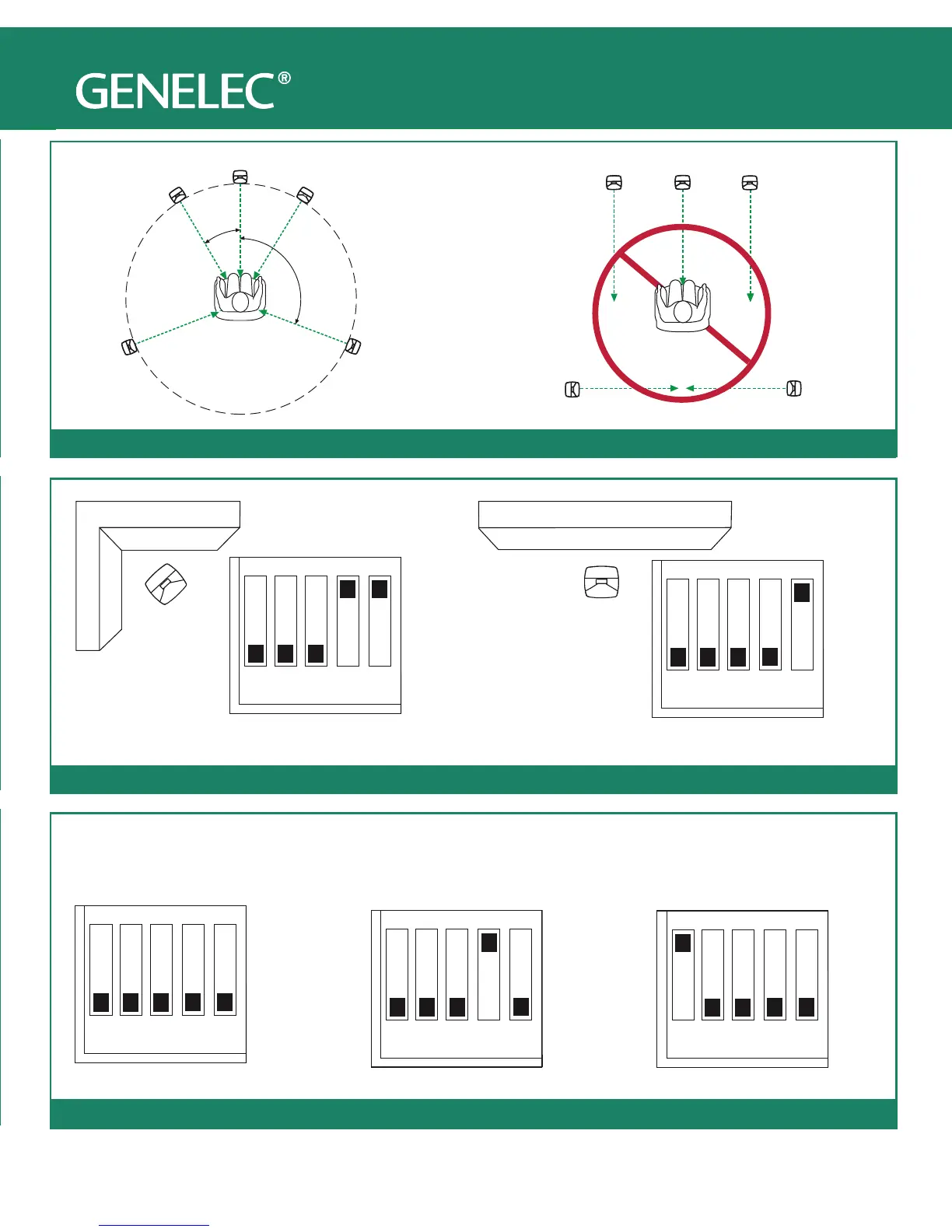

Quick setup guide 8030
Speaker Placement
Symmetry of Room Installation
B
B
A A
LS
RS
L
R
C
LS
RS
L
R
C
Vertical Angle
Speaker Angle
L
R
C
LS
RS
30˚
110˚
LS
RS
L
R
C
Suggested Tone Control Settings
Using Tone Controls
Against a wall
Corner
ON
OFF
1 2 3 4 5
-6 dB Bass Tilt
ON
OFF
-4 dB Bass Tilt
ON
OFF
TONE CONTROL
Free standing in a damped room Free standing in a reverberant room
ON
OFF
Desktop control
ON
OFF
-2 dB Bass Tilt
Nearfield or console
bridge setting
1 2 3 4 5
1 2 3 4 5
TONE CONTROL
1 2 3 4 5
TONE CONTROL
1 2 3 4 5
Quick setup guide 8030

Genelec 8030C Specifications

General

Amplifier Power	50 W (LF) + 50 W (HF)
Type	Active Studio Monitor
Configuration	2-way
Crossover Frequency	3 kHz
Driver Size	5 inch (LF), 3/4 inch (HF)
Maximum SPL	≥104 dB
Inputs	1 x XLR
Enclosure Type	Bass-reflex
