Quick setup guide 8030

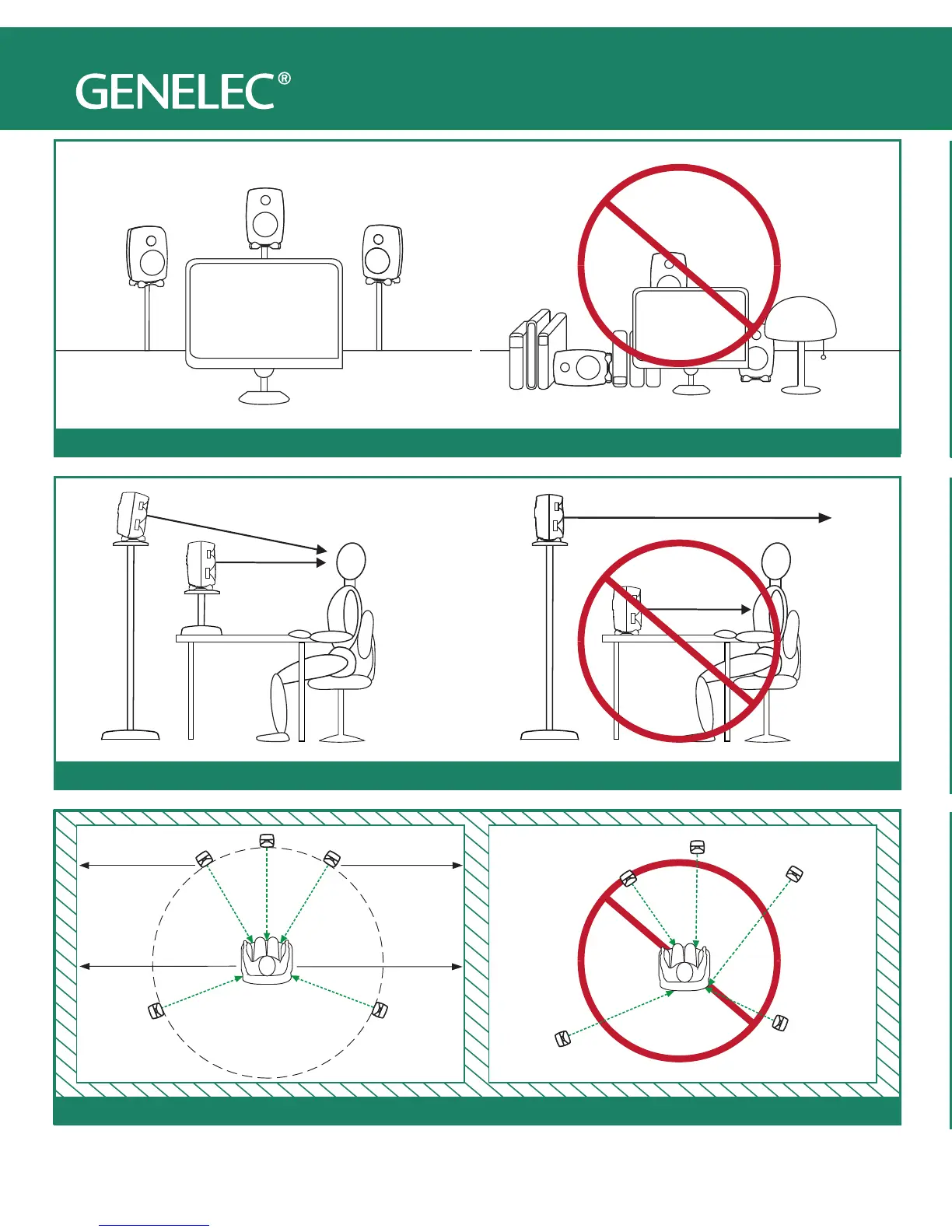

Speaker Placement
Symmetry of Room Installation
B
B
A A
LS
RS
L
R
C
LS
RS
L
R
C
Vertical Angle
Speaker Angle
L
R
C
LS
RS
30˚
110˚
LS
RS
L
R
C
Suggested Tone Control Settings
Using Tone Controls
Against a wall
Corner
ON
OFF
1 2 3 4 5
-6 dB Bass Tilt
ON
OFF
-4 dB Bass Tilt
ON
OFF
TONE CONTROL
Free standing in a damped room Free standing in a reverberant room
ON
OFF
Desktop control
ON
OFF
-2 dB Bass Tilt
Nearfield or console
bridge setting
1 2 3 4 5
1 2 3 4 5
TONE CONTROL
1 2 3 4 5
TONE CONTROL
1 2 3 4 5
