Generac Portable Products 3,500 Watt Generator
4
12 Volt DC, 10 Amp Receptacle — Use this receptacle
with battery charge cables to charge a 12 Volt battery.
120 Volt AC, 15 Amp Receptacles — May be used to
supply electrical power for the operation of 120 Volt AC,
15 Amp, single phase, 60 Hz electrical lighting, appliance,
tool and motor loads.
120 Volt AC, 30 Amp Receptacle — May be used to
supply electrical power for the operation of 120 Volt AC,
30 Amp, single phase, 60 Hz electrical lighting, appliance,
tool and motor loads.
120/240 Volt AC, 20 Amp Receptacle — May be used
to supply electrical power for the operation of 120 and/or
240 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
Circuit Breakers (AC) — Each receptacle is provided
with a circuit breaker to protect the generator against
electrical overload. Breakers are "push to reset" type.
Fuel Shut Off Valve — Controls fuel supply to engine.
Fuel Tank — Capacity of 4 U.S. gallons.
Grounding Wing Nut — Provides a tie-point for
connecting the generator frame to earth ground.
Idle Control Switch — The idle control runs the engine
at normal (high) speeds when there is a load present and
runs the engine at idle (low) speeds when a load is not
present. This feature greatly improves fuel economy,
extends the life of the engine, and reduces engine noise.
Run/Stop Switch — Must be in “Run” position to start
engine. Set to “Stop” to stop a running engine.

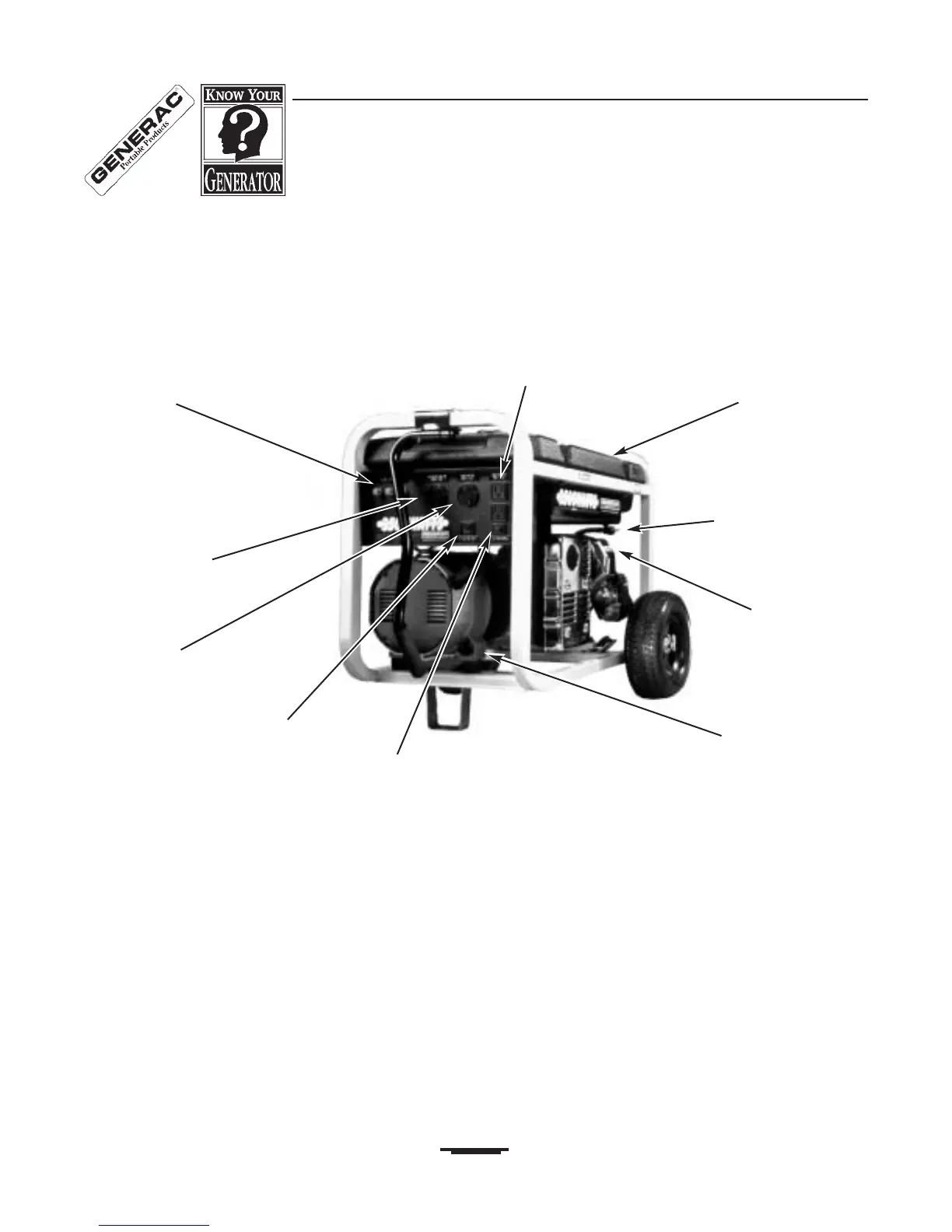

KNOW YOUR GENERATOR
Read this owner’s manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Circuit Breakers (AC)
Fuel Tank
120 Volt AC, 30 Amp
Receptacle
Run/Stop Switch/
Engine Controls
120/240 Volt AC,
20 Amp Receptacle
12 Volt DC, 10 Amp
Receptacle
120 Volt AC, 15 Amp
Receptacles
Idle Control Switch
Grounding Wing Nut
Fuel Shut–Off
Valve
