Generac Portable Products 2,500 PSI High Pressure Washer
44
High
Pressure
Outlet
Pump equipped with Automatic
Cool Down System
Spray Gun
Quick Connect Nozzle Storage
Water Inlet
Oil Fill Cap
Pressure
Control
Knob
High Pressure Hose
Fuel Tank
View of
Pump
Throttle Lever
Choke Lever
Recoil Starter
(on front of engine)
Air Cleaner
Chemical Injection Tube

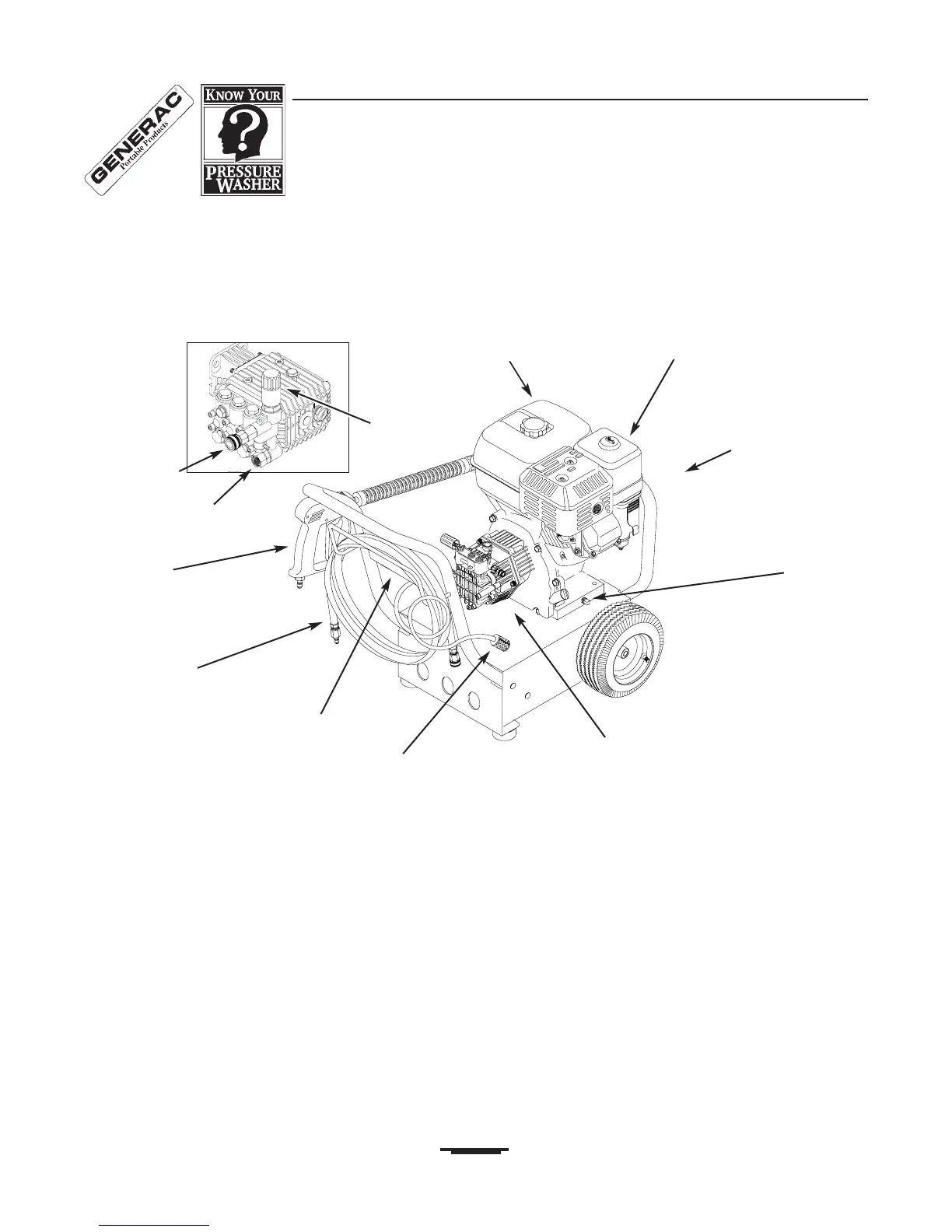

KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the location of the controls. Save this
manual for future reference.
Air Cleaner — Dry type filter element limits the amount
of dirt and dust that gets in the engine.
Automatic Cool Down System — Cycles water out of
pump when temperature reaches 140°-145°F.
Chemical Injection Tube—Used to siphon chemical
from the detergent container to the pump.
Choke Lever — Prepares a cold engine for starting.
Fuel Tank — Fill engine with regular unleaded gasoline
here.
High Pressure Hose — Connect one end to water
pump and the other end to spray gun. Store hose on hook
on the rear of the unit
High Pressure Outlet — Connection for high pressure
hose.
Oil Fill Cap —Fill engine with oil here. See engine
owner’s manual for oil requirements.
Pressure Control Knob — Varies the pressure of the
high pressure spray.
Pump — Develops high water pressure.
Quick Connect Nozzle Storage — Place all quick
connect nozzles here for ready access.
Recoil Starter — Used for starting the engine manually.
Spray Gun — Controls the application of water onto
cleaning surface with trigger. Includes safety latch.
Throttle Lever—Sets engine in starting mode for recoil
starter and stops a running engine.
Water Inlet — Connection for garden hose.
To Next Page
