1.2.3 BATTERY CONNECTION
The battery shipped with the generator has been provided fully charged. •
Caution must be taken when connecting the battery.
NOTE:
A battery may lose some of it’s charge when not in use for prolonged
periods of time.
Cut the tie wrap cable holding the RED and BLACK battery cables to •
the stator.
Connect the RED battery cable to the battery Positive terminal (+). •
After making sure that the connection is tight, slip the rubber boot over
the terminal connection.
Connect the BLACK battery cable to the battery Negative terminal (–). •
Make sure the connection is tight.
Double check all connections to ensure they are in the correct location •
and secure. See Figure 3.
Figure 3 - Battery Connections
Section 1 - General Information
Negative
Cable
Positive
Cable

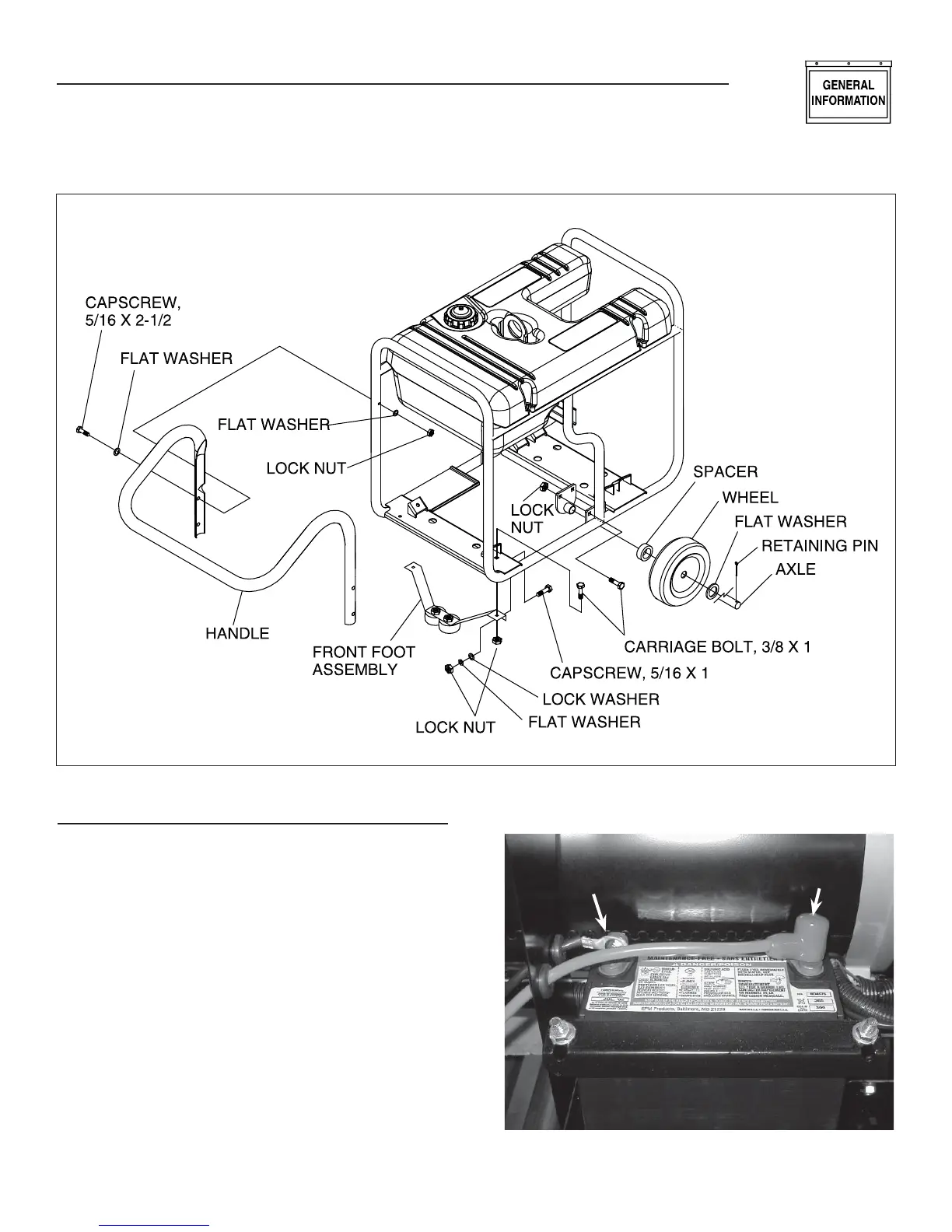

Figure 2 - Handle Assembly
To Next Page
