Generac Power Systems 04389-1, 04456-1, 04390-1

ITEM PART NO. QTY. DESCRIPTION
1 0D5694 1 CASTING, TWIN REGULATOR HOUSING
2 0C5765 1 SOLENOID, TWIN REGULATOR
3 0C4647 1 GASKET , SOLENOID
4 0C4680 1 PLUNGER, LP REGULATOR ASSEMBLY
5 0C6070 1 SPRING-SOLENOID, PLUNGER
6 022985 4 WASHER, FLAT #6
7 022264 4 WASHER, LOCK M4
8 075475 4 SCREW PPHM M4-0.7 X 10
9 0C5760A 1 JET, GN 410 ENGINE LP (7KW)
10 0C6606 2* BARBED STRAIGHT 1/2NPT x 1/2
11 097934 2* O-RING, CHECK VALVE
12 0C4645 2* ADJUSTER SCREW, TWIN REGULATOR
13 0C5761 2* LEVER, REGULATOR
14 0C5968 2* SUPPORT, INLET SEAL
15 0C6066 2* SEAL, INLET
16 0C5759 2* PIN, PIVOT ARM
17 0C5764 2 SPRING, REGULATOR
0C5764A 1 SPRING, REGULATOR (7KW)
18 070728 4 SCREW, PFHMS M3-0.5 x 5
070728 2 SCREW, PFHMS M3-0.5 x 5 (7KW)
19 0C6069 2* GASKET, DIAPHRAGM
20 0C5762 2* COVER, TWIN REGULATOR
ITEM PART NO. QTY. DESCRIPTION
21 045764 16 SCREW, TAPTITE M4X8 BP
045764 8 SCREW, TAPTITE M4X8 BP (7KW)
22 0C6731 2* RIVET, POP .118 X .125
23 0C6067 2* SUPPORT, DIAPHRAGM
24 0C4706 2* DIAPHRAGM, TWIN REGULATOR
25 0C6068 2* CAP, DIAPHRAGM SUPPORT
26 0C4643A 2* INLET, TWIN REGULATOR 11.11 DIA.
27 026073 1 PLUG, STANDARD PIPE 1/8 STEEL
SQUARE HEAD
28 0A4032 2* PIN, LIMITED ADJUSTMENT
29 0D3308 4 WASHER, FLAT M3 X 10mm O.D.
0D3308 2 WASHER, FLAT M3 X 10mm O.D. (7KW)
30 0C4643 1 INLET, TWIN REGULATOR NO HOLE -
NOT SHOWN (7KW)
31 028414A 1 BARBED STRAIGHT 1/8"NPT X 1/4"
32 0D5698A 1 JET IDLE PRIMER PHILLIPS HD
33 0C5760B 1 JET, GT760 CYL 1 NAT GAS
34 0C5760C 1 JET, GT760 CYL 2 NAT GAS
35 0C5760D 1 JET, GT 760 LP CYL 1
36 0C5760E 1 JET, GT760 LP CYL 2
37 0D3973 2 PLUG, EXPANSION 16mm
* A QUANTITY OF 1 IS TO BE USED ON 7KW HOME STANDBY
1
2
5
4
10
3
6
7
8
12
11
28
26
15
14
17
13
22
23
24
25
19
20
18
29
16
21
31
18
29
16
26
14
15
17
13
21
20
19
24
22
25
23
10
9
28
11
12
27
37
35
32
10
33
34
37
36
FOR GT 760
ENGINE ONLY
32
52 Generac
®
Power Systems, Inc.
Section 7 — Exploded Views and Parts Lists
Guardian Air-cooled 7 kW, 12 kW and 15 kW Generators

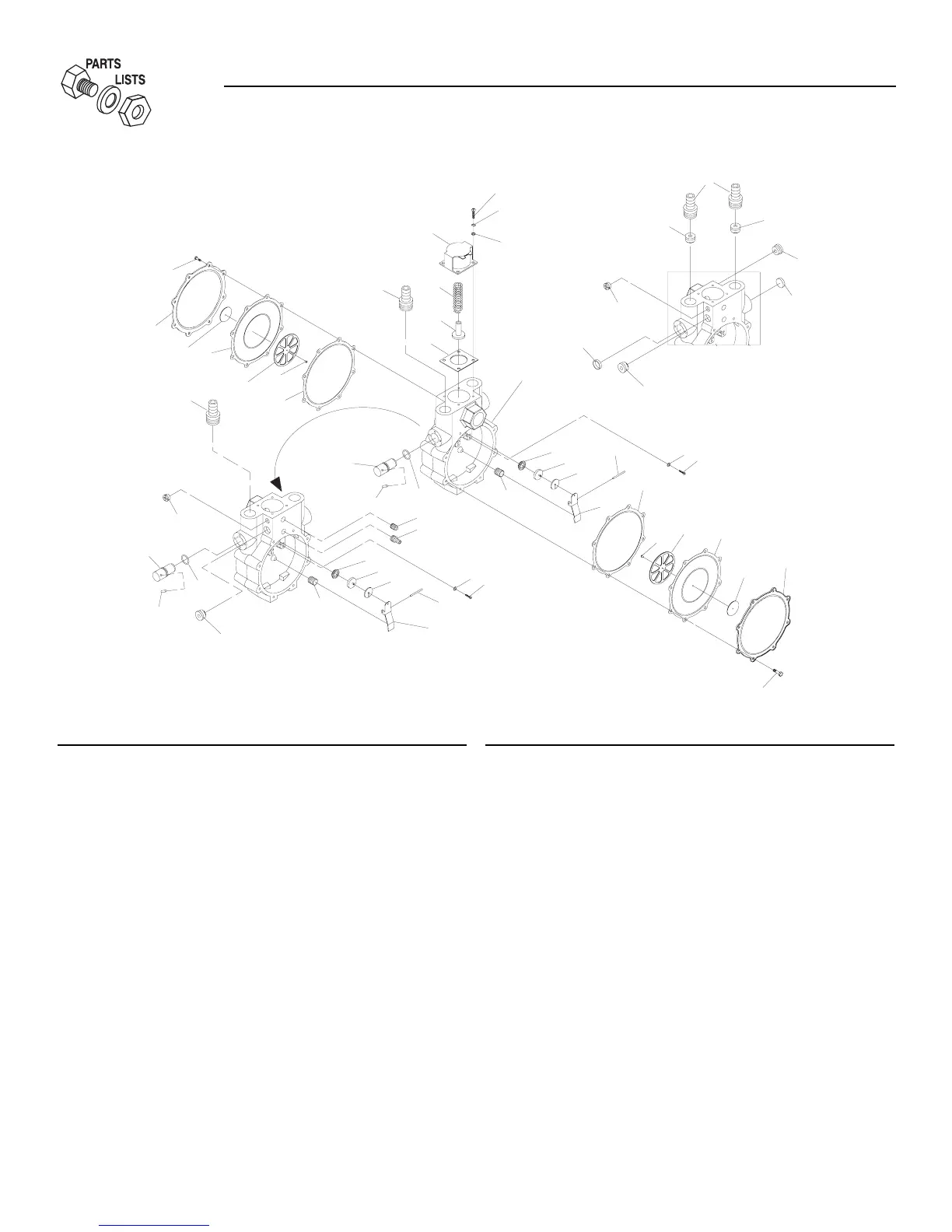

Gas Regulator – Drawing No. 0D8720-B
