Section 7 — Electrical Data
Air-cooled 7 kW, 12 kW and 15 kW Generators

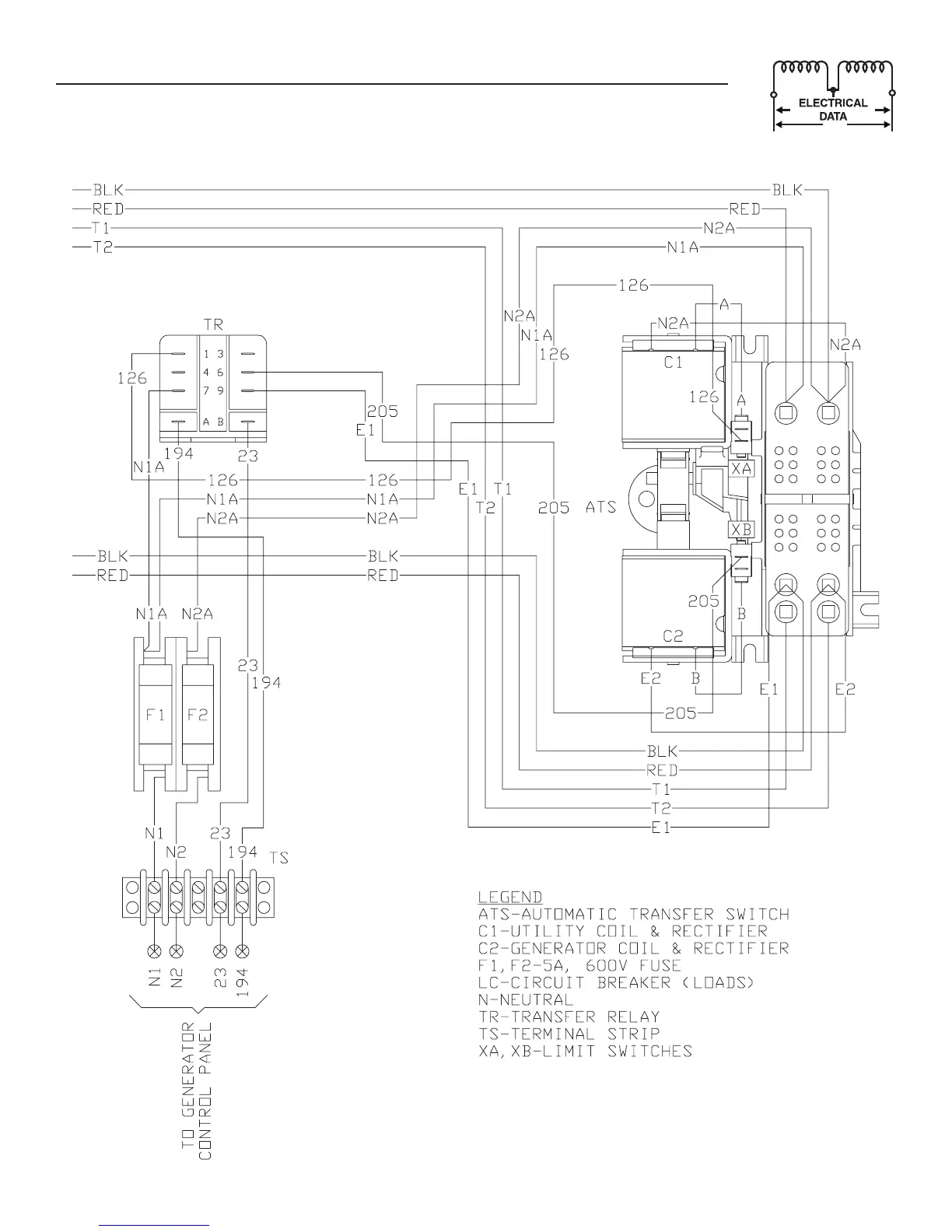

Wiring Diagram – 12 Circuit Load Center – Drawing No. 0E7687$
