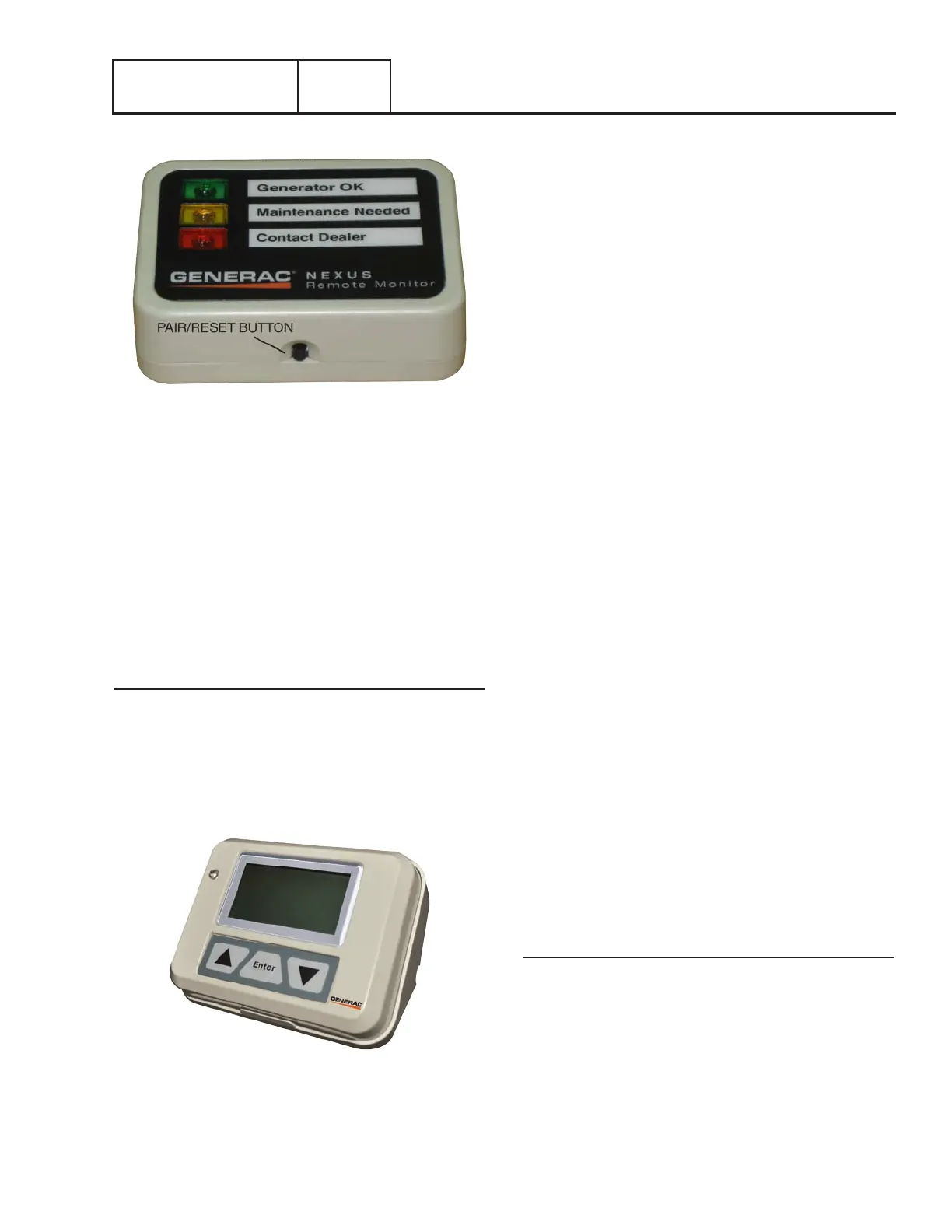

Figure 25. Location of Pair/Reset Button
6. Proceed with the “Re-Assemble the Generator” section
7. If the two modules fail to pair up within 30 seconds, the
yellow LED will stop flashing and the red LED will begin to
flash. If this happens proceed as follows:
•Press and release the Pair/Reset button to stop the red LED
from flashing.
•Check that good non-rechargeable AAA 1.5V batteries are
installed.
•Check the wiring to make sure all the plugs are fully insert-
ed.
•Repeat the pairing process from step 21A.
Results
1. If the link is established, discontinue troubleshooting.
2. If the link continues to fail, replace the wireless remote
and transmitter.
WIRELESS ADVANCED MODULE
Figure 26. Wireless Advanced Module
The wireless display system consists of two identical radio
transceivers, one mounted near the Generator and the other
(the one with the display), should be in a convenient viewing
location. The system has a “line of sight” range of about 300
feet but this will be reduced if the signal has to go through
walls, floors, etc.
NOTE: Some building materials may completely block the
passage of the signal. For example: steel beams, metal
siding, foil radiant barrier insulation.
The display is intended to show the status of the generator and
warn you if the system is in an alarm state. It also provides the
following additional functions:
•An independent (of the generator Alarm Log) time/date
stamped history of Generator events such as starting and
stopping.
•Allows remote starting and stopping of the generator.
•Facility to set an exercise time and day from the display.
•A separate battery backed clock (with date) which is
synchronized to the generator clock. If power is removed
from the generator, the time and date will automatically be
restored from this clock.
•Ability to add extra displays.
•Graphing capability.
WIRELESS ADVANCED FEATURES
One of the most commonly used features on the device is
the ability to test the functions of the generator. The “TEST”
menu provides the option to remotely start, start and transfer,
and stop the generator. This feature only works when the
AUTO-OFF-MANUAL switch is set to AUTO and Utility voltage
is available.
Note: The remote cannot disable or prevent the Generator
from running; the only method to disable the generator
is by cycling the AUTO-OFF-MANUAL switch to the OFF
position.
Some operational rules apply when using the “TEST” feature
and are not due to product failure:
•The Generator can only be shutdown if it was started via the
remote. It will not respond to the command if running in a
Utility failure.
•When the command has been given for a start and transfer
to occur the Generator will stay running until the “STOP”
command has been given. The generator will then run for a
1 minute cool down period.
WIRELESS ADVANCED TROUBLESHOOTING.
Resynchronizing the Radio After Battery Disconnection or In the
Event of Loss of Communication
If the battery is ever disconnected from the generator, the radio
system will stop working and WILL NOT AUTOMATICALLY
resynchronize. To resynchronize the system, follow the steps
(similar to installation) shown below:
1. Ensure the display unit has working batteries fitted into it.
2. Take the display unit to the generator and turn the display
unit off using the slide switch on the side of the unit.
3. Open the generator lid and turn the generator Auto/Off/
Manual switch to the “Off” position.
GENERAL INFORMATION
PART 1
Section 1.9
Wireless Remote
