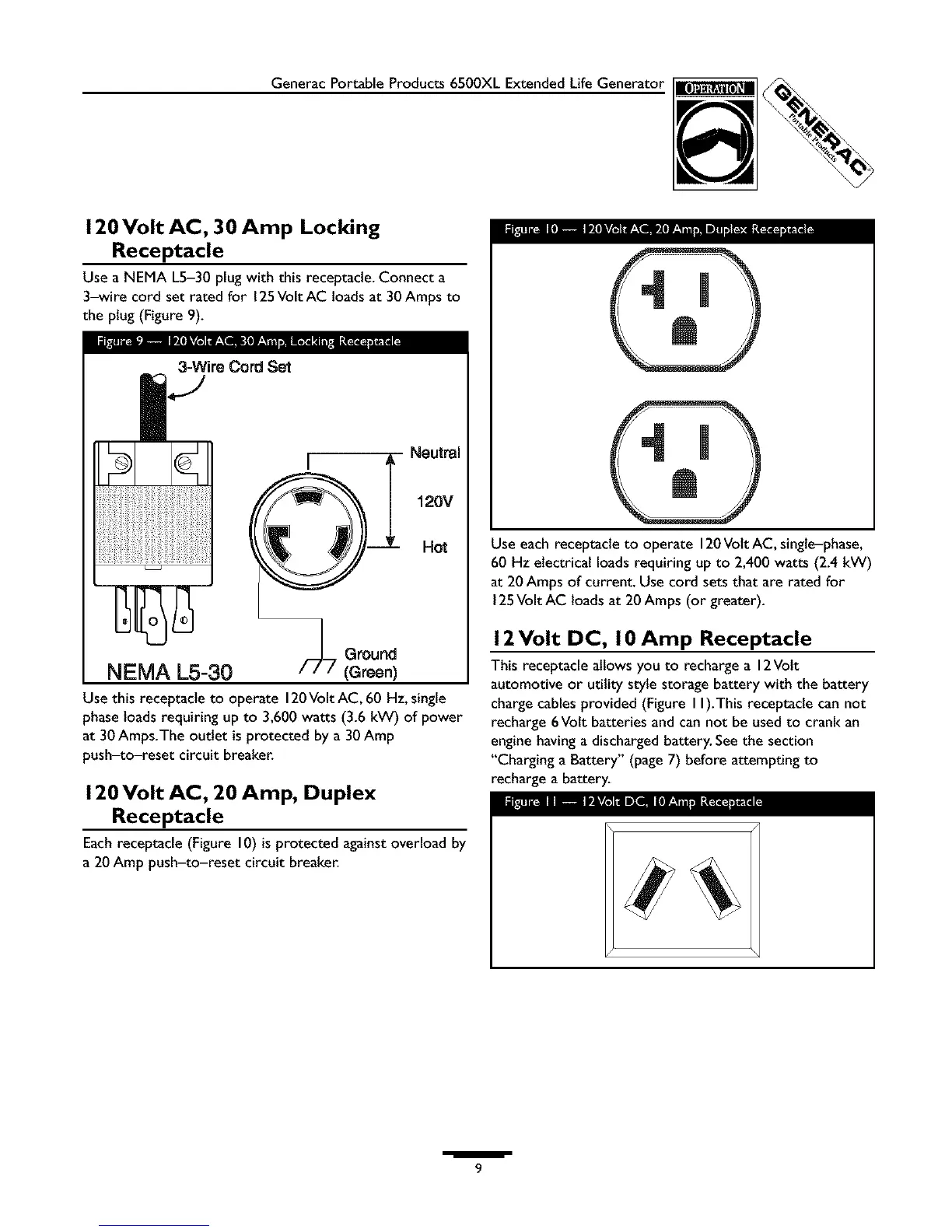

GeneracPortableProducts6500XLExtendedLifeGenerator
120 Volt AC, 30 Amp Locking
Receptacle
_m IEo_ IIP+To'kv_IHL+To + , u,, • , m
Use a NEMA L5-30 plug with this receptacle. Connect a
3-wire cord set rated for 125Volt AC loads at 30 Amps to
the plug (Figure 9).
3-Wire Cord Set
Neutral
____ 12ov
Hot
NEMA L5-30
,f__/ Ground
(Green)
Use this receptacle to operate 120VoltAC, 60 Hz,single
phaseloads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps.The outlet is protected by a 30 Amp
push-to-reset circuit breaken
120 Volt AC, 20 Amp, Duplex
Receptacle
_ lIB IIP&Vt_IIIDZi..O[I[__
Eachreceptacle (Figure 10) is protected againstoverload by
a 20Amp push-to-reset circuit breaker.
Use each receptacle to operate 120Volt AC, single-phase,
60 Hz electrical loads requiring up to 2,400 watts (2.4 kW)
at 20Amps of current. Use cord sets that are rated for
125Volt AC loads at 20Amps (or greater).
12 Volt DC, I 0 Amp Receptacle
This receptacle allows you to recharge a 12Volt
automotive or utility style storage battery with the battery
chargecables provided (Figure I I).This receptacle can not
recharge 6Volt batteries and can not be used to crank an
engine havinga discharged battery. Seethe section
"Charging a Battery" (page7) before attempting to
recharge a battery.
/
9
