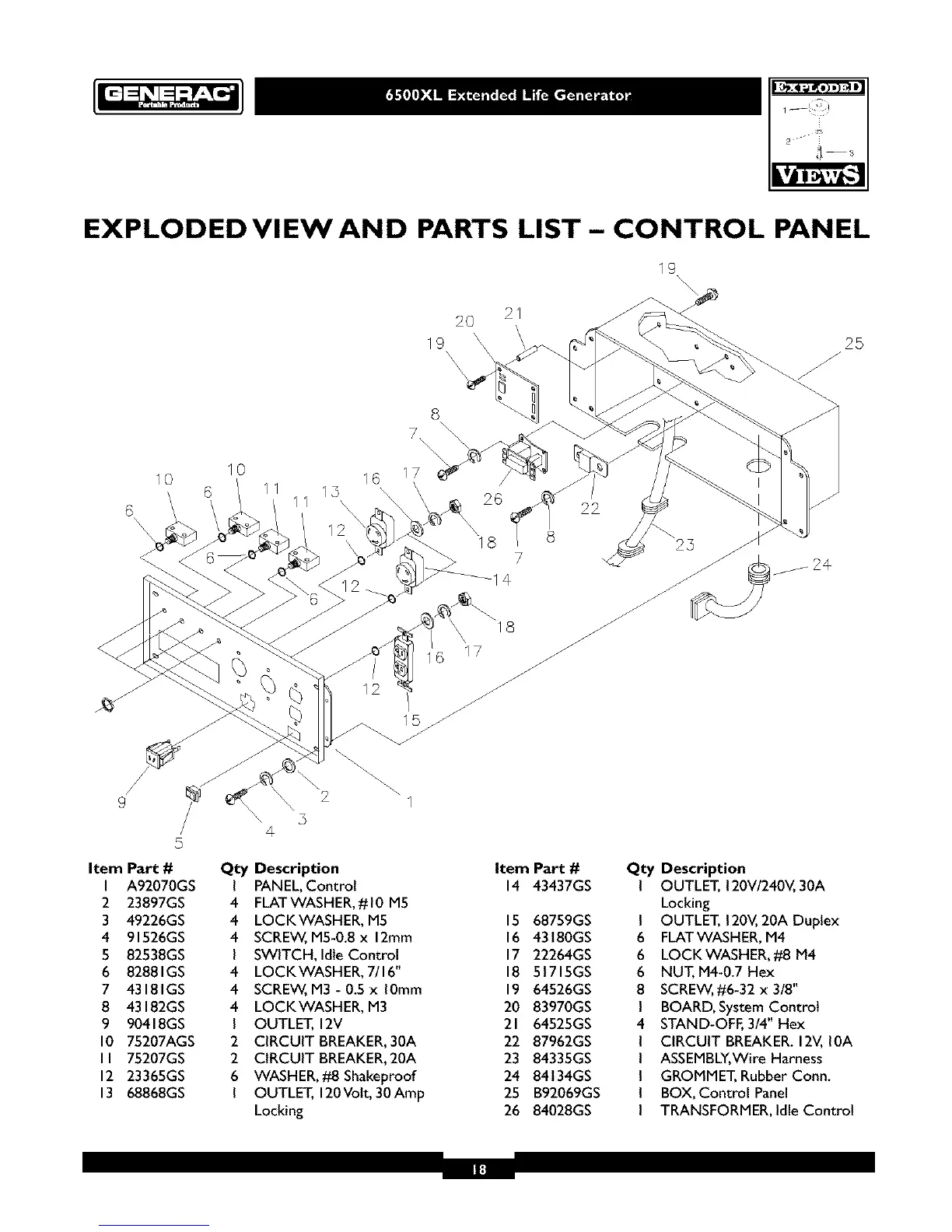

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
19
2O 21
19
\\\\_
8
10
6
9
6
10 16 17
15 \
11 \
2
Item Part # Qty Description
I A92070GS I PANEL,Control
2 23897GS 4 FLATWASHER,#10 M5
3 49226GS 4 LOCKWASHER, M5
4 91526GS 4 SCREW,M5-0.8 x 12mm
5 82538GS I SWITCH, Idle Control
6 82881GS 4 LOCK WASHER,7/16"
7 43181GS 4 SCREW,M3-0.5xl0mm
8 43182GS 4 LOCKWASHER, M3
9 90418GS I OUTLET, 12V
I0 75207AGS 2 CIRCUIT BREAKER,30A
I I 75207GS 2 CIRCUIT BREAKER,20A
12 23365GS 6 WASHER,#8 Shakeproof
13 68868GS I OUTLET, 120Vott,30Amp
Locking
26
22
18 8
7
Item Part #
14 43437GS
15 68759GS
16 43180GS
17 22264GS
18 51715GS
19 64526GS
20 83970GS
21 64525GS
22 87962GS
23 84335GS
24 84134GS
25 B92069GS
26 84028GS
25
Qty Description
I OUTLET, 120V/240V,30A
Locking
I OUTLET, 120V,20A Duplex
6 FLATWASHER, M4
6 LOCKWASHER,#8 M4
6 NUT, M4-0.7 Hex
8 SCREW,#6-32 x 3/8"
I BOARD, System Control
4 STAND-OFF,3/4" Hex
I CIRCUIT BREAKER.12V,10A
I ASSEMBLY,Wire Harness
I GROMMET,Rubber Conn.
I BOX, Control Panel
I TRANSFORMER,Idle Control
I|:!
