Generac Portable Products 7000EXL Extended Life Generator
10
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L5–30 plug with this receptacle. Connect a
3–wire cord set rated for 125 Volt AC loads at 30 Amps to
the plug (Figure 12).
Use this receptacle to operate 120 Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps.The outlet is protected by a 30 Amp
push–to–reset circuit breaker.
120 Volt AC, 20 Amp, Duplex
Receptacle
Each receptacle (Figure 13) is protected against overload by
a 20 Amp push–to–reset circuit breaker.
Use each receptacle to operate 120 Volt AC, single–phase,
60 Hz electrical loads requiring up to 2,400 watts (2.4 kW)
at 20 Amps of current. Use cord sets that are rated for
125 Volt AC loads at 20 Amps (or greater).
12 Volt DC, 10 Amp Receptacle
This receptacle allows you to recharge a 12 Volt
automotive or utility style storage battery with the battery
charge cables provided (Figure 14).This receptacle can not
recharge 6 Volt batteries and can not be used to crank an
engine having a discharged battery. See the section
“Charging a Battery” (page 8) before attempting to
recharge a battery.

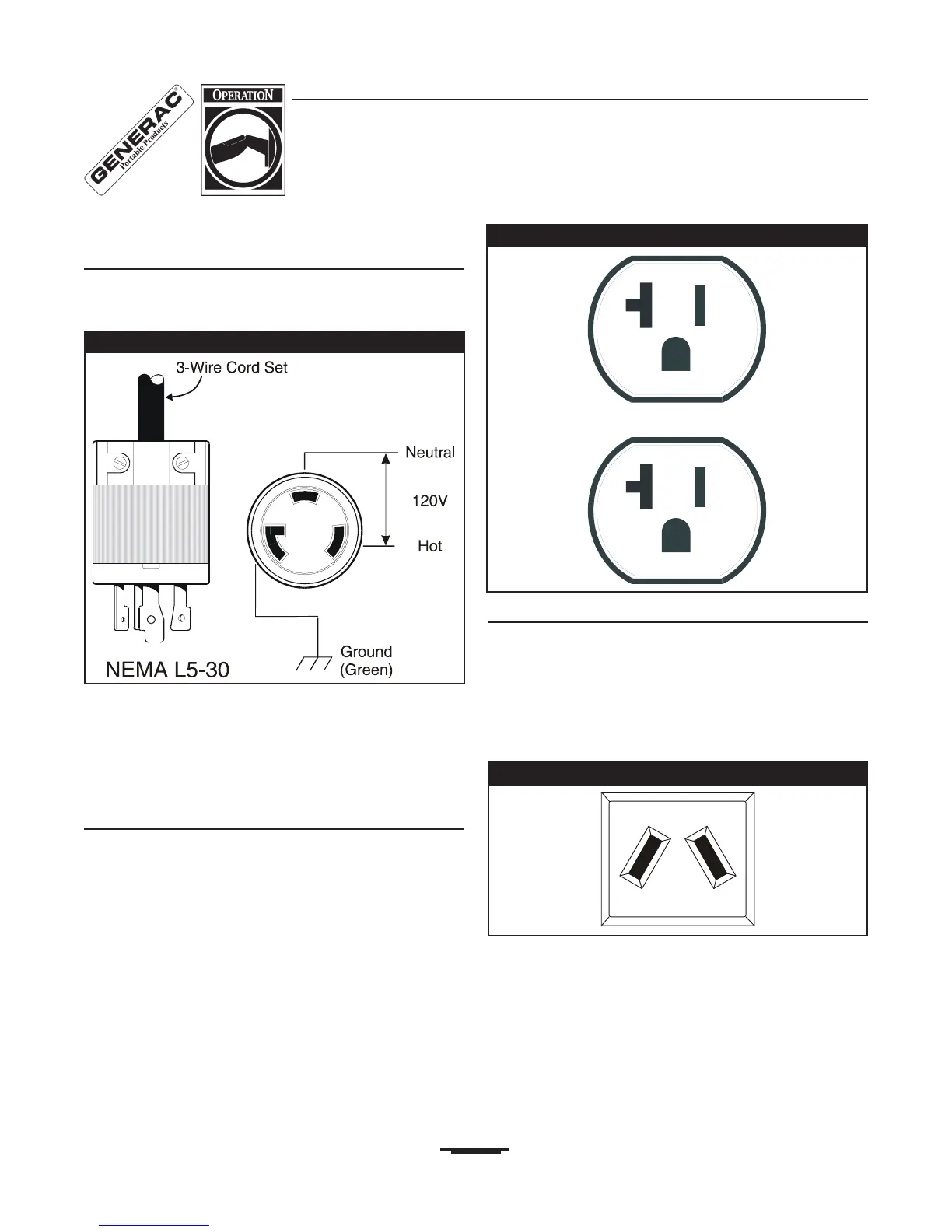

Figure 13 — 120 Volt AC, 20 Amp Receptacles
Figure 12 — 120 Volt, 30 Amp Receptacle
Figure 14 — 12 Volt DC, 10 Amp Receptacle
