Owner’s Manual for 60 Hz Air-Cooled Generators 5
Section 2: General Information
The Generator

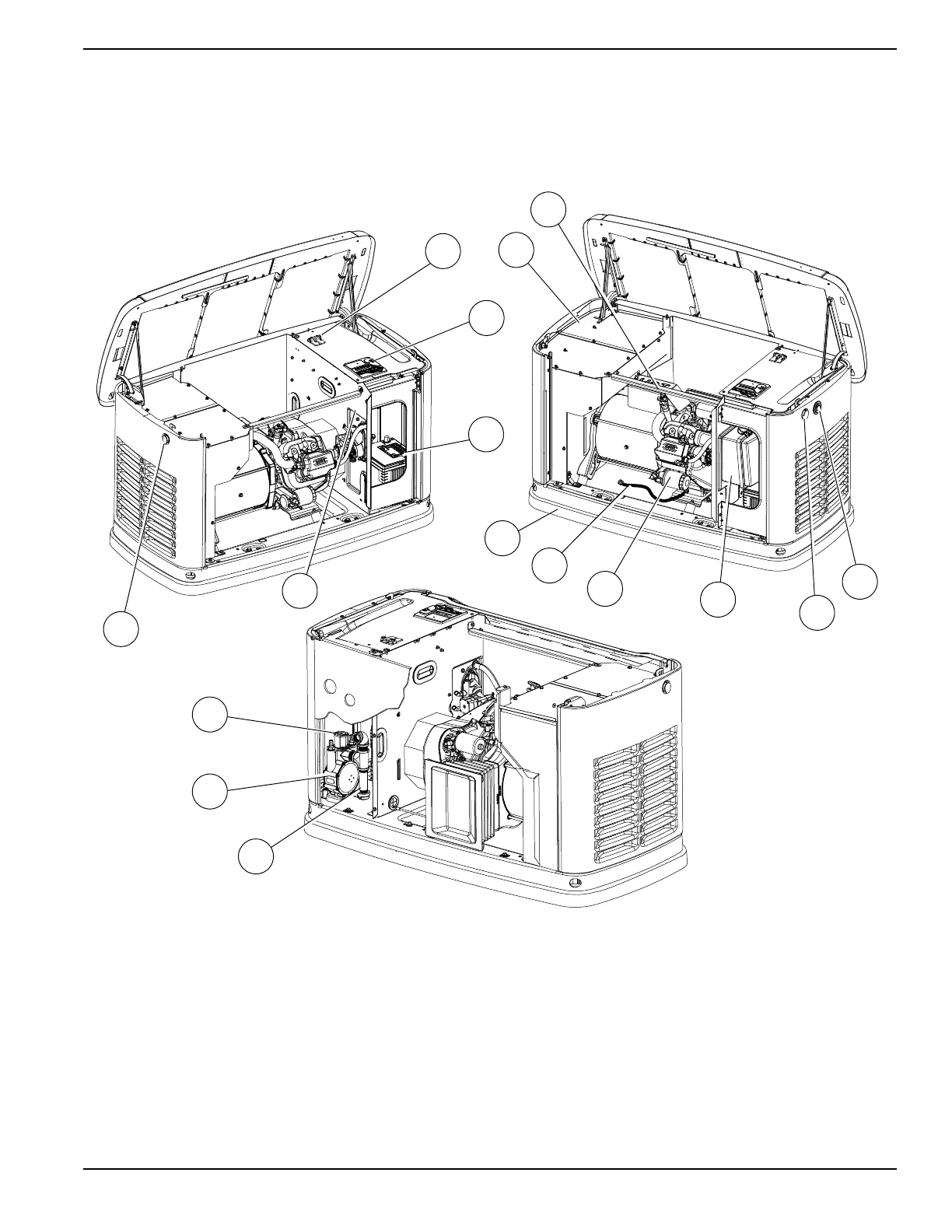

Figure 2-1. 9kW—Components and Control Locations
A. Lock with Cover E. Exhaust Enclosure J. Oil Filter N. Fuel Regulator
B. Main Line Circuit
Breaker (Generator
Disconnect)
F. Oil Fill Cap/Dipstick K. Oil Drain Hose O. Fuel Inlet
C. Control Panel G. Status LED Indicators L. Composite Base P. Data Plate Location
D. Battery Compartment
(Battery not supplied)
H. Airbox with Air Cleaner M. Sediment Trap
001818
