7
DIMENSIONS AND FEATURES
ITEM DESCRIPTION ITEM DESCRIPTION
1 CRANKCASE
2 CRANKCASE COVER
3 CYLINDER HEAD
4 CRANKSHAFT
5 CAMSHAFT
6 ROCKER COVER / BREATHER
7 CONNECTING ROD
8 PISTON RING SET
9 OIL PICK-UP ASSEMBLY
10 CRANKCASE COVER GASKET
11 PISTON
12 PISTON PIN
13 SNAP RING
14 TAPPET
15 PUSH ROD
16 OIL PUMP
17 CYLINDER HEAD GASKET
18 CRANKCASE COVER BOLT
19 ROCKER COVER GASKET
20 CYLINDER HEAD BOLT
21 ROCKER COVER SCREW
22 SPRING WASHER

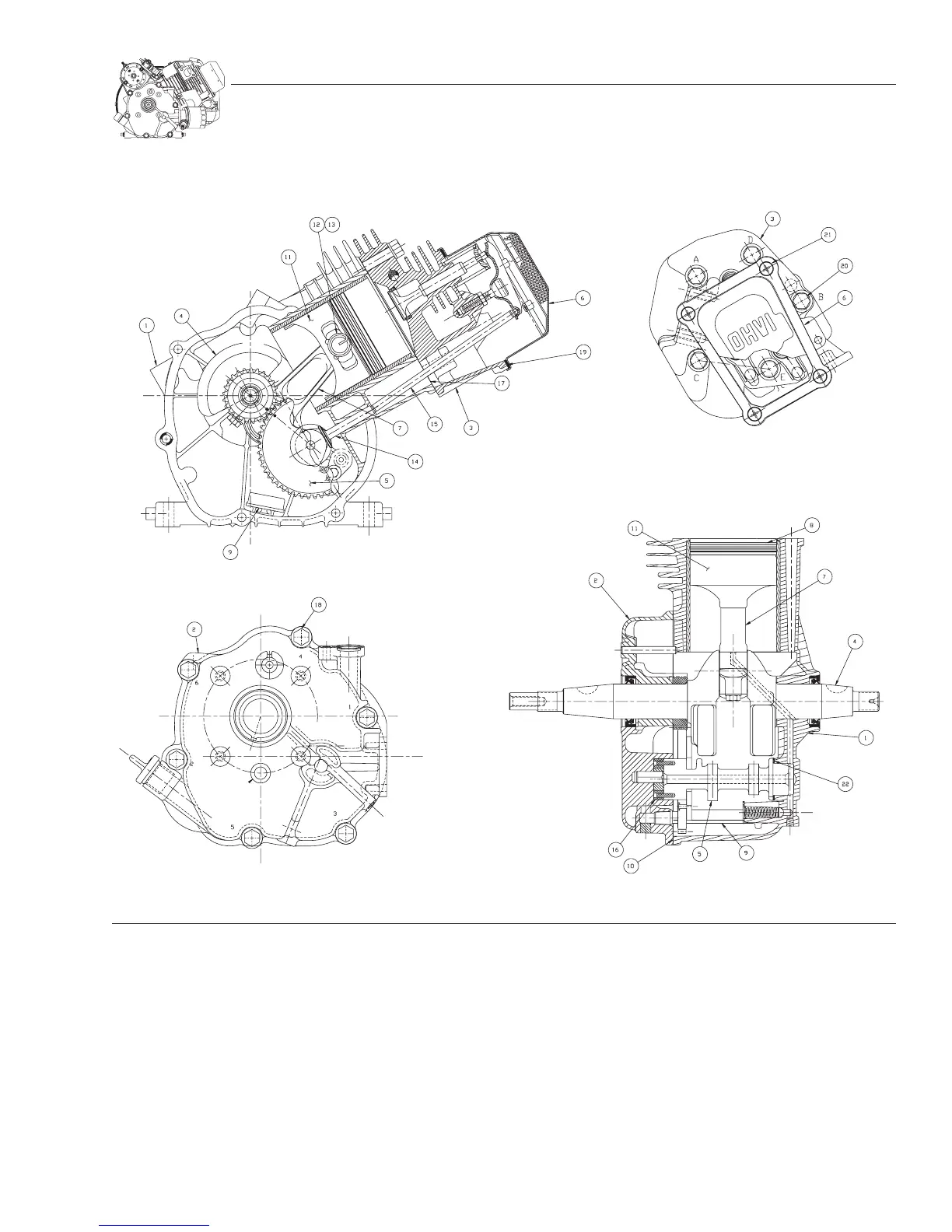

CUTAWAY VIEWS
